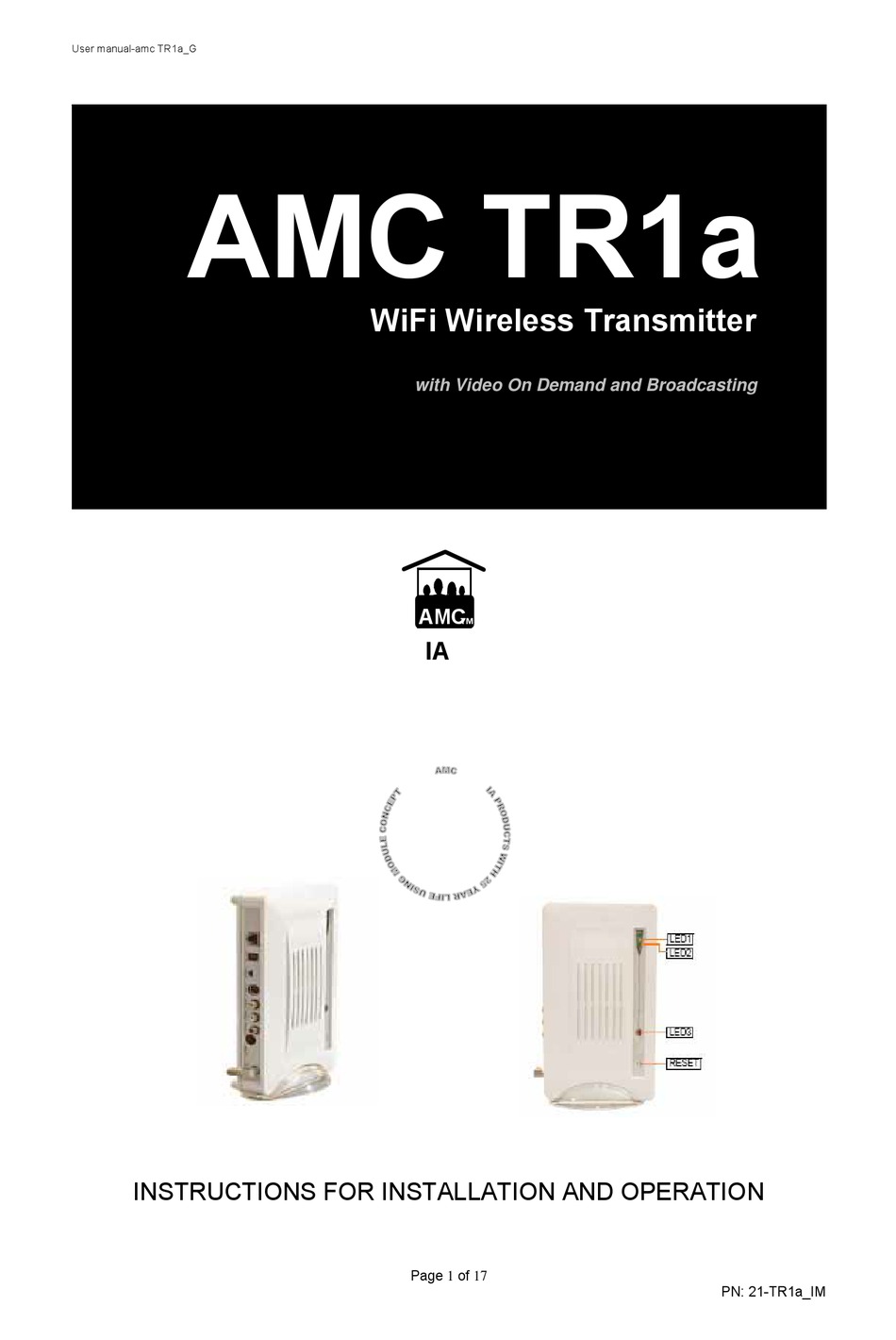

- Page 1 User manual-amc TR1a_G AMC TR1a WiFi Wireless Transmitter with Video On Demand and Broadcasting HOME Entertainment Center INSTRUCTIONS FOR INSTALLATION AND OPERATION Page 1 of 17 PN: 21-TR1a_IM...
- Page 2 User manual-amc TR1a_G Page 2 of 17 PN: 21-TR1a_IM...
- Page 3 • Video Scaler : 3D video image chip • The receiving units must be within approximately 65 - 100 feet (20 – 30 meters) of the TR1a to send and receive transmissions clearly. However, this distance will vary, depending on the surroundings. At home, it is best to set up the base station in a central location, allowing more even distribution of the wireless signal to all parts of the house.
- Page 4 User manual-amc TR1a_G REAR & FRONT SIDE PANELS / FRONT PANEL REAR & FRONT SIDE PANELS 1. “RJ-45” 2. “DC 12V” power input connector 3. “OFF/ON” Power Switch 4. “S VIDEO” input connector 5. “AV1” Composite Video input RCA connector (Yellow) 6.
-
Page 5: Front Panel
User manual-amc TR1a_G FRONT PANEL LED 1 (Orange) Wireless LED LED 2 (Green) Power LED LED 3 (Red) Tuner Status RESET Page 5 of 17 PN: 21-TR1a_IM... -
Page 6: Rear Side Panel
REAR SIDE PANEL 1. RJ-45 The RJ45 is for updating firmware of TR1a or hooking TR1a to Ethernet Network for Linking TR1a to all other equipment with IP addresses linked to the Ethernet Network. 2. “DC 12V” power input connector... -
Page 7: Front Side Panel
So, the Pre-Out is an option and will be installed for special designed projects and according to special orders only. you can use the switch to reset TR1a by following procedure, a. Switch off the TR1a b. Press and hold the reset button and then switch on TR1a c. -
Page 8: Remote Control
User manual-amc TR1a_G Remote Control (for using with receiving units like AMC i-M15a to control TR1a through IR receiver on receiving units and WiFi ) Page 8 of 17 PN: 21-TR1a_IM... - Page 9 2. Rescan for receiver to re-scan and locate all available TR1a and can select one preferable TR1a. 3. Video Select AV1, AV2 or S-video input of the TR1a selected 4. TV Select Cable/Broadcast TV input of the TR1a selected 5. Audio STEREO, SAP, MONO 6.
-
Page 10: Setup And Installation
SETUP and INSTALLATION Installing the TR1a For the best reception of the wireless signal to all areas of your house, it is best to install the TR1a near the center of your house. TR1a setup overview Connecting source devices to TR1a 1. - Page 11 3. Connect to DC12V Power supply and LAN through Ethernet RJ-45. Connect 12VDC/ 1.0A Power Adaptor to DC12V input connector. The RJ-45 on TR1a is for firmware updating. This function is an option for each special designed LAN as each proprietary system.
- Page 12 4. You will see Power on screen once turning i-M15a ON for the 1 Then i-M15a will scan for all available TR1a and indicated on the screen how many TR1a exist. (“ 0 or 1 or 2 or 3 or ... Transmitter Exist . (Press ▲/▼)” )
- Page 13 User manual-amc TR1a_G 9. When one i-M15a selected a TR1a and other i-M15a's want to connect to the same TR1a, the other i-M15a's will be under LISTENING mode. And the TR1a will be only controlled by the 1st i-M15a connected to it.
- Page 14 User manual-amc TR1a_G Page 14 of 17 PN: 21-TR1a_IM...
-
Page 15: Specifications
User manual-amc TR1a_G SPECIFICATIONS Wireless ... IEEE 802.11a 5 GHz Video Encoder ... MPEG2 video chip, DVD Quality Video Scaler ... 3D video image chip with Video on Demand and Broadcasting features Wireless IEEE 802.11a 5 GHz Wifi configuration Internal NTSC / PAL or SECAM / PAL dual band TV Tuner... - Page 16 User manual-amc TR1a_G Page 16 of 17 PN: 21-TR1a_IM...
- Page 17 User manual-amc TR1a_G WELTRONICS CORP. LONDON/L.A. AMC Web: http://www.amchome.com PN: 21-TR1a_IM Page 17 of 17 PN: 21-TR1a_IM...
