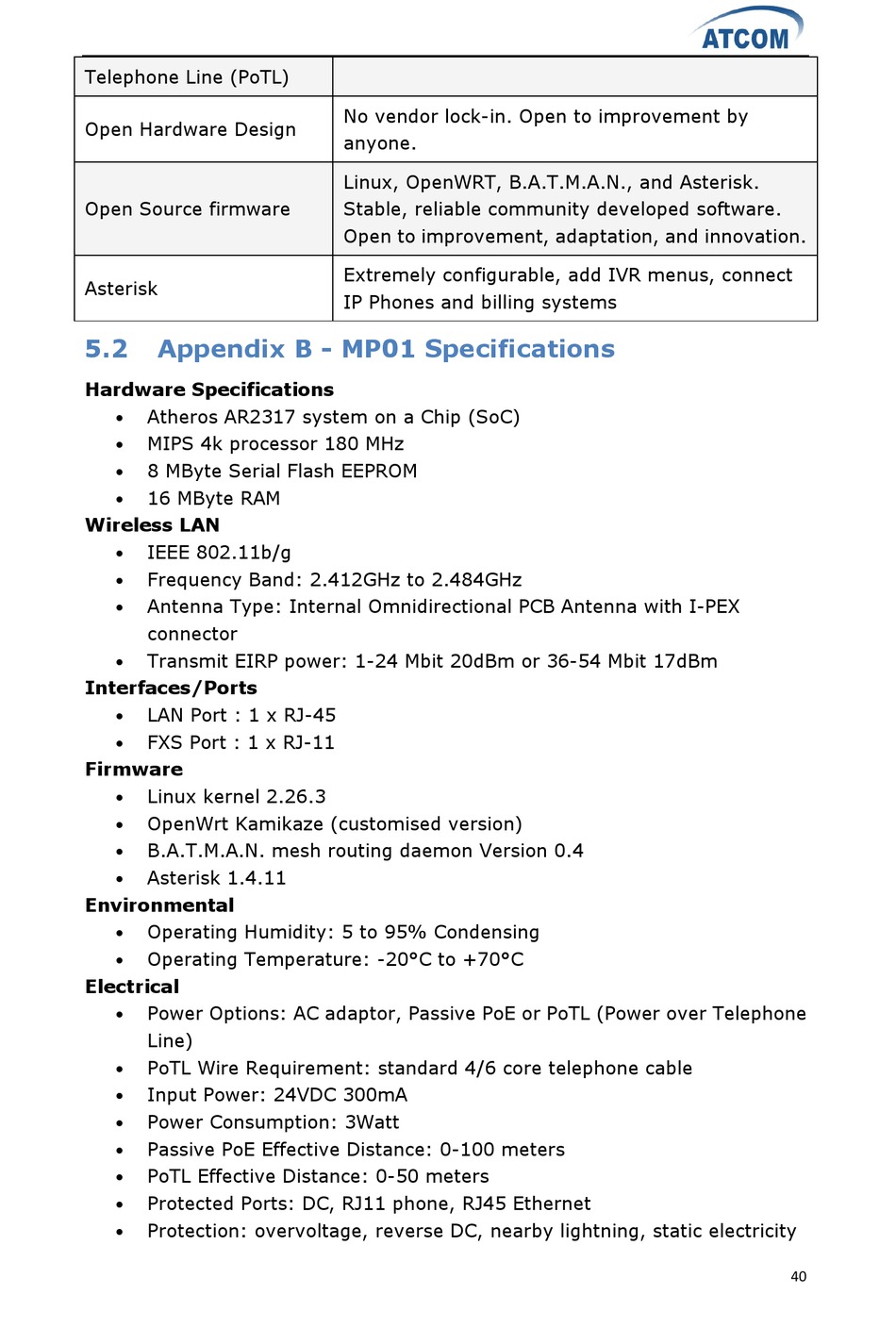

Appendix B - MP01 Specifications

Hardware Specifications
Atheros AR2317 system on a Chip (SoC)

MIPS 4k processor 180 MHz

8 MByte Serial Flash EEPROM

16 MByte RAM

Wireless LAN
IEEE 802.11b/g

Frequency Band: 2.412GHz to 2.484GHz

Antenna Type: Internal Omnidirectional PCB Antenna with I-PEX

connector
Transmit EIRP power: 1-24 Mbit 20dBm or 36-54 Mbit 17dBm

Interfaces/Ports
LAN Port : 1 x RJ-45

FXS Port : 1 x RJ-11

Firmware
Linux kernel 2.26.3

OpenWrt Kamikaze (customised version)

B.A.T.M.A.N. mesh routing daemon Version 0.4

Asterisk 1.4.11

Environmental
Operating Humidity: 5 to 95% Condensing

Operating Temperature: -20° C to +70° C

Electrical
Power Options: AC adaptor, Passive PoE or PoTL (Power over Telephone

Line)
PoTL Wire Requirement: standard 4/6 core telephone cable

Input Power: 24VDC 300mA

Power Consumption: 3Watt

Passive PoE Effective Distance: 0-100 meters

PoTL Effective Distance: 0-50 meters

Protected Ports: DC, RJ11 phone, RJ45 Ethernet

Protection: overvoltage, reverse DC, nearby lightning, static electricity

No vendor lock-in. Open to improvement by
anyone.
Linux, OpenWRT, B.A.T.M.A.N., and Asterisk.
Stable, reliable community developed software.
Open to improvement, adaptation, and innovation.
Extremely configurable, add IVR menus, connect
IP Phones and billing systems
