SmartNode 4900 Quick Start Guide

Connecting the SmartNode to the LAN

The 4900 Ethernet ports are auto MDX, therefore a straight-through wired cable can be used for host and
switch connections (see
PC or workstation
or Telnet
You can check the connection with the ping command to another host on the local LAN.
172.16.1.99(if-ip)[eth0]#ping <IP Address of the host>
Respectively from the host: ping 172.16.1.99
Note
You may now start to configure the SmartNode from scratch using the CLI commands, but we recommend
that you start your configuration from a template. See
your network, and loading it onto the SmartNode"
For a detailed description of the CLI refer to the SmartWare Software Configuration Guide (SCG) available on
online at: www.patton.com/smartnode.
Connecting the SmartNode to the LAN
figure 3).
LAN
Network
interface

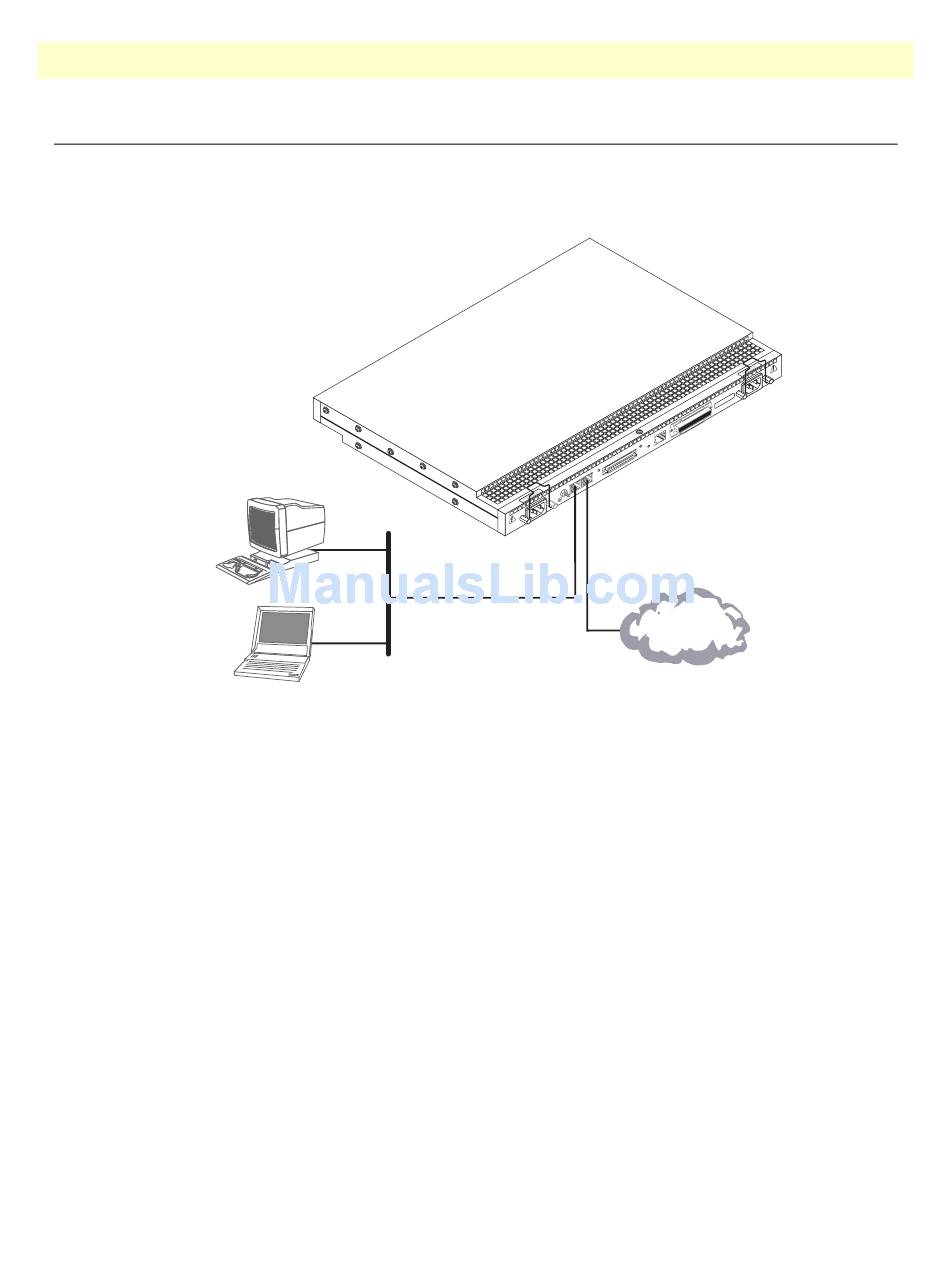

Figure 3. Connecting the SmartNode to the network
To ping outside your local LAN, you will need to configure the
default gateway.
