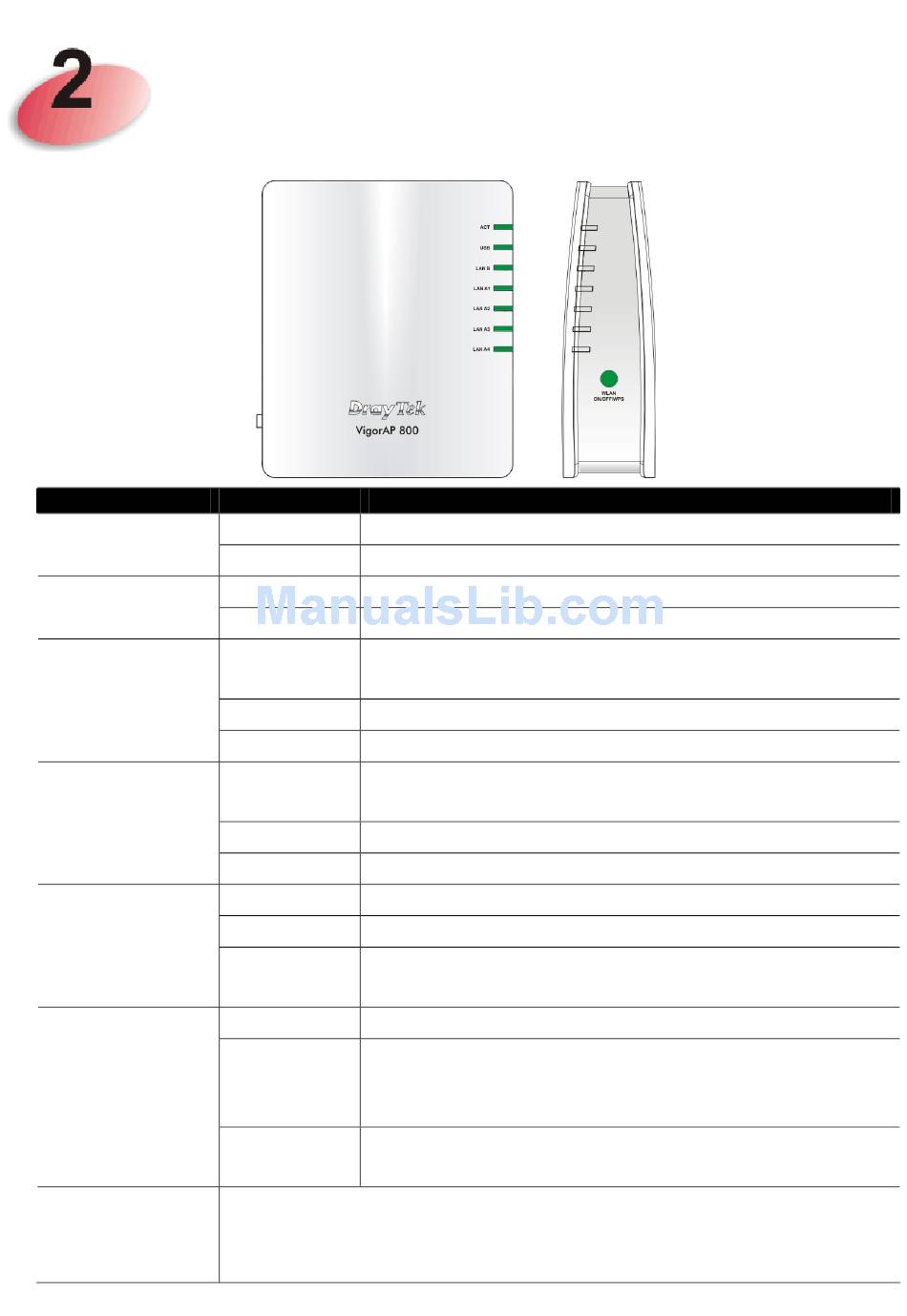

Descriptions of Components

LED
ACT
USB
LAN B
LAN A1 - A4
WLAN
(Green LED) on
WLAN button
WPS
(Orange LED)
on WLAN
button
WPS Button
Status Explanation
Off The system is not ready or is failed.
Blinking The system is ready and can work normally.
On A USB device is connected and active.
Blinking The data is transmitting.
On A normal connection is through its corresponding
port.
Off LAN is disconnected.
Blinking Data is transmitting (sending/receiving).
On A normal connection is through its corresponding
port.
Off LAN is disconnected.
Blinking Data is transmitting (sending/receiving).
On Wireless function is ready.
Off Wireless function is not ready.
Blinking Data is transmitting (sending/receiving).
(Green)
Off The WPS is off.
Blinking Blink with 1 second cycle for 2 minutes - - WPS is
(Orange) enabled and waiting for wireless client to connect
with it.
Blinking Data is transmitting (sending/receiving).
(Orange)
Press this button for 2 seconds to wait for client device making
network connection through WPS. When the orange LED lights
up, the WPS will be on.
