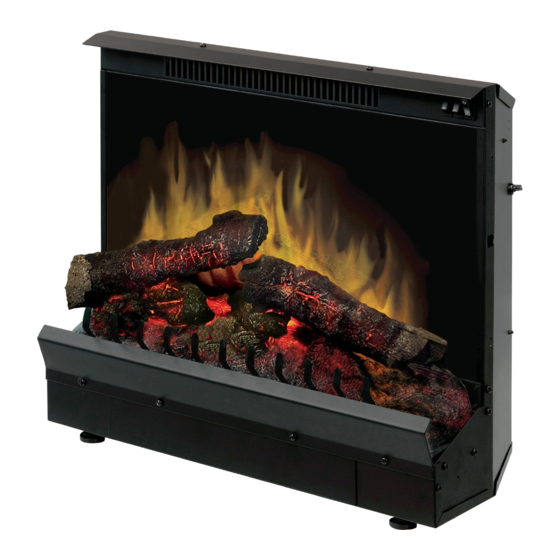

Dimplex DFI2309 Owner's Manual
Hide thumbs
Also See for DFI2309:
- Service manual (21 pages) ,
- Parts and service manual (17 pages) ,
- Owner's manual (16 pages)
Table of Contents
Advertisement
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
Owner's Manual
Model
DFI2309
DFI2310
7205650300R02
Advertisement
Table of Contents
Related Manuals for Dimplex DFI2309
Summary of Contents for Dimplex DFI2309
- Page 1 For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7205650300R02...
-
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. W ARNINg: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Welcome & Congratulations
Welcome & Congratulations Thank you and congratulations for choosing to purchase an electric fireplace from Dimplex, the world leader in electric fireplaces. Please carefully read and save these instructions. CAUTION: read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. -
Page 4: Important Instructions
To prevent a possible fire, do not electrical or mechanical adjustment, block air intake or exhaust in any or repair. manner. Do not use on soft surfaces, like a bed, where openings may ⑥ Do not use outdoors. become blocked. www.dimplex.com... -
Page 5: Save These Instructions
IMPORTANT INSTRUCTIONS ⑬ rated no less than 1875 Watts. All electrical heaters have hot and arcing or sparking parts inside. Do not ⑰ Do not burn wood or other use in areas where gasoline, paint, or materials in this fireplace. flammable liquids are used or stored or where the unit will be exposed to ⑱... - Page 6 This cause undesired operation of the equipment generates, uses and device. can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can www.dimplex.com...
-
Page 7: Fireplace Installation
Fireplace Installation Cap the top of the chimney WARNINg: The electric flue and close damper (if insert must be installed in an applicable) to prevent rain opening with the minimum from entering. dimensions 24 inches (61 cm) wide, 21.5 inches (54.6 cm) Plan your electric power high and 12 inches (30.5 cm) supply. - Page 8 (if applicable) and push the trim and or insert back until the trim is flat against the finished wall. WARNINg: The fireplace insert can be used with existing fireplace and screens. Due to the heat produced from the heater, existing www.dimplex.com...
-
Page 9: Operation
Operation Figure 1 C - High Heat Switch A - Three Position On/Off Switch The High Heat on/off switch supplies power to the heater fan The switch has two (2) on and the heater element, when the positions marked with “ I ” and switch is in the on position the “... -
Page 10: Battery Replacement
Battery Replacement Button To replace the battery: Button slide battery cover open on the hand held transmitter Battery Correctly install one (1) 12 Volt (A23) battery in the Battery battery holder. Cover Close the battery cover. www.dimplex.com... -
Page 11: Maintenance
Maintenance Remove the Log Set by lifting WARNINg: Disconnect straight up. power before attempting any maintenance or cleaning to NOTE: Log set fits tightly reduce the risk of fire, electric into firebox, some force may be shock or damage to persons. necessary to remove. - Page 12 Unit Storage Store the unit when not in use in a dry, dust free location with the power cord properly secured. Figure 3 Log Set Light Bulbs (2) Log Grate LED Wire Harness (DFI2310 only) www.dimplex.com...
-
Page 13: Warranty
This limited warranty does not apply Territories, Hawaii, or Alaska are to products that have been repaired not covered by this limited warranty. (except by Dimplex or its authorized Products purchased in these states, service representatives) or otherwise provinces, or territories are sold altered. - Page 14 What Dimplex will do in the event of and expense at Dimplex’s then- a defect current rates for such services. In the event a product or part •...
- Page 15 DAmAGE ArIsInG ouT oF or In ConnECTIon WITH THE sALE, mAInTEnAnCE, usE, or InABILITY To usE THE ProDuCT, EVEn IF DImPLEX or ITs DIrECTors, oFFICErs, or AGEnTs HAVE BEEn ADVIsED oF THE PossIBILITY oF suCH LossEs, CosTs or DAmAGEs, or IF suCH LossEs, CosTs, or DAmAGEs ArE ForEsEEABLE.
-
Page 16: Replacement Parts
3 Position on/off/remote ..... 2800071100RP Dimplex North America Limited 1367 Industrial Road Cambridge on Canada n1r 7G8 © 2011 Dimplex north America Limited www.dimplex.com...
