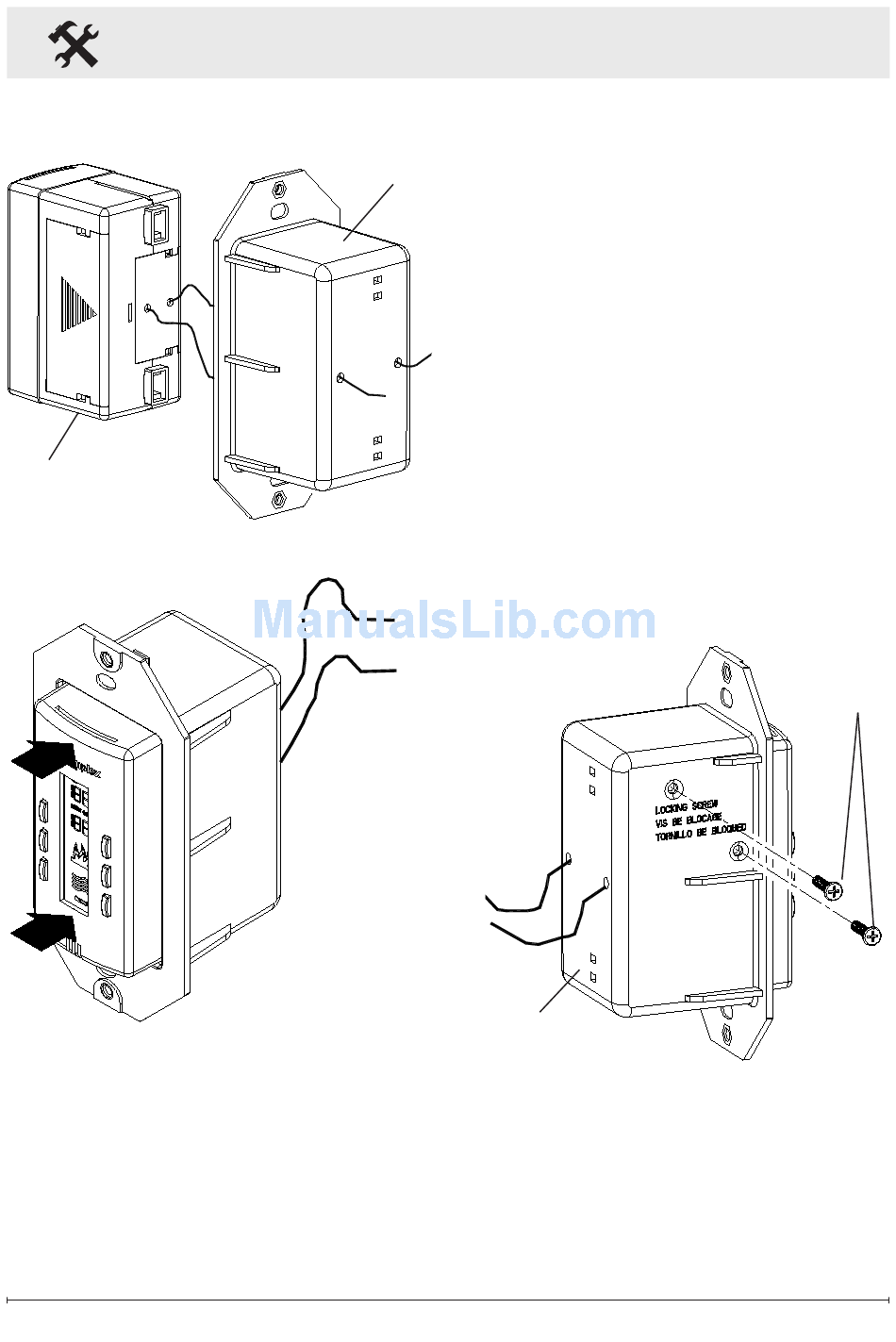

Wall Control Installation
Figure 12
Controller
Figure 13
Locking Screw Option (Figure 14)
Outer
Housing
To prevent tampering, damage,
and theft, it is suggested to
install the locking screws. Once
installed, the locking screws will
prevent the Controller from being
released from the Outer Housing
without being removed first from
the device box in the wall.
! NOTE: A Philips head
screwdriver will be required for
this step.
Figure 14
Outer
Housing
8. Using the wiring diagram
in Figure 15 as a guide,
make the appropriate wire
connections.
Locking
screws
