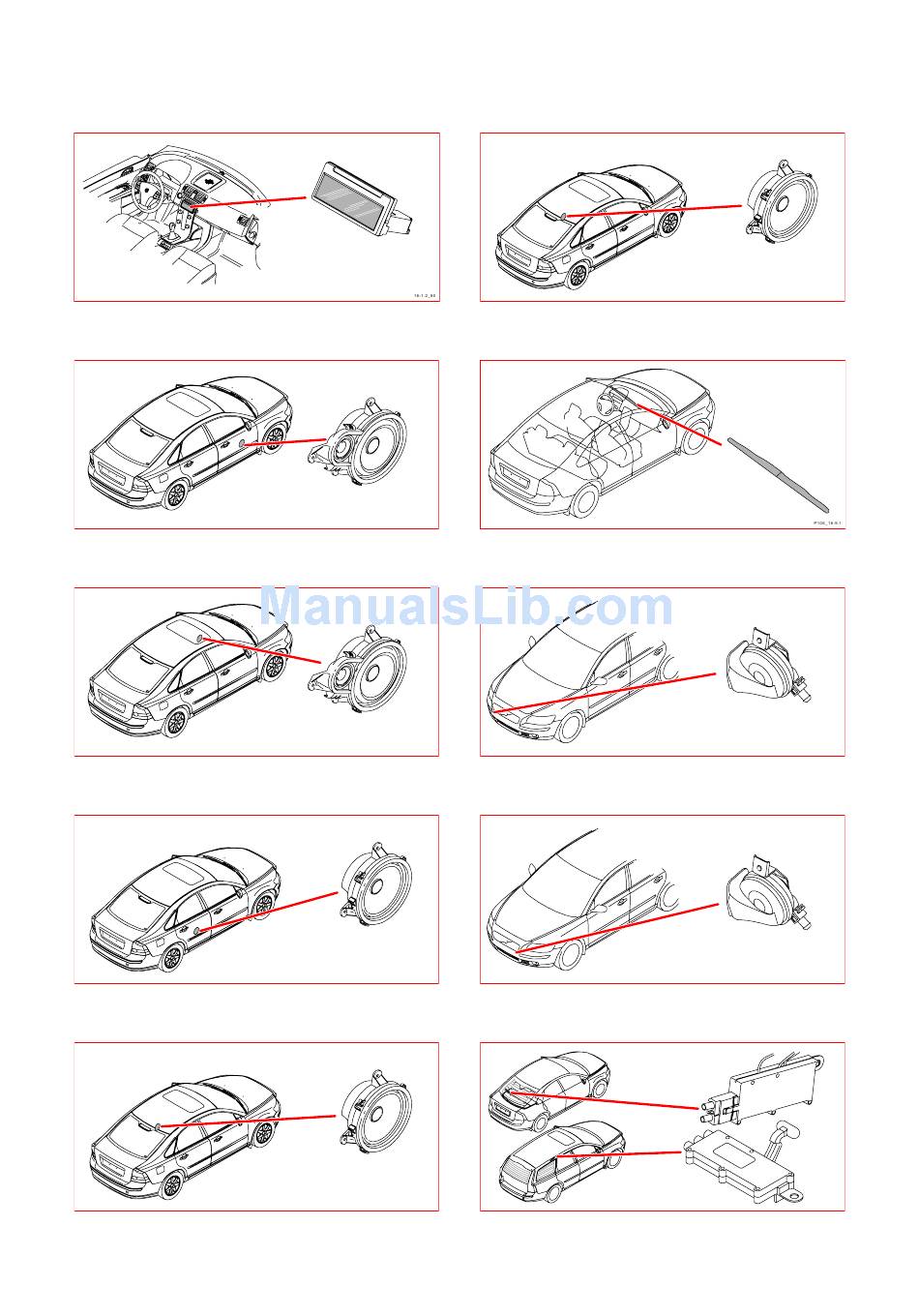

Component illustrations
16/1.2 - 16/16
16/1.2 Infotainment Control Module (ICM)
16/3
Speaker, passenger door
16/4
Speaker, driver's door
16/5
Speaker, right rear door
16/6
Speaker, left rear door
16/9
16/9.1 TMC antenna
P104_16-3
16/10 Horn 1
P104_16-4
16/11 Horn 2
P104_16-5
16/16 Window antenna amplifier
P104_16-6
TP3990202 S40 (04-)/V50 2006
Window antenna
P104_16-6
P104_16-10
P104_16-11
P104_16-16
