Vivotek FD8135H Architectural & Engineering Specifications

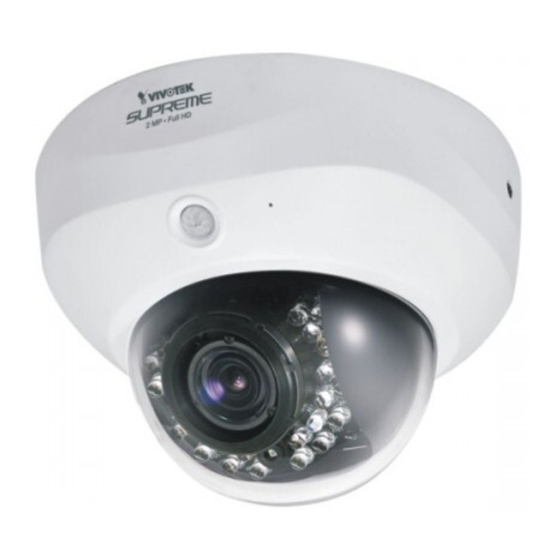

FD8135H Network Fixed Dome HD Camera
Value Series, H.264, 720P HD, P-iris, WDR Pro, PIR
Architectural and Engineering Specification
2.01 Manufacturer
A. VIVOTEK Inc.
6F, No.192, Lien-Cheng Rd.
Chung-Ho, New Taipei City, Taiwan 23553
Phone +886 8245-5282
Fax +886 8245-5532
Email sales@vivotek.com
B. Manufacturer shall warrant the camera to be free from defects in
material and workmanship for two years from the purchase date.
2.02 General Network Camera Descriptions
A. The product represents the next-generation in video quality in network
cameras. With its 1 Megapixel resolution and built-in removable IR-Cut
Filter, users will be able to experience the utmost in picture clarity.
It is also possible to transmit dual video streams in H.264/MPEG-4
and/or MJPEG formats for versatile applications.
B. Advance Audio Codec (AAC) in the camera helps to provide CD quality
for you aural applications with lowest bit-rate possible. Built-in
GSM-ARM codec provides best compatibility for aural-visual
application in cell phones, and thus best 3GPP compliance. G.711 codec
supported is almost compatible with any software you found.
C. The camera has a built-in web server for users to configure the camera
to meet different purposes. It is IEEE 802.3af compliant
Power-over-Ethernet (Class 3) ready, and with such feature the
installation can be very convenient.
D. The camera has removable ICR-cut filter and IR illuminator which
supports up to 20M far.
2.03 General Camera Requirements
A. The camera shall incorporate a progressive scan CMOS imager with a
1/3"-inch optical format, not less than 1280(H) x 800(V) pixels and
shall have a removable infrared cut-off filter.
B. The image resolution shall be no less than 1280(H) x 800(V) pixels.
Users can specify many resolutions smaller than default for a specific
purpose.
C. The camera shall produce a frame rate of 30 frames per second (fps)
at resolution 1280(H) x 800(V) 16:10.
D. The minimum illumination required to produce an image shall be
approximately 0.8 lux @ F1.2, 50 IRE (Color), and 0.001 lux @ F1.2,
50 IRE (B/W).
E. The camera shall provide automatic white balance, automatic exposure,
automatic gain control, automatic electronic shutter, backlight
