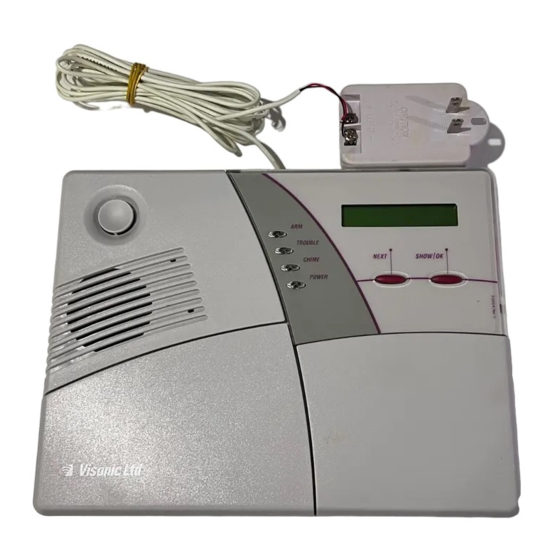

POWERMAX
Fully Supervised Wireless Alarm Control System

TABLE OF CONTENTS

1. INTRODUCTION............................................................2
2. SPECIFICATIONS .......................................................2
2.1 General Data...........................................................2
2.2 RF Section ..............................................................2
2.3 Electrical Data.........................................................2
2.4 Communication .......................................................3
2.5 Physical Properties .................................................3
3. INSTALLATION............................................................3
3.1 Unpacking the Equipment.......................................3
3.2 Supplying Power to the Unit ...................................3
3.3 Programming ..........................................................3
3.4 Mounting .................................................................3
3.5 Wiring......................................................................3
3.6 Connecting the AC Transformer.............................3
3.7 PowerMax-Compatible Detectors...........................5
3.8 PowerMax-Compatible Transmitters ......................5
3.9 Mounting the RS232 Module ..................................6
3.10 Installing an Optional X-10 Siren ..........................6
The PowerMax control panel is supplied with 3 instruction manuals:
Installation Instructions (this manual - for your exclusive use)
Programming Guide (for your exclusive use)
User's Guide (for your use during installation only. Must be handed over to the master user after testing the system).
Appendices A and B to the installation instructions will help you prepare an installation plan. Please take time to fill out the
forms - your job will become much easier and confusion will be prevented. Filling out the forms will also help you create a
list of detectors and transmitters that must be obtained for the particular application. Compatible detectors and
transmitters are listed and described briefly in Paragraphs 3.8 and 3.9 of this manual.
Remember - it is advisable to power up the control panel temporarily after unpacking and program it on the work bench, in
accordance with the installation plan. Paragraph 3.3 of this manual refers you to the programming guide.
The programming flow charts in the programming guide show all options available for each parameter. Factory defaults
are marked with a dark box to their right, and other options (that can be selected instead) are marked by clear boxes. This
method allows you to put a checkmark in the appropriate clear box whenever you deviate from the factory defaults.
To increase the backup time provided by the Ni-Cd battery (which is 4 -6 hours), we recommend the use of 6 size AA Ni-
Mh cells with a capacity of 1600 mAh (produced by GP). Under AC failure conditions, these batteries provide up to 20-
hour backup with no alarms, and up to 16 hours if an alarm occurs.
Although setting the correct time and date is one of the user tasks, we recommend that you set the time and date in the
course of programming. Access to the "User Settings" is possible through item 9 on the installer's menu (see User's
manual for exact procedure).
When you are through programming, proceed to install the system as detailed in the Installation Instructions, from
paragraph 3.4 onward.
The installer should verify line seizure. Be aware of other phone line services such as DSL.
DE5450
4. TESTING PROCEDURES............................................6
5. MAINTENANCE ...........................................................7
TRANSMITTER ASSIGNMENTS ......................................8
APPENDIX B. X-10 UNIT ASSIGNMENTS.......................9
FCC STATEMENTS ........................................................10
DECLARATION OF CONFORMITY................................11
MESSAGE TO THE INSTALLER

Installation Instructions

4.1 Preparations ...........................................................6
4.2 Diagnostic Test.......................................................6
4.3 Keyfob Transmitter Test .........................................7
4.4 Appliance ON/OFF Test .........................................7
4.5 Emergency Transmitter Test ..................................7
5.1 Dismounting the Control panel ...............................7
5.2 Replacing the Backup Battery ................................7
5.3 Fuse Replacement .................................................8
5.4 Replacing/Relocating Detectors .............................8
A.1 Detector Deployment Plan .....................................8
A.2 Keyfob Transmitter List ..........................................9
A.3 Emergency Transmitter List ...................................9
A.4 Non-Alarm Transmitter List ....................................9
1

Advertisement

Table of Contents
loading

Related Manuals for Visonic POWERMAX

Summary of Contents for Visonic POWERMAX

  • Page 1: Table Of Contents

    FCC STATEMENTS ............10 DECLARATION OF CONFORMITY........11 MESSAGE TO THE INSTALLER The PowerMax control panel is supplied with 3 instruction manuals: Installation Instructions (this manual - for your exclusive use) Programming Guide (for your exclusive use) User’s Guide (for your use during installation only. Must be handed over to the master user after testing the system).

  • Page 2: Introduction

    1. INTRODUCTION • The PowerMax is a user and installer-friendly, 30-zone fully- Diagnostic test provides visual and audible indication of supervised wireless control panel. The system is designed the signal level of each detector. • to function in a way that appeals to the user but also offers Remote control and status verification from distant features that make installers’...

  • Page 3: Communication

    All terminals and connectors are accessible within the installation, with all detectors and the control panel on a opening at the back of the PowerMax. All screw terminal work bench. It is therefore necessary to power up the blocks can be pulled out, wired appropriately and plugged PowerMax temporarily from the external power trans- back in.
  • Page 4 Open Release battery Remove battery Remove bracket keypad area cover area cover locking screw cover BATTERY AREA COVER SLOT Screw holes Special plastic washer Screw holes Special plastic washer Mark and drill 4 holes in Push the bracket mounting surface. Insert as shown and wall anchors and fasten the then remove it...

  • Page 5: Powermax-Compatible Detectors

    The wireless passive infrared (PIR) motion detectors used in the system are of the PowerCode type. The PowerMax C. MCT-100 Wireless Adapter for Wired Detectors is capable of “learning” each detector’s identification code...

  • Page 6: Mounting The Rs232 Module

    The PowerMax system is compatible with multi-button and F. MCT-211: Water-proof, wrist- single button key-ring and hand-held transmitters that use worn PowerCode transmitter. PowerCode and CodeSecure coding methods. Can be enrolled to perform Multi-button PowerCode transmitters transmit the same emergency non-alarm code each time the same button is pressed.

  • Page 7: Keyfob Transmitter Test

    Press the DISARM conducting this test, or just disconnect the telephone line ) key immediately to disarm. from the PowerMax during the test, to prevent false alarms. 5. MAINTENANCE 5.1 Dismounting the Control Panel...

  • Page 8: Fuse Replacement

    Extract the suspected fuse and check it visually. In most cases, a defective fuse can be identified by the broken The PowerMax has a fuse which can burn out: conductor within the glass cylinder. If in doubt, test the Siren Fuse - 0.5 A, time delay type, per IEC127-3 (in continuity of the fuse with an ohmmeter.

  • Page 9: A2. Keyfob Transmitter List

    A2. Keyfob Transmitter List Transmitter Data AUX button Assignments Type Holder Status or Arming PGM Control X-10 Unit Control “instant” Indicate the desired Indicate whether Mark the boxes of the X-10 units to be function (if any) - see Para. this output will be activated - see Section 7 in the 5.16 in the programming...

  • Page 10: Fcc Statements

    Federal Communications Commission (FCC) Statements FCC PART 15 STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 11: Declaration Of Conformity

    DE5450...
  • Page 12 VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788 VISONIC INC. (U.S.A.): 65 WEST DUDLEY TOWN ROAD, BLOOMFIELD CT. 06002-1911. PHONE: (860) 243-0833, (800) 223-0020. FAX: (860) 242-8094 VISONIC LTD. (UK): FRASER ROAD, PRIORY BUSINESS PARK, BEDFORD MK44 3WH. PHONE: (0870) 730-0800 FAX: (0870) 730-0801 : www.visonic.com...
