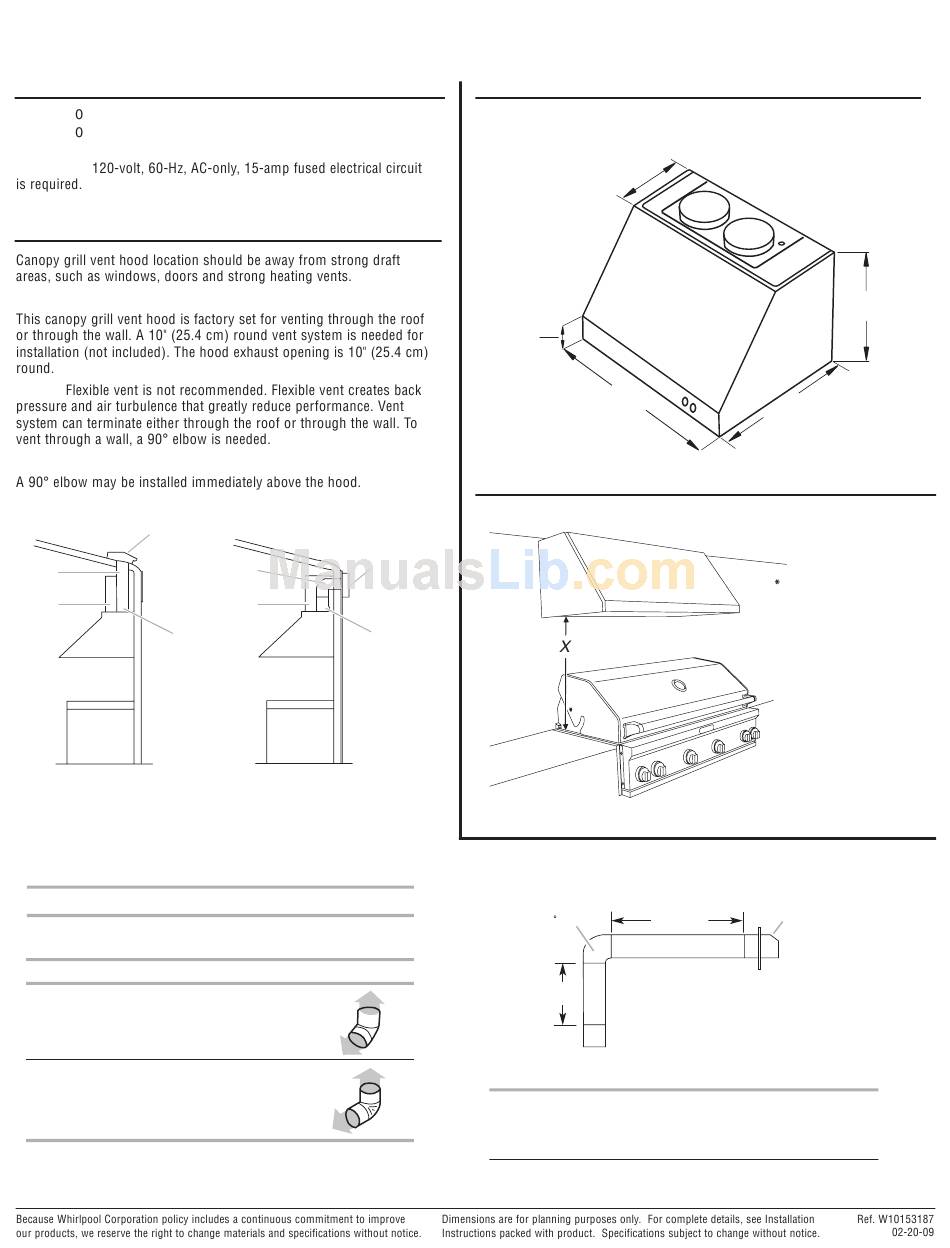

Amana UXG7360V Product Dimensions

Wall-Mount Canopy Grill Vent Hood
PRODUCT MODEL NUMBERS
UXG736 V
UXG748 V
Electrical:
LOCATION REQUIREMENTS
Venting methods
NOTE:
Rear discharge
Roof Venting
C
B
A
D
A. Optional decorative duct cover
B. 10" (25.4 cm) round vent
C. Roof cap
D. 10" (25.4 cm) round vent
transition
Calculating Vent System Length
To calculate the length of the system you need, add the
equivalent feet (meters) for each vent piece used in the system.
Vent Piece
45° elbow
90° elbow
Maximum equivalent vent length is 35 ft (10.7 m).
Wall Venting
C
B
A
D
A. Optional decorative duct cover
B. 10" (25.4 cm) round vent and
elbow
C. Wall cap
D. 10" (25.4 cm) round vent
transition
10" (25.4 cm) Round
2.5 ft
(0.8 m)
5.0 ft
(1.5 m)
M
PRODUCT DIMENSIONS
Vented installations
(30.5 cm)
4"
(10.2 cm)
30" (76.2 cm)
36" (91.4 cm)
48" (121.9 cm)
INSTALLATION DIMENSIONS
A
X
M
Example vent system
90 elbow
2 ft
(0.6 m)
The following example falls within the maximum recommended
vent length of 35 ft (10.7 m).
1 - 90° elbow
1 - wall cap
8 ft (2.4 m) straight
Length of system
12"
24"
(61.0 cm)
NOTE: The grill vent hood
duct cover is designed to add
12" (30.5 cm) to meet the
ceiling or soffit height.
Depending on your model,
order:
Part Number W10153151 for
30" (76.2 cm) models,
Part Number W10153152 for
36" (91.4 cm) models,
Part Number W10153153 for
48" (121.9 cm).
IMPORTANT:
Minimum distance "X":
30" (76.2 cm)
Suggested maximum
distance "X": 36" (91.4 cm)
Wall cap
6 ft (1.8 m)
= 5.0 ft (1.5 m)
= 0.0 ft (0.0 m)
= 8.0 ft (2.4 m)
= 13.0 ft (3.9 m)
18"
(45.7 cm)
