Summary of Contents for Kicker DS35

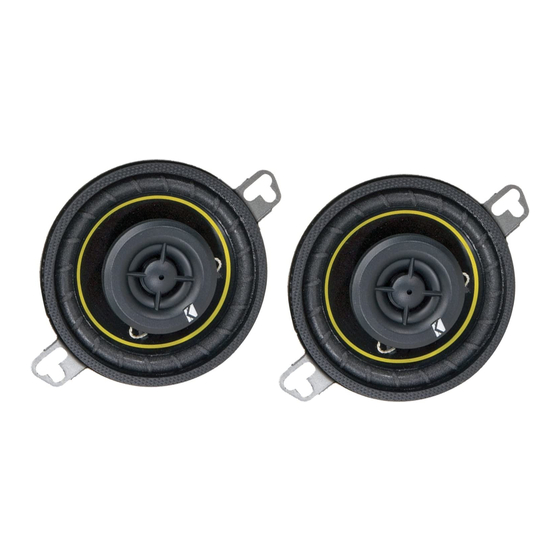

- Page 2 DS35 / DS40 / DS46 / DS525 / DS60 / DS68 / DS693 Models: Attention: Please record your purchase information in the area below. We recommend attaching the original sales receipt to this manual for future reference. If you require service on this speaker during the...
- Page 3 Features ™ CIMP (Curvilinear Injection-Molded Polypropylene Woofer Cones) is a high performance composite, which remains rigid, minimizes cone flex and lowers harmonic distortion. The CIMP™ consists of a one-piece, injection-molded polypropylene material that moves as a piston, exhibiting power and control. New Enhanced BAM (Basket and Motor) Assembly utilizes a high strength steel basket, features a low-profile open design, and provides a solid foundation for the...
- Page 4 Tweeter Size, in (cm) Tweeter Design Tweeter Diaphragm Material Tweeter Magnet Material Tweeter Protrusion, in (cm) Midrange Size, in (cm) Midrange Design Midrange Cone Material Grills Included DS35 DS40 2 - Way 2 - Way 6-15 6-25 80-20k 60-20k 1 5/8 (4.1) 1 13/16 (4.6)
- Page 5 Model: Speaker Design Rated Impedance [Zn], ohm DC Resistance, ohm Sensitivity [SPLo], dB @ 1W, 1m Power Range, Watts RMS Peak Power Handling, Watts Effective Frequency Range, Hz Top-Mount Depth, in (cm) Bottom-Mount Depth, in (cm) Mounting Hole Diameter, in (cm) Frame Diameter, in (cm) Woofer Size, in (cm) Woofer Cone Material...
-
Page 6: Installation
Installation Your Kicker DS-Series drivers are specifically designed for mounting in free-air applications. The speakers do not require a sealed enclosure for optimum performance. It is important to isolate the sound coming off the front of the driver from the sound radiating from the back of the driver. - Page 7 If custom door mounting locations for the DS-Series Coax Speakers are desired, be careful to avoid interference from the window and door lock mechanisms. The first step is to find a location on the door panel that will accept the dimensions of the speaker. Then remove the door panel from the door, and check for operational clearance of the window.
-
Page 8: Wiring Options
Wiring Options Wiring Hooking up the supplied wires to your Kicker DS-Series Coax Speakers is easy. The end of each wire is terminated with a large and a small connector. The larger connector is crimped to the gray wire and connects to the larger positive terminal of the speaker. The smaller connector is crimped to the black wire and connects to the smaller negative terminal of the speaker. - Page 9 Wiring Options Wiring two DS-Series Coax Speakers to a single channel Modern high performance coaxial speakers have a lower DC Resistance than what used to be available. The Kicker DS-Series Coax Speakers are rated at four ohms and work with any source unit or amplifier designed to operate at a four ohm load. If you want to use two DS-Series Coax Speakers on each channel of your source unit or amplifier wire the speakers in series, as shown below.
- Page 10 Acoustics LIMITED WARRANTY Kicker warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) MONTHS from date of original purchase with receipt. When purchased from an Authorized KICKER Dealer it is warranted for ONE (1) YEAR from date of original purchase with receipt.
- Page 11 Notes Tech Lines DS-Series Coax Speakers...
