Owner's Manual
Manual del Propietario
Manuel d'utilisatio
Benutzerhandbuch
KS COMPONENTS
Altavoz Componentes KS
KS Komponenten-System
Haut-parleurs Composants KS

Advertisement

loading
Need help?

Need help?

Do you have a question about the 51KSS36-25XO and is the answer not in the manual?

Questions and answers

Summary of Contents for Kicker 51KSS36-25XO

  • Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisatio Benutzerhandbuch KS COMPONENTS Altavoz Componentes KS KS Komponenten-System Haut-parleurs Composants KS...
  • Page 2 Designed for versatile applications without sacrificing sound quality or aesthetics, we hope you have the chance to combine these new, upgraded audiophile components with our all-new KEY Smart Amplifiers and a KICKER sub for an audio experience you won’t forget! English...
  • Page 3: Installation

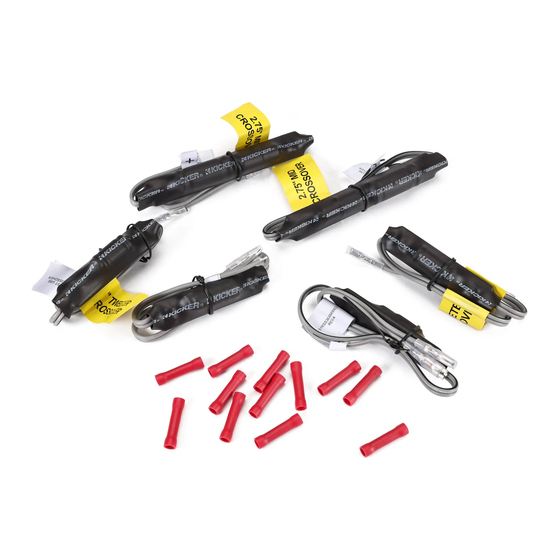

    The connectors are mated so they will only connect to the correct circuit. Match the labels of the crossover to the correct speaker. Tweeter - 51KSS36-25XO Mid Tweeter - 51KSS365-27XO or 51KSS369-27XO Woofer - 51KSS36-6569XO English...
  • Page 4 Connect the crossover input to your source unit or amplifier using the included butt connectors. Pro Tip: You’re a KICKER KX amplifier and a few cables away from a full system upgrade that will dominate any factory system! KICKER line of amplifiers make it easy to upgrade to solid bass with your existing or stock source unit.
  • Page 5: Speaker Mounting

    Speaker Mounting If you are replacing factory speakers in their original locations, you may need to use the included multi- purpose adapter, or modify it as such that it will fit your required screw patterns. In most cases, you will re-use the factory mounting hardware or screws. In some applications, the adapter will clip to the mounting panel on one side.
  • Page 6 The multi-bracket adapter will help accommodate the KSS speakers in factory or custom locations. For factory locations, find the bolt pattern which matches your factory speaker. You may need to cut off parts or otherwise modify these adapters to fit your vehicle or application by removing tabs.
  • Page 7 KS69 ADAPTER Secure speaker to desired location English...
  • Page 8 Mid-Range Tweeter Mounting If you are replacing factory speakers in their original locations, you may need to use the included flanges and their retainers based upon the make and model of your vehicle, or modify it as such that it will fit your required screw patterns.
  • Page 9 KS270 ADAPTER - GM/CHRYSLER KS270 ADAPTER - CHRYSLER/JEEP KS270 ADAPTER - TOYOTA/SUBARU English...
  • Page 10: Tweeter Mounting

    Tweeter Mounting The tweeter can be separately mounted one of three ways: flush, angled and pod. For flush mounting applications, choose a flat location on the panel with space behind the panel to allow room for the short mounting nut, motor structure, and tweeter. After checking the clearances, cut a 1-3/4”...
  • Page 11 Flush Mounting short flush ring tweeter mounting nut panel Angle Mounting long back front mounting angle angle panel ring ring tweeter rounded surface inset surface Use a 1/8 turn with tweeter tool to secure the tweeter to the mounting nut. English...
  • Page 12 Pod Mounting The tweeter pod not only allows you to mount the KSS tweeter in nearly any location or application, but can also rotate 360 degrees and be directionally aimed! thread tweeter wires 1/8” turn tweeter tweeter tool wing nut Drill a 1/2”...
  • Page 13: Warranty

    Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes.
  • Page 14 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
