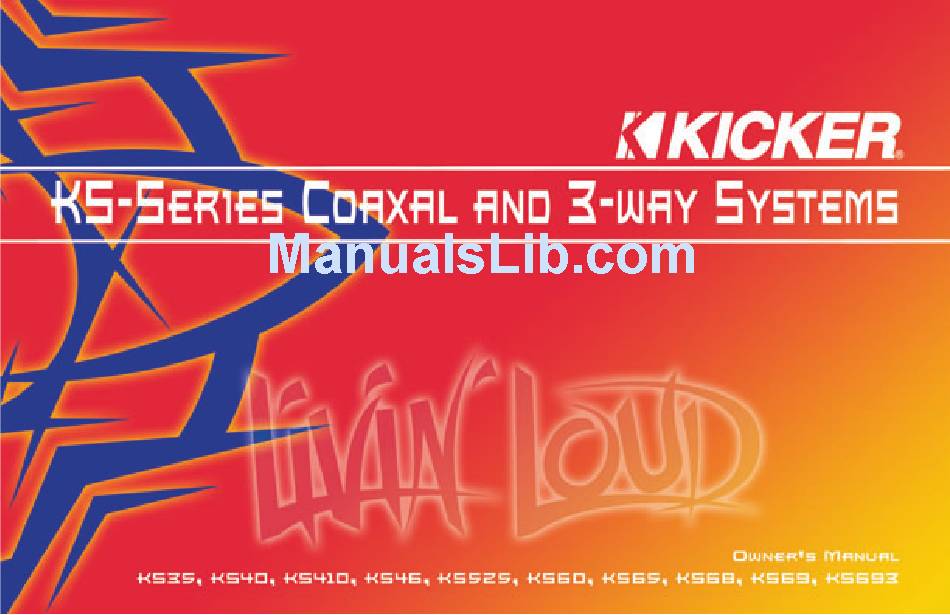

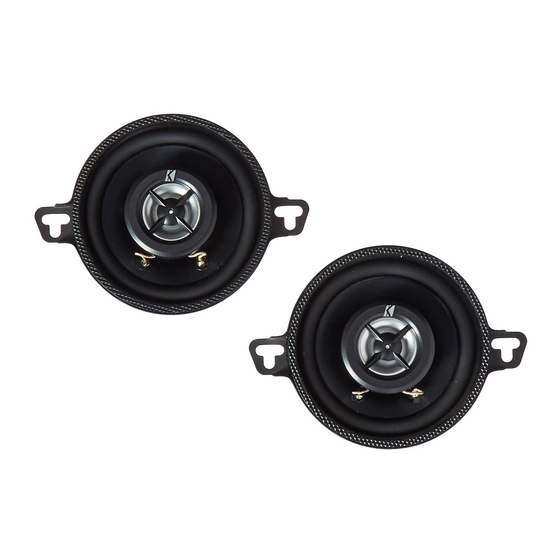

- Page 2 Models: KS35 / KS40 / KS410 / KS46 / KS525 / KS60 / KS65 / KS68 / KS69 / KS693 Attention: Please record your purchase information in the area below. We recommend attaching the original sales receipt to this manual for future reference.
- Page 3 ™ Dome Tweeter with Neodymium Magnet provides a smooth high frequency response with quick, detailed and spatially-correct imaging for the KS35, KS40, KS410 and KS46. PEN is an acronym for the space age material “biaxially oriented polypropylene naphthalate film”--your parents’ tax dollars probably paid for its development, you might as well enjoy it.
- Page 4 Performance Model: KS35 Speaker Design 2 - Way Rated Impedance, ohm DC Resistance, ohm Sensitivity [SPLo], dB @ 1W, 1m Power Range, Watts RMS 5-20 Peak Power Handling, Watts Effective Frequency Range, Hz 80-20k Top-Mount Depth, in (cm) 1 9/16 (4.0) Bottom-Mount Depth, in (cm) 1 7/8 (4.8)
- Page 5 Model: KS60 Speaker Design 2 - Way Rated Impedance [Zn], ohm DC Resistance, ohm Sensitivity [SPLo], dB @ 1W, 1m Power Range, Watts RMS 5-65 Peak Power Handling, Watts Effective Frequency Range, Hz 43-21k Top-Mount Depth, in (cm) 1 15/16 (4.9) Bottom-Mount Depth, in (cm) 2 1/4 (5.7) Mounting Hole Diameter, in (cm)
-
Page 6: Installation
Installation Your Kicker KS-Series drivers are specifically designed for mounting in free-air applications. The speakers do not require a sealed enclosure for optimum performance. It is important to isolate the sound coming off the front of the driver from the sound radiating from the back of the driver. - Page 7 If custom door mounting locations for the KS-Series Coax Speakers are desired, be careful to avoid interference from the window and door lock mechanisms. The first step is to find a location on the door panel that will accept the dimensions of the speaker. Then remove the door panel from the door, and check for operational clearance of the window.
-
Page 8: Wiring Options
Wiring Hooking up the supplied wires to your Kicker KS-Series Coax Speakers is easy. The end of each wire is terminated with a large and a small connector. The larger connector is crimped to the gray wire and connects to the larger positive terminal of the speaker. - Page 9 Wiring two KS-Series Coax Speakers to a single channel Modern high performance coaxial speakers have a lower DC Resistance than what used to be available. The Kicker KS-Series Coax Speakers are rated at four ohms and work with any source unit or amplifier designed to operate at a four ohm load. If you want to use two KS-Series Coax Speakers on each channel of your source unit or amplifier wire the speakers in series, as shown below.
- Page 10 Defective merchandise should be returned to your local Authorized Stillwater Designs (Kicker) Dealer for warranty. Assistance in locating an Authorized Dealer can be obtained by writing, calling, or by visiting kicker.com. You can confirm that a dealer is authorized by asking to see a current authorized dealer window decal.
- Page 11 Tech Lines Notes KS-Series Coax Speakers...
- Page 12 ©2005 Stillwater Designs • P.O. Box 459 • Stillwater, OK 74076 USA • 405.624.8510 • www.kicker.com...
