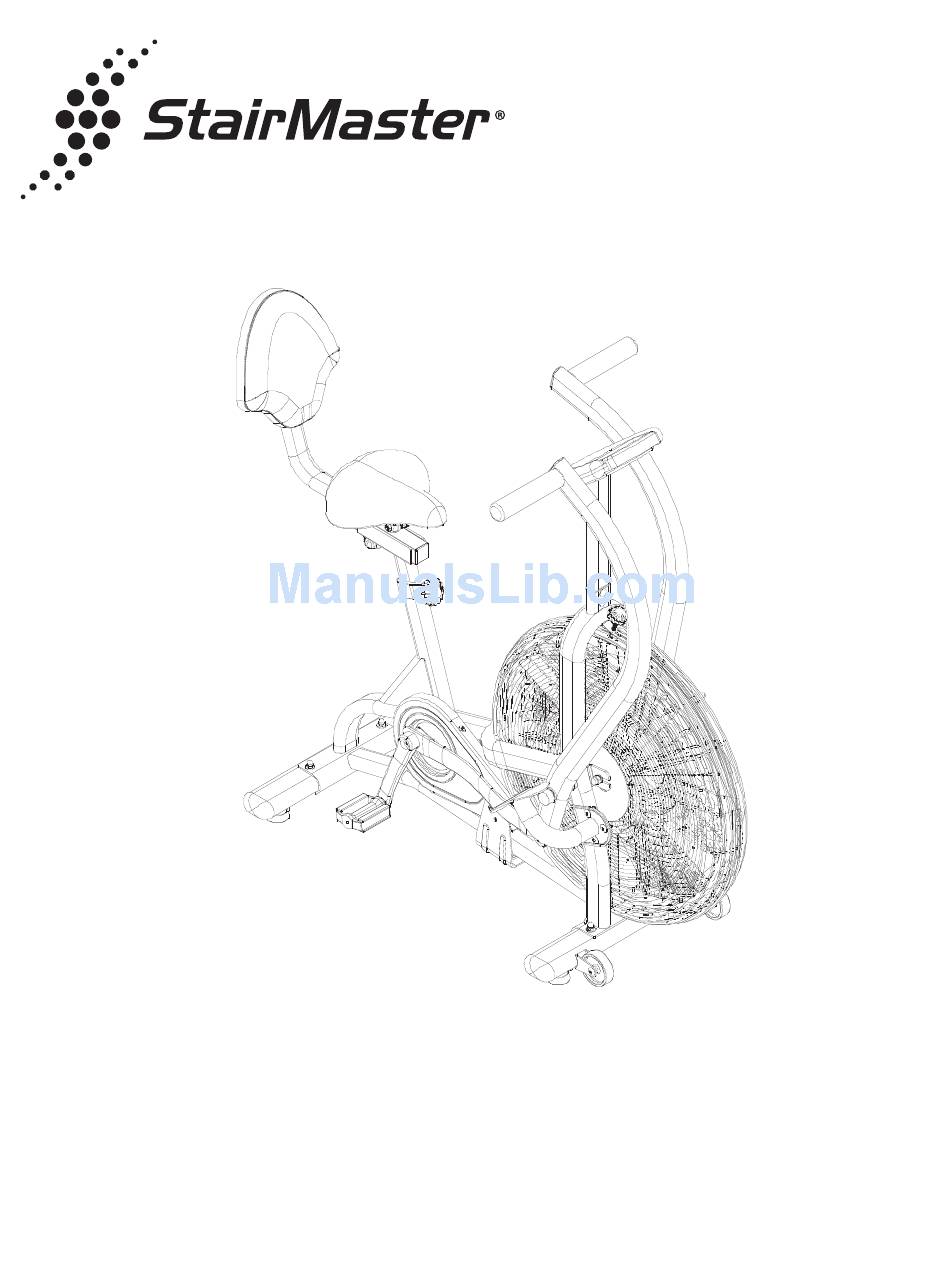

StairMaster Zephyr
A
A
SSEMBLY
SSEMBLY
:
:
:
I
MPORTANT
READ ALL ASSEMBLY INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE USING THIS PRODUCT. REFERENCE ALL
SAFETY GUIDELINES AND WARNING LABELS. RETAIN PRODUCT LITERATURE FOR FUTURE REFERENCE.
S
:
AFETY
PROPERLY WARM UP AND STRETCH BEFORE EXERCISING. IF YOU FEEL PAIN OR DIZZINESS AT ANY TIME WHILE
EXERCISING , STOP IMMEDIATELY AND CONSULT YOUR PHYSICIAN.
Part No. 060-0036
®
I
I
NSTRUCTIONS
NSTRUCTIONS
/ O
/ O
WNERS
WNERS
Revision: B
M
M
ANUAL
ANUAL
Date:
09/10
Advertisement
Table of Contents
Related Manuals for Stairmaster StairMaster Zephyr
Summary of Contents for Stairmaster StairMaster Zephyr
- Page 1 StairMaster Zephyr ® SSEMBLY NSTRUCTIONS WNERS ANUAL SSEMBLY NSTRUCTIONS WNERS ANUAL MPORTANT READ ALL ASSEMBLY INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE USING THIS PRODUCT. REFERENCE ALL SAFETY GUIDELINES AND WARNING LABELS. RETAIN PRODUCT LITERATURE FOR FUTURE REFERENCE. AFETY PROPERLY WARM UP AND STRETCH BEFORE EXERCISING. IF YOU FEEL PAIN OR DIZZINESS AT ANY TIME WHILE EXERCISING , STOP IMMEDIATELY AND CONSULT YOUR PHYSICIAN.
-
Page 2: Important Precautions
SSEMBLY NTRO SSEMBLY REPARATION SSEMBLY REPARATION To ensure ease of product assembly, please take time to verify the size and quantities of all required assembly hardware. Use the itemized parts listing and hardware chart for reference. The product assembly process has been documented in easy to follow stages. Please read all assembly instructions carefully. -
Page 3: Assembly Parts List
SSEMBLY ARTS ISTING SSEMBLY ARTS SSEMBLY ARTS Item # Part Number Description QTY. Base Frame Assembly 060-0038 060-0001 Front Stabilizer Assembly 060-0002 Rear Stabilizer Assembly 060-0003 Sensor Cable 060-0004 Console 060-0005 Console Mast Adjustable Seat Slider 060-0006 060-0007 Seat Post 060-0008 Seat 060-0009... -
Page 4: Exploded View
XPLODED StairMaster® Zephyr Assembly Parts NOTE : THE EXPLODED PARTS VIEW IS SHOWN FOR REFERENCE ONLY. SOME ITEMS MAY BE PREASSEMBLED. NOTE : THE EXPLODED PARTS VIEW IS SHOWN FOR REFERENCE ONLY. SOME ITEMS MAY BE PREASSEMBLED. PLEASE REFER TO THE INDIVIDUAL ASSEMBLY STAGE INSTRUCTIONS FOR DETAILED PARTS ORIENTATION. - Page 5 SSEMBLY NSTRUCTION SSEMBLY TAGE Attach Stabilizers to the Main Base Figure 1 Adjustable Levelers Assembly Hardware Required: Carriage Bolt Qty. 4 Acorn Nut Qty. 4 Spring Washer Qty. 4 Assembly Description: A) Assemble the Front Stabilizer Assembly (#2) to the Main Base Assembly (#1) using 2-Carriage Bolts (#22), 2-Flat Washers (#23), and 2-Acorn Nuts (#24).
- Page 6 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Console Mast & Mount Computer on the Main Base Computer Back View Figure 2 #4 Sensor Wire Assembly Hardware Required: Carriage Bolt Qty. 2 Spring Washer Qty. 2 Pan Head Screw Qty. 2 Acorn Nut M6 Qty.
- Page 7 SSEMBLY NSTRUCTION SSEMBLY TAGE Attach Seat Slider and Seat to Main Base Assembly Assembly Hardware Required: Button Head Allen Bolt Qty. 2 Button Head Allen Bolt Qty. 2 Assembly Description: A) Insert the Adjustable Seat Slider (#7) into the u-channel of the Seat Support Post (#8). Secure the seat slider assembly in place using the 1-Seat Adjustment Knob (#10).
- Page 8 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Pivot Arms to the Main Base Pivot-Boss Fan Safety Knob Figure 3 Pivot Shaft Figure 4 Place #31 Flat Washer in-between the Connecting Arm and the Pivot Arm Assembly Hardware Required: Spring Washer Qty. 2 Pivot Bolt M8 Qty.
- Page 9 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Pedals & Foot Rest to the Main Base Assembly Figure 5 ® Right Pedal Figure 6 Assembly Hardware Required: (*Assembly hardware may be preinstalled) Spring Washer Qty. 6 Pan Head Screw* Qty. 2 Acorn Nut Qty.
-
Page 10: Button Functions
OMPUTER PERATION BUTTON FUNCTIONS BUTTON FUNCTIONS MODE THE “MODE” BUTTON WILL SELECT AND SCROLL THROUGH EACH DISPLAY FUNCTION. RESET THE RESET BUTTON CAN BE USED TO ZERO OUT AN INDIVIDUAL DISPLAY FUNCTION. TOTAL RESET THIS BUTTON WILL ZERO OUT ALL DISPLAY READINGS AND PRESET VALUES. NOTE: THE REMOVAL OF THE BATTERIES WILL ALSO RESET ALL DISPLAY FUNCTIONS TO ZERO. - Page 11 OMPUTER PERATION DISPLAY FUNCTIONS (Continued) DISPLAY FUNCTIONS CALORIE COMPUTER ACCUMULATES TOTAL CALORIE CONSUMPTION (BURN) DURING A TRAINING PERIOD. COMPUTER WILL COUNT IN 1 CALORIE INCREMENTS, FROM 0 TO A MAXIMUM READING OF 9999 CALORIES. PRESET A TARGET CALORIE BURN: USE THE MODE” BUTTON TO SCROLL TO THE CALORIE FUNCTION AND PRESS THE “UP OR DOWN”...
-
Page 12: Basic Troubleshooting Tips
ROUBLESHOOTING BASIC TROUBLESHOOTING TIPS BASIC TROUBLESHOOTING TIPS PROBLEM DESCRIPTION SUGGESTED SOLUTION NO DISPLAY CHECK BATTERY ORIENTATION: + / - CHECK BATTERY VOLTAGE: (2) AA BATTERIES 1.5 VOLTS EACH CHECK CABLE CONNECTIONS: MAKE SURE CONNECTIONS ARE SECURE AND IN THE CORRECT ORIENTATION. CHECK CABLE ASSEMBLIES FOR DAMAGE: PINCH POINTS &... -
Page 13: Maintenance
REVENTATIVE AINTENANCE QUIPMENT AINTENANCE QUIPMENT AINTENANCE Use a dampened soft-cloth to wipe equipment free of perspiration after each use. Avoid getting excessive moisture on computer or electronic components. Do not use abrasive cleaners or petroleum-based solvents to clean equipment. Do not remove drive train shrouds or attempt any technical service on equipment without consulting an authorized service representative. -
Page 14: Limited Warranty
For any product that fails to conform under the terms of applied IMITED WARRANTY warranty, StairMaster will provide, at their option, one of the All StairMaster® exercise products are warranted to be free from following: 1) repair or replacement of defective parts, or defects in materials and workmanship under the terms of 2) replacement of equipment with a product of equal value;... -
Page 15: Product Registration
L) Do you belong to a health club, gym, wellness center, etc.? Thank you ! We appreciate your response. The information provided on this questionnaire is used exclusively by StairMaster and will not be distributed to any other individuals or agencies regardless of purpose. - Page 16 StairMaster 8000 NE Parkway Drive, Suite 220 Vancouver, WA 98662 1-888-678-2476 www. stairmaster. com...
