Socket CompactFlash 56K Modem Card User Manual

Hide thumbs Also See for CompactFlash 56K Modem Card:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
CompactFlash 56K Modem Card
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CompactFlash 56K Modem Card and is the answer not in the manual?

Questions and answers

Related Manuals for Socket CompactFlash 56K Modem Card

Summary of Contents for Socket CompactFlash 56K Modem Card

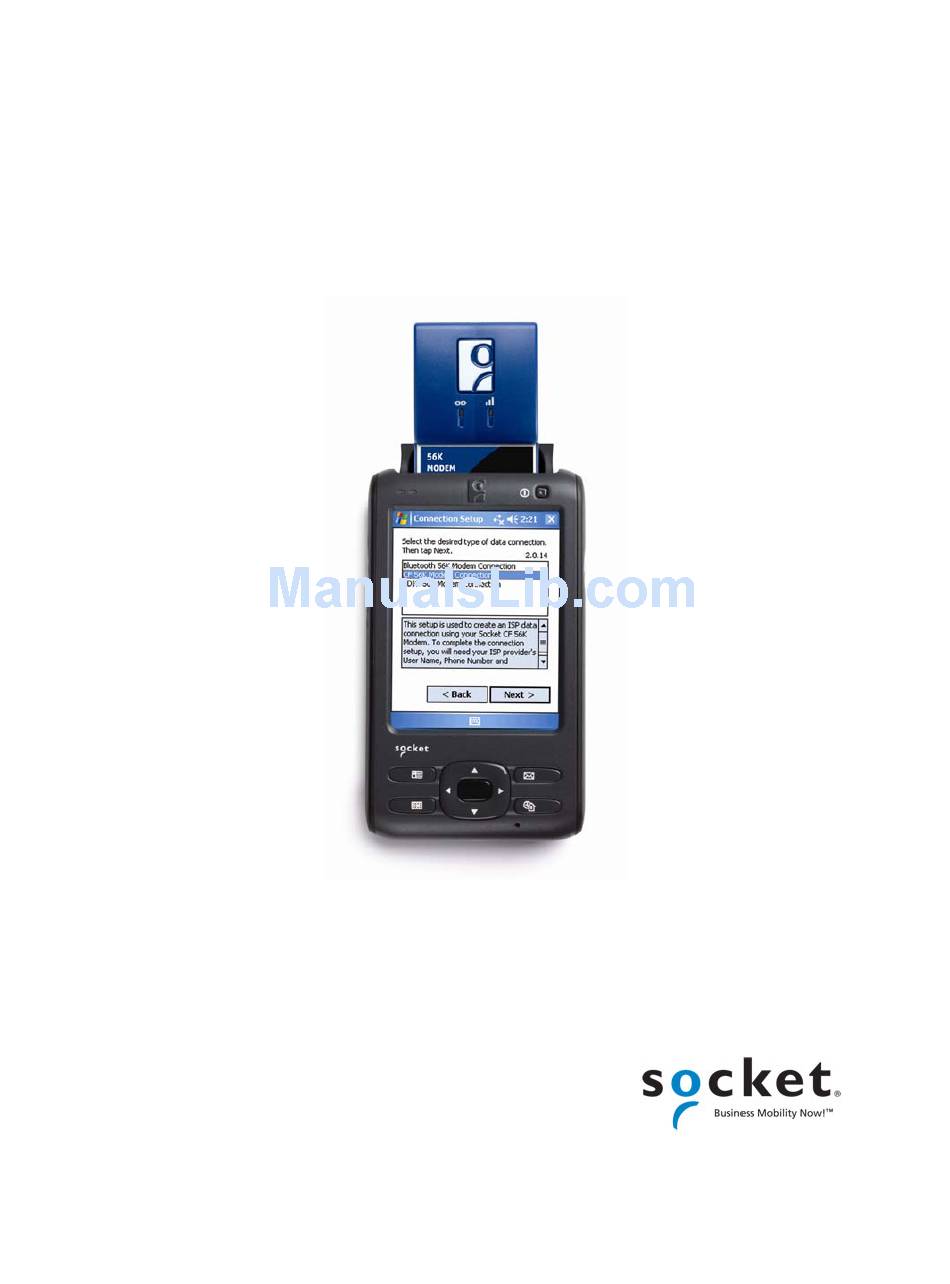

  • Page 1 CompactFlash 56K Modem Card User’s Guide...

  • Page 2: Copyright Notice

    Socket Mobile requests that you refrain from any applications of the 56K Modem Card that are not described in this manual. Socket Mobile also requests that you refrain from disassembling the product. Disassembly of this device will void the product warranty.

  • Page 3: Table Of Contents

    STEP 2: Install the Software (OPTIONAL) STEP 3: Complete the Connection Setup Wizard STEP 4: Connect to a Telephone Line STEP 5: Dial and Connect Using Socket Mobile Modem Utilities Checking the Connection Time 3 | SETUP FOR WINDOWS NOTEBOOKS/TABLETS STEP 1: Prepare Dial-up Information...

  • Page 4: Introduction

    1 | Introduction The Socket 56K Modem Card gives you the freedom of high speed Internet access, email, and faxing from any analog phone line. It plugs directly into your Pocket PC, notebook or tablet PC and provides a durable physical connection for data communication. Plus, it features V.92 technology to provide the following advanced modem options.

  • Page 5: About V.92 Modem-On-Hold

    Quick Connect is convenient if you plan to repeatedly use this product with the same phone line, (e.g., the phone line in your hotel room). IMPORTANT! If you plan to use your modem in different locations, Socket recommends that you disable the Quick Connect feature If you enable Quick...

  • Page 6: System Compatibility Requirements

    Register online at: http://support.socketmobile.com About the Status Indicator LEDs The Socket 56K Modem Card features two prominent LEDs to help you easily monitor the status of your connection and data transfers at a glance. LED Activity...

  • Page 7: Setup For Windows Mobile

    2 | Setup for Windows Mobile This chapter explains how to install and use the 56K Modem Card with a device running Windows Mobile 2003/2003SE/5.0 for Pocket PC or Windows Mobile 6 Classic/Professional. Setup Summary STEP 1: Prepare dial-up information. STEP 2: Install the software (optional).

  • Page 8: Step 2: Install The Software (Optional)

    STEP 2: Install the Software (OPTIONAL) Note: The software comes pre-installed on the Socket SoMo 650 handheld computer. Should I install the software? The 56K Modem Card comes with software for Windows Mobile that is optional to install in most cases. The software enhances your connection experience by offering the following features: •...
  • Page 9 SOFTWARE INSTALLATION: IMPORTANT! Install the software BEFORE you insert the Socket 56K Modem Card into your device. ADVANCED USERS: Refer to Appendix C for CAB file installation instructions. 1. Use a serial/USB cable or cradle and ActiveSync or Windows Mobile Device Center software to make an active connection between the mobile computer and a host 2.

  • Page 10: Step 3: Complete The Connection Setup Wizard

    STEP 3: Complete the Connection Setup Wizard Note: If you did not install the Socket Mobile software, refer to Appendix D for instructions on manually creating a connection. 1. If your device is connected to the host PC, remove it from the cable/cradle.
  • Page 11 5. Follow the next screens to enter a name for your connection, plus the user name, password, and dial-up number for your ISP account. 6. After you enter the network information, you will be prompted to insert the 56K Modem Card. 7.

  • Page 12: Step 4: Connect To A Telephone Line

    Note: If a bubble appears reporting that there are no connections on your device that use the modem card, tap Dismiss. 8. After inserting the 56K Modem Card, tap OK. 9. The last screen will report that you have completed the wizard. Tap on the link for Remote Networking if you would like to use your Pocket PC’s Connection Manager to connect.

  • Page 13: Step 5: Dial And Connect

    Use either of two methods for dialing into your network. METHOD 1: Use the Connection Manager 1. If you just completed the Socket Mobile Connection Setup Wizard and tapped on the link for Remote Networking, the Connections screen will appear.
  • Page 14 − Alternatively, tap on the Connection icon at the top of the screen. − A bubble should list the connection for the Socket 56K Modem Card. Tap on the phone number. Note: If a bubble reports that no connections use the modem card, tap Dismiss.
  • Page 15 1. Tap on the connection icon (two arrows)at the top of your screen. 2. In the bubble, tap Disconnect. 3. The connection icon will appear with an “x. If you installed the Socket Mobile software, the modem status icon will turn red before disappearing.

  • Page 16: Using Socket Mobile Modem Utilities

    Using Socket Mobile Modem Utilities 1. Make sure your modem is NOT connected to a network. 2. Tap Start | Settings | System | Socket Modem Utilities 3. The Socket Mobile Modem Utilities screen will appear. 4. If your 56K Modem Card is currently inserted into your device, your device will begin communicating with the modem.
  • Page 17 5. The Socket Mobile Modem Utilities will appear. Modify any settings as desired, then tap ok. • Current location: Select the country you will be dialing from. The 56K Modem Card will be programmed with the correct country code. • Speaker Volume: Select the sound level for the modem.

  • Page 18: Checking The Connection Time

    Checking the Connection Time The Connection Manager reports the connection time. Tap on the connection icon in the Navigator bar to access the Connectivity bubble.

  • Page 19: Setup For Windows Notebooks/Tablets

    • Windows 98SE/Me/2000 • Windows XP/XP Tablet Edition • Windows Vista Please note that the Socket modem software does not work with Windows notebooks. Do not install any software from the installation CD. Setup Summary STEP 1: Prepare dial-up information.

  • Page 20: Step 2: Insert The Card

    STEP 2: Insert the Card 1. Insert the 56K Modem Card into a CompactFlash-to-PC Card adapter. 2. With the computer turned ON, insert the combined unit into the PC Card slot of your computer. 3. After a few seconds, a new hardware or device driver wizard will automatically launch.

  • Page 21: Step 3: Install The Drivers

    STEP 3: Install the Drivers After you insert the 56K Modem Card, a new hardware wizard will automatically launch for you to install a Standard PCMCIA Card Modem. Follow the wizard to install the card drivers. Windows XP 1. In the first screen, the following option should be selected: Install the software automatically (Recommended).
  • Page 22 Windows 2000, Me, and 98SE 1. The welcome screen will appear. Click Next>. 2. In the next screen, make sure the Recommended option is selected: • Windows 2000: Search for a suitable driver for my device. • Windows Me/98SE: Search for the best deriver for your device. Click Next>.

  • Page 23: Step 4: Set Up Your Dial-Up Connection

    STEP 4: Set up Your Dial-up Connection To set up your dial-up connection, use the network connection wizard included with Windows. Windows XP and 2000 Note: Windows XP screens are shown. Windows 2000 screens will be functionally equivalent except where otherwise noted. 1.
  • Page 24 Windows Me and 98SE • Go to Start | Settings | Dial-up Networking. Double-click on the Make New Connection icon. • The Make New Connection Wizard will begin. In the first screen, enter a name for the dial-up connection. In the Select a device field, select Standard PCMCIA Card Modem.

  • Page 25: Step 5: Connect To A Telephone Line

    STEP 5: Connect to a Telephone Line With the card still in your computer, connect to an analog telephone line. STEP 6: Dial and Connect 1. After setting up your dial-up connection in Step 4, your new connection should be listed in the network connections screen. Double-click on your new modem connection.
  • Page 26 1. Complete the Network Information Form in Appendix B. 2. To enter TCP/IP settings, after completing the wizard to create a new dial-up connection in Step 5, follow these steps to modify the connection: Windows XP (a) After completing the wizard in Step 5, the Connect screen will appear for your new connection.
  • Page 27 Windows Me (a) Right-click on the icon for the connection you just created. In the pop-up menu, select Properties. (b) Click on the Networking tab. Click on the TCP/IP Settings button. (c) Enter any necessary settings, then click OK. (d) Click OK again in the main properties screen. Restart your computer to make sure the changes take effect.

  • Page 28: Appendix A Specifications

    • Windows Vista For information on Sharp Zaurus compatibility please visit: http://www.socketcom.com/ZaurusSharp.asp Note: This is provided as Third Party information only. Socket does not provide technical support for the Sharp Zaurus. Software Included: 56K Modem Installation CD Warranty: One year...

  • Page 29: Appendix B Network Information

    Appendix B Network Information Network Information Form For Advanced Users Only Contact your office network administrator or Internet Service Provider (ISP) for the information below. 1. Please provide the following dial-up information: Dial-up number: ( ____ ) _______________ User name: _________________________ Password: _________________________ Domain: __________________________ 2.

  • Page 30: Appendix C Advanced Software Installation

    Windows Mobile Advanced Users Only! If you do not want to use the application installer to install Socket’s modem software, you can install the software from a CAB (cabinet) file. The CAB file contains all the software and drivers for your product to be installed on a specific Pocket PC platform. CAB files are available both on the installation CD (in the CABs folder) and at: http://www.socketmobile.com/support/downloads...

  • Page 31: Appendix D Manual Connection Setup

    Appendix D Manual Connection Setup If you did not install the Socket Mobile software, or if you do not want to use the Connection Setup wizard, you can manually set up a dial-up connection in Windows Mobile. These instructions are for a standard dial-up connection to an Internet Service Provider (ISP).
  • Page 32 3. In the Network Management screen, make sure My ISP is selected in the top field, and My Work Network is selected in the bottom field. Tap ok. 4. Tap on the Tasks tab. In most cases, you should tap Add a new modem connection under My ISP.
  • Page 33 5. In the next screen, enter the following: • Enter a name…: Enter a name for the new modem connection. • Select a modem: Socket 56K Modem or Socket-CF+_ 56K_Modem. Tap Next. 6. In the next screen, enter the dial-up number exactly how it should be dialed from your current location.
  • Page 34 8. In the General screen, select the following: • Baud rate: 57600. • Wait for dial tone before dialing: Checked. If you DO NOT need to enter any IP addresses, tap ok. If you DO need to enter IP addresses, tap on the TCP/IP and Servers tabs to enter any necessary IP addresses.

  • Page 35: Appendix E Technical Support

    Appendix E Technical Support If you have trouble installing or using the 56K Modem Card, Socket has two technical support resources you can use: Online Knowledge Base: Search for articles, Frequently Asked Questions or Hot Topics 24 hours a day.

  • Page 36: Limited Warranty

    The returned product must be accompanied by a return material authorization (RMA) number issued by Socket Mobile or by a Socket Mobile Authorized Service Center. If you ship the product, you must use the original container or equivalent and you must pay the shipping charges to Socket Mobile.

  • Page 37: Limited Software Warranty

    Limited Software Warranty Socket Mobile LIMITED WARRANTY. warrants that the original disk or CD ROM is free from defects for 90 days from the date of delivery of the SOFTWARE. Socket Mobile CUSTOMER REMEDIES. The entire liability of and your exclusive remedy shall...

  • Page 38: Regulatory Compliance

    8. If you have trouble with this product, please contact Socket technical support for repair/warranty information at http://support.socketmobile.com. If your equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
  • Page 39 82009 Printed in U.S.A.
