Asante IntraStack 6014DSB Quick Installation Manual

IntraStack 6014DSB

Overview

This guide provides instructions for mounting, installing, and configuring your IntraStack
6014DSB Ethernet switch.
This guide assumes you are familiar with installing and managing Ethernet switches. If
you are not familiar with installing and managing Ethernet switches, refer to the IntraStack
6014DSB User's Manual included in your package for more detailed instructions.

Package Contents

The IntraStack 6014DSB is shipped with the following items:
(1) IntraStack 6014DSB Ethernet switch (1) MII opening bracket
(1) Goldcard™ connector (2) MII cover brackets
(1) Power cord (1) User's Manual
(2) Stack-mounting pins
(1) Quick Installation Guide (this card)
(2) Rack-mounting brackets
(1) IntraStack Web Browser Management
Manual Addendum
(16) Standard Phillips screws
(1) Registration card
Additional materials required:
• Network cables — refer to Step #5 ("Connect to the Network") to determine the
cables you need to connect the IntraStack to the network.
• Phillips screwdriver — for rack-mounting the IntraStack.
Default Settings
The IntraStack 6014DSB is shipped with the following default configuration settings:
• IP address: 0.0.0.0 • Auto-negotiation: enabled
• Subnet mask: 0.0.0.0 • Spanning Tree: enabled
• Default gateway: 0.0.0.0 • Switching mode: store-and-forward
Quick Installation Guide
1

Rack Mount or Prepare for Desktop Placement

The IntraStack can be installed in a standard 19-inch equipment rack. It can also be
placed on a horizontal surface with support capabilities of 12 pounds (5.4 kilograms).
Equipment Rack Installation
To install the IntraStack in an equipment rack:
1. Place the IntraStack on a flat, stable surface.
2. Locate a rack-mounting bracket (supplied) and place it over the mounting holes
on one side of the unit, as shown below.
3. Insert six screws (supplied) into the holes and tighten with a Phillips screwdriver.
4. Repeat the two previous steps for the unit's other side.
5. Place the IntraStack in an equipment rack.
6. Secure the IntraStack by screwing its mounting brackets to the equipment rack.
Important: Make sure the switch is supported until it is secured to the equipment
rack. Failure to do so could cause the switch to fall, resulting in personal injury or
damage to the unit, or both.
Desktop Placement
The IntraStack has four rubber feet on the bottom of the chassis that enable desktop/
free-standing installation of the unit.
For free-standing/desktop placement:
1. Place the IntraStack on a flat, stable, horizontal surface with a minimum area of
17.1" x 13.5" (434.3 mm x 342.9 mm) and support capabilities of 12 lbs. (5 kg.).
2

Install Expansion units (if any)

Up to two expansion units can be added to the IntraStack 6014DSB, allowing up to 4
connections in a single, logical stack.
Initial expansion units for the IntraStack 6014DSB include the following:
• IntraStack 6016DSE — 16 port, 10/100TX expansion unit
• IntraStack 6008FXE — 8 port, 100Base-FX fiber expansion unit
To install an expansion unit, refer to "Installing Expansion Units" in Chapter 2 of the
IntraStack 6014DSB's User's Manual.
3

Install MII Expansion Modules (if any)

The IntraStack's two optional Media Independent Interface (MII) expansion slots on
the switch's front panel allow for the addition of various types of media access
modules, including: 10/100TX, 100Base-FX and 10Base-FL.
The MII expansion modules are sold separately and comply with IEEE 802.1 and
802.1u specifications.
To install an MII module:
The MII expansion modules are hot-swappable; you can install and or/remove a
module without turning the switch's power off.
1. Remove the MII opening bracket from the front of the MII expansion slots by
unscrewing the bracket's thumbscrew.
2. Remove an MII cover bracket from the front of one of the MII expansion slots.
3. Align the bottom of an MII module with the rails on the inside of the expansion sl
4. Slide the MII module into the slot until it stops, then push the module in until it se
with the connector.
5. Repeat steps 2 - 4 to install another MII expansion module.
6. Place the MII opening bracket over the MII expansion slots.
7. Tighten the thumbscrew on the MII opening bracket's cover.
4

Connect Power Cord

To connect the IntraStack's power cord:
1. Plug one end of the supplied power cord into
the connector on the unit's rear panel.
2. Plug the other end into a grounded AC outlet.
3. Turn the power switch to the "on" position.
The front-panel LEDs blink and the power light illuminates and remains on.
4. Turn the switch's power off.

IntraStack Power Sequence

The following power-on sequence must be followed when an expansion unit is installe
1. Power on the expansion unit(s) first.
2. Power on the IntraStack 6014DSB last.
The following power-off sequence must be followed when an expansion unit is install
1. Power off the expansion unit(s) first.

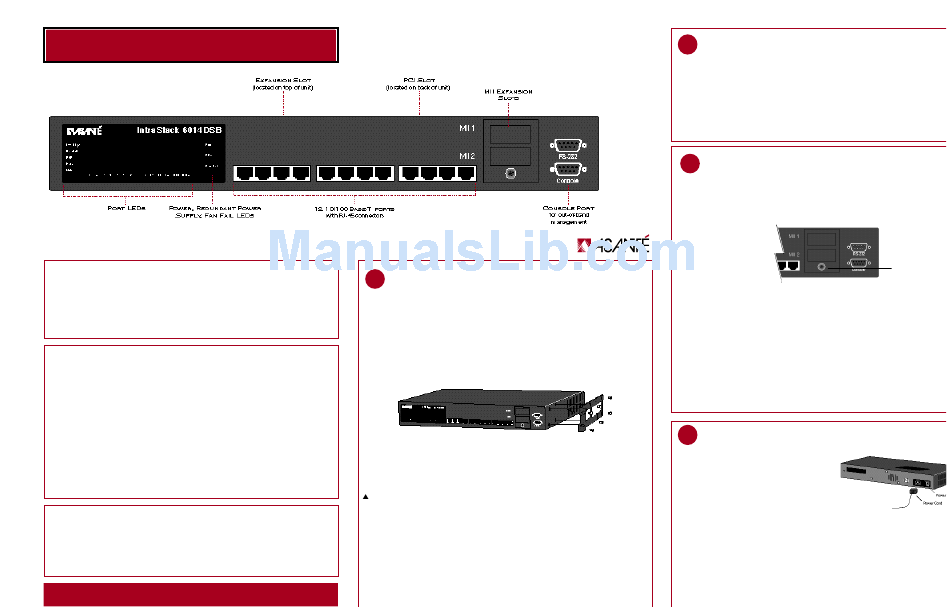

IntraStack Front Panel
MII Opening Brack
