- Page 1 CABINET PARTS REFRIGERATOR For Model: ATF1822MRE01 (White) 9−07 Litho In U.S.A. (rrm) Part No. W10164719 Rev.A...
-
Page 2: Cabinet Parts

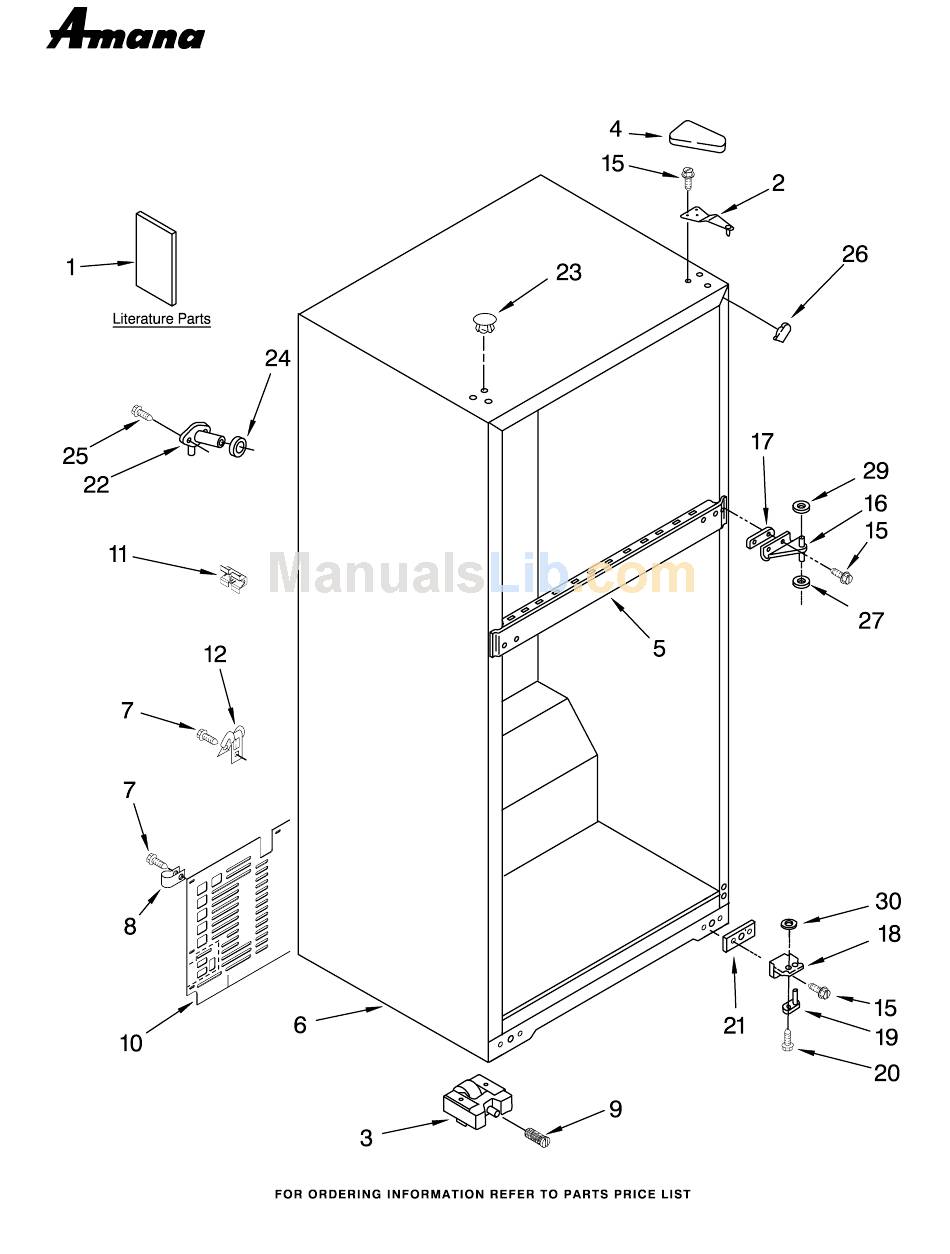

CABINET PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION Literature Parts 2265591 Service & Wiring Sheet W10162920 Energy Label W10154917 Use & Care Guide 628370 Modular Ice Maker Service Sheet Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual Ref./ Frz. -
Page 3: Door Parts
DOOR PARTS For Model: ATF1822MRE01 (White) W10164719... - Page 4 DOOR PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION 1 W10153823 Refrigerator Door (Includes Illus. 9) 2207942 Door Compartment 3 2258681W Shim, Door Stop 2212648 Hole Plug 2266727 Trim, Door Shelf (Narrow) 2156003 Endcap, Trim 2266738 Trim, Door Shelf (Wide)
- Page 5 LINER PARTS For Model: ATF1822MRE01 (White) W10164719...
- Page 6 LINER PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 939962 Rivet−Plastic 2183061 Cover, Air Diffuser 2303825 Control, Adaptive Defrost 489174 Screw 2265930 Wire Assembly Control Box 2162085 Socket, Light 2197404 Fan Support Bracket 2197405 Fan Mounting...
-
Page 7: Unit Parts
UNIT PARTS For Model: ATF1822MRE01 (White) W10164719... - Page 8 22 W10128791 Start−Device Combination (Start Relay and Overload for Production Compressor Only) 2262192 Wedge−Evaporator 2264129 Fan Blade 2264841 Screw UNIT PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION 2266360 Shield−Electrical 28 W10141544 Compressor (Includes Items 14, 29 & 32) (Also Order...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Model: ATF1822MRE01 (White) W10164719... - Page 10 ICEMAKER PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181944 Tube Water 2210494 Valve Solenoid (Single) 2174755 Tube−Water Inlet 2174157 Cover 489442 Screw 10 W10122527 Mold & Heater Assembly (Also Order 542638...
-
Page 11: Shelf Parts
W10164719 SHELF PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION 2262654 Shelf, Ice Tray 2263641 Shelf 2222031 Crisper Cover 2256704 Crisper Pan 2261880 Pan, Meat 2256601 Holder, Meat Pan 2262441 Glass, Cover 2212446 Body, Humidity Control 2176222 Slide, Humidity Control 2328554 Crisper Pan Assy. -
Page 12: Optional Parts
(36−5/8" x 46") 799833 Kit, Evaporator Repair (Aluminum Epoxy) 799832 Kit, Porcelain Repair (White) 503695 Cork Sealer (1/4 Pound) OPTIONAL PARTS For Model: ATF1822MRE01 (White) Illus. Part DESCRIPTION Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz.
