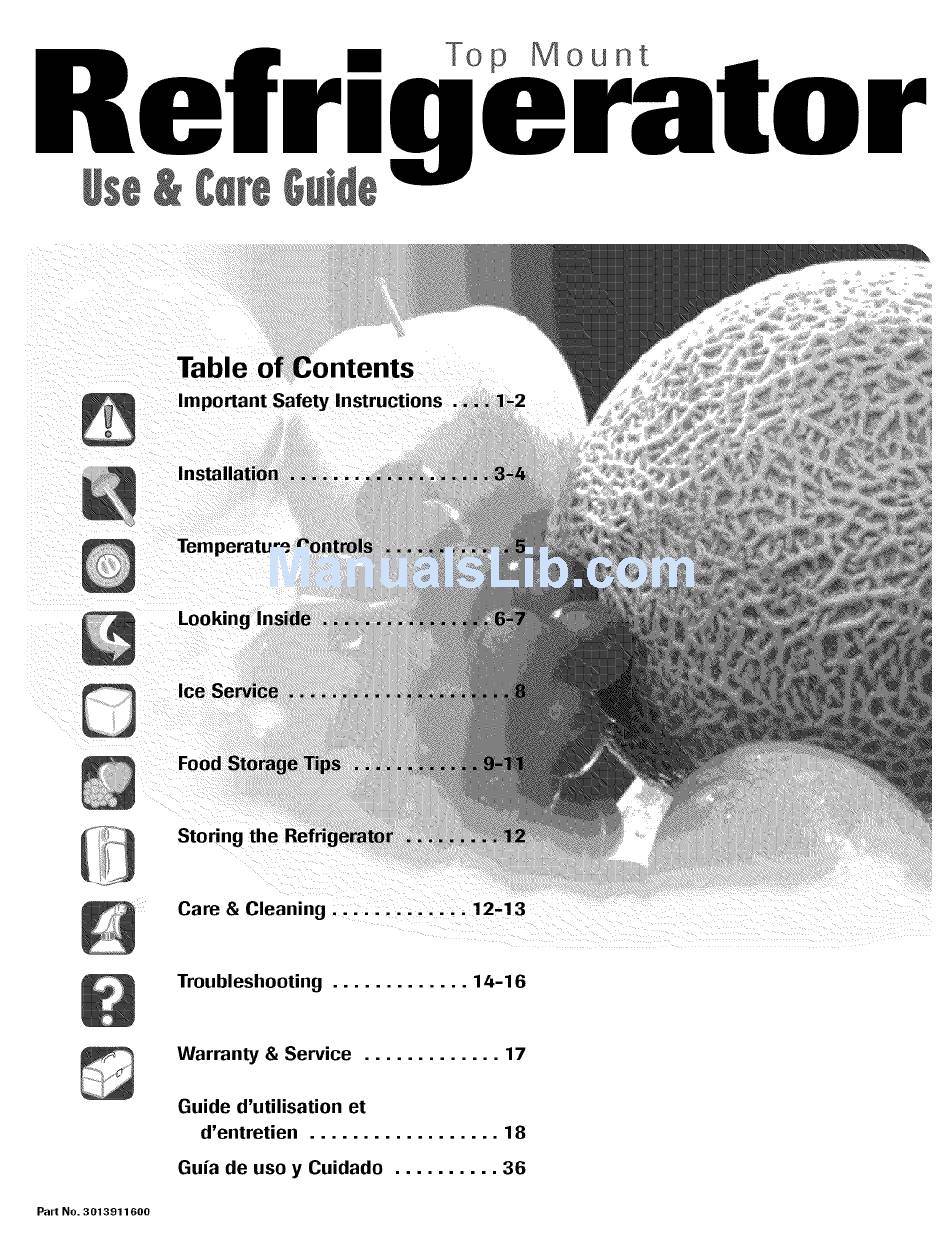

- Page 1 Mount Refr/g Table of Contents Important Safety Instructions Installation Temperature Looking Ice S Food Storing Care & Cleaning ..... 12-13 Troubleshooting ..... 14-16 Warranty & Service ..... Guide d'utilisation d'entretien ....Guia de uso y Cuidado ..Part No. 3013911600...
- Page 2 Importnnt Snfety Instructions What You Need to Know About Safety Instructions Warning and Important Safety Instructions appearing this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating...
- Page 3 Importnnt Snfety Instructions This appliance is equipped with a three-pronged grounding plug for your protection against possible electrical shock hazards. It must be plugged into a grounding receptacle. Where a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it...
- Page 4 Installation Front Base Grille Your new refrigerator was packed carefully for shipment. Remove and discard shelf packing and tape. The front base grille was packaged inside the refrigerator for shipment and should be installed after Location the refrigerator has been leveled. To Install: •...
- Page 5 Installation 15. Carefully place freezer door on top of hinge arm. Use foam door spacer to set gap. Reversing Doors Note Tools Required: • Do not discard the foam door spacer. Doors may • Phillips screwdriver settle with use. • 5/_6" s ocket and ratchet •...
- Page 6 Temperature Controls The fresh food control is located at the top of the fresh food compartment. Fresh Food Adjust fresh food control FRESH FOOD TEMP Compartment to next higher setting. 7 ISCOLDEST UNUTIAL SETTING too Warm og - Fresh Food Adjust fresh food control Compartment to next lower setting.
- Page 7 Loohing Inside To Reinstall: Fresh Food Compartment • While holding the shelf on each end, slide the shelf Shelves in and down. • Push down on the interior center of the shelf to snap it completely into place. The Crispers provide a storage area for fruit and Select models are equipped with full width shelves that...
- Page 8 Looking Inside Freezer Compartment Dairy Compartment The Dairy Compartment is covered and designed to store spreadable food items such as butter or margarine. To use this compartment, simply raise the lid to store or retrieve items. This compartment can be removed for cleaning lifting up from the bottom and out.
- Page 9 IceService Ice Cube Trays • When the ice cubes are ejected it is normal for several cubes to be joined together at the ends. They Select models are equipped with ice cube trays. To can easily be broken apart. The ice maker will release the ice cubes from a tray, hold the tray upside continue to make ice until the supply of ice cubes down over a container and twist both ends.
- Page 10 Food Storage Tips Fresh Food Storage Frozen Food Storage • The fresh food compartment of a refrigerator should • The freezer compartment of a refrigerator should be be kept between 34 ° F and 40 ° F with an optimum kept at approximately 0°...
- Page 11 Food Storage Tips Food Storage Chart Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality of the food when purchased. DAI RY PRODUCTS Butter 1 month 6-9 months Wrap tightly or cover. Milk and cream 1 week Not recommended...
- Page 12 Food Storage Tips POULTRY AND FISH 12 months Chicken and Turkey, whole Keep in original packaging for 1-2 days refrigeration. Place in the Meat Chicken and Turkey, pieces 9 months 1-2 days and Cheese Drawer. When Fish 2-6 months 1-2 days freezing longer than 2 weeks, overwrap with freezer wrap.
- Page 13 Storing t heRefrigerutor Vacations* 5. Clean and dry the refrigerator thoroughly. 6. Leave the doors open to prevent odors. If you will be gone for a month or less, leave the controls at the usual settings. During longer absences: 1. Remove all food. 2.
- Page 14 & Cleaning Refrigerator Cleaning Chart REFRIGERATOR EXTERIOR Front base grille Mild detergent and warm water. Remove the front base grille (see page 3]. Mild liquid sprays. Vacuum cleaner attachment. Condenser Cleaning brush No need for cleaning unless environment is particularly (:Part No.
- Page 15 Troubleshooting Normal Operating Sounds Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not present in an older model. These improvements were made to create a refrigerator that is better at preserving food, is more energy efficient, and is quieter overall.
- Page 16 Troubleshooting Review this chart of troubleshooting tips first...you may not need to call for service at all. Won't run Power cord not plugged in. Push plug into outlet. No power to outlet. Replace fuse, reset circuit breaker. Fresh food control set to "OFF" position. Set fresh food control (see page 5).
- Page 17 Troubleshooting Automatic icemaker Sensor arm in up position. Adjust sensor arm down to "ON" position. not working Cabinet not level. Level unit (see page 3). Water supply not connected or Connect water supply, or clear obstructions. restricted. Freezer too warm. Adjust freezer temperature control (see page 5).
- Page 18 What is Not Covered By These Warranties: 1. Conditions and damages resulting from any of the following: a. Improper installation, delivery, or maintenance. b. Any repair, modification, alteration, or adjustment not authorized by the manufacturer or an authorized servicer. c. Misuse, abuse, accidents, or unreasonable use. d.
