Amana A4TXNWFW Product Dimensions

PRODUCT MODEL NUMBERS
A8RXNGMW ATF1822MR
ATB1822MR A4TXNWFW
Electrical: A 115-Volt, 60-Hz, AC-only,
15- or 20-amp fused, grounded
electrical supply is required. It is
recommended that a separate circuit
serving only your refrigerator be
provided. Use an outlet that cannot be
turned off by a switch. Do not use an
extension cord.
Water: A cold water supply with water
pressure between 30 and 120 psi (207
and 827 kPa) is required to operate the
ice maker. If you have questions about
your water pressure, call a licensed,
qualified plumber.
IMPORTANT: The pressure of the water
coming out of a reverse osmosis system
going to the water inlet valve of the
refrigerator needs to be between 30 and
120 psi (207 and 827 kPa).
If a reverse osmosis water filtration
system is connected to your cold water
supply, the water pressure to the system
needs to be a minimum of 40 to 60 psi
(276 to 414 kPa).
LOCATION REQUIREMENTS
3" (7.5 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice.
Top Mount Refrigerator

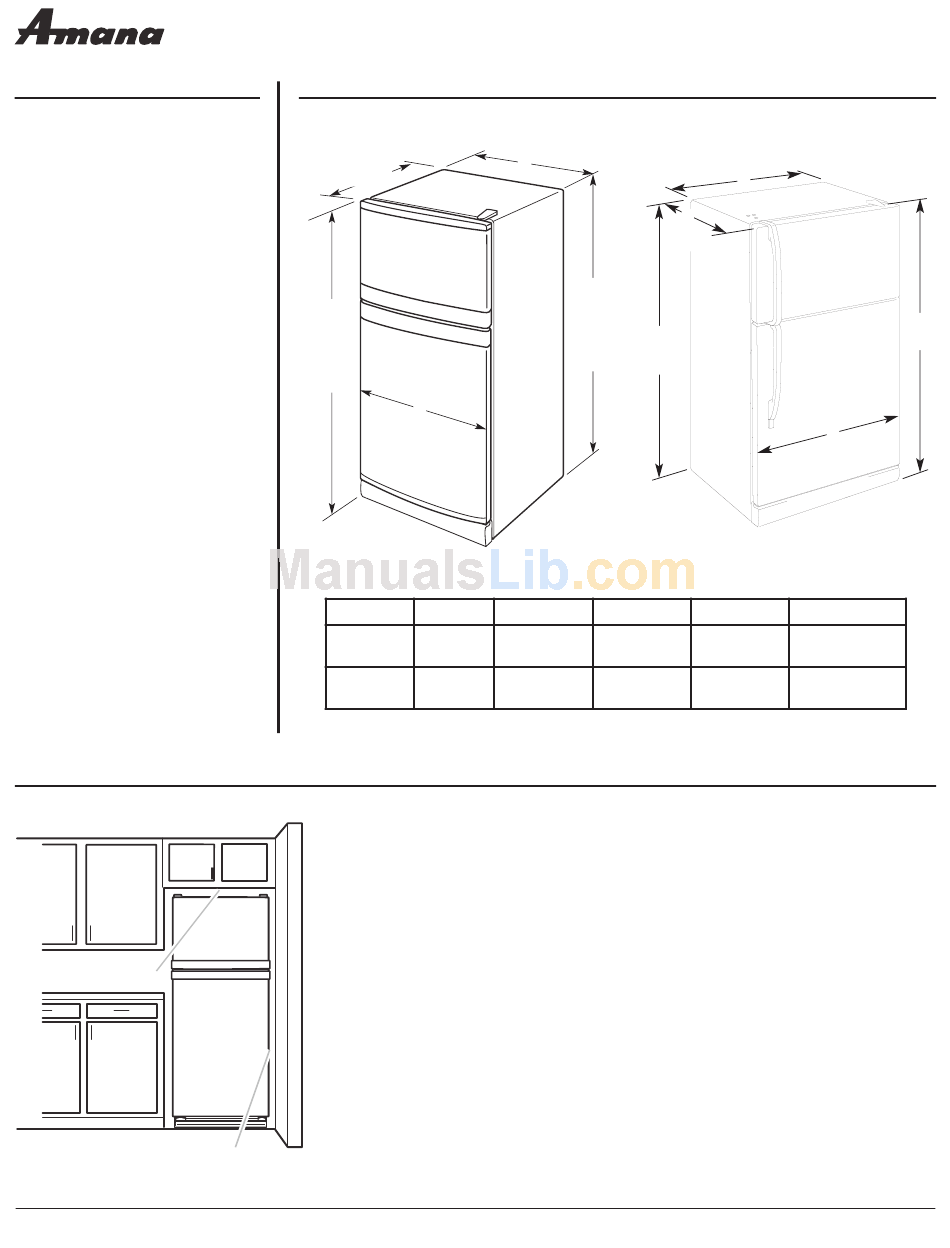

PRODUCT DIMENSIONS
A
overall to
back of coils
E
includes
rollers
extended
3 ⁄ "
4
(1.9 cm)
Model Size
18 cu. ft.
14 cu. ft.
2" (5.1 cm)
B
C
Depth A Cab. Width B
29 1 ⁄ " 28"
8
(74 cm) (71.1 cm)
29 ⁄ " 28"
3
4
(75.6 cm) (71.1 cm)
To ensure proper ventilation for your refrigerator, allow for a
each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator
top. Allow at least 1" (2.5 cm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra space at the back for
the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 2" (5.1 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: It is recommended that you do not install the refrigerator near an oven,
radiator, or other heat source. Do not install in a location where the temperature will
fall below 55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
A
not incl.
handle
D
includes
rollers
extended
D
3 ⁄ "
4
top of
(1.9 cm)
cabinet
Door Width C Cab. Height D Overall Height E
28 1 ⁄ " 67 3 ⁄ "
8 8
(71.4 cm) (171.1 cm)
28" 62 ⁄ "
1
8
(71.1 cm) (157.8 cm)
1 ⁄ " (1.3 cm) space on
2
E
overall
C
68"
(172.7 cm)
62 ⁄ "
3
4
(159.4 cm)
Ref. W10214129-D-AM
06-24-09
