Page 1: Ak73(A)-V / Ak73-V
AK73(A)-V / AK73-V DOC. NO.: AK73AV-OL-E0111B... -
Page 2: Table Of Contents
’ ’ AK73(A)-V / AK73-V..........................1 What’s in this manual ................................2 You Must Notice ..................................8 Before You Start ..................................9 Overview ....................................10 Quick Installation Procedure..............................15 Motherboard Map ..................................16 Block Diagram ..................................17 Hardware Installation ........................18 JP14 Clear CMOS ................................... 19 CPU Installation.................................. - Page 3 Front Panel Connector ................................31 ATX Power Connector ................................33 AC Power Auto Recovery ................................ 34 IDE and Floppy Connector ..............................35 IrDA Connector ..................................38 WOM (Zero Voltage Wake on Modem) ............................ 39 WOL (Wake on LAN) ................................42 AGP (Accelerated Graphic Port) ..............................
-
Page 4: Award Bios
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual Low ESR Capacitor ................................. 57 Layout (Frequency Isolation Wall) ............................59 Driver and Utility..........................60 Autorun Menu from Bonus CD Disc ............................61 Installing Windows 95 ................................62 Installing Windows 98 ................................63 Installing Windows 98 SE, Windows ME &... - Page 5 AC97 ....................................... 84 ACPI (Advanced Configuration & Power Interface)........................84 AGP (Accelerated Graphic Port) .............................. 84 AMR (Audio/Modem Riser) ..............................85 AOpen Bonus Pack CD ................................85 APM (Advanced Power Management) ............................. 85 ATA (AT Attachment)................................85 ATA/66 ..................................... 85 ATA/100 ....................................
- Page 6 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual EEPROM (Electronic Erasable Programmable ROM) ......................88 EPROM (Erasable Programmable ROM) ..........................88 EV6 Bus ....................................89 FCC DoC (Declaration of Conformity)............................89 FC-PGA (Flip Chip-Pin Grid Array) ............................89 Flash ROM ....................................
- Page 7 RIMM (Rambus Inline Memory Module)........................... 93 SDRAM (Synchronous DRAM) ..............................93 Shadow E PROM ..................................94 SIMM (Single In Line Memory Module) ............................ 94 SMBus (System Management Bus) ............................94 SPD (Serial Presence Detect) ..............................94 Ultra DMA ....................................95 USB (Universal Serial Bus)..............................
-
Page 8: You Must Notice
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it. -
Page 9: Before You Start
This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved format, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc or you can get free download from... -
Page 10: Overview
VCM (Virtual Channel Memory) can be applied to the AK73(A)-V / AK73-V and the maximum memory size can be up to 1.5GB. The on-board IDE controller supports Ultra DMA 33/66/100 mode and the transfer rate up to 100MB/s. Further flexibility can be achieved by taking advantage of the Communication and Network Riser (CNR) card option that allows audio and modem configuration on a single baseboard design. - Page 11 “Optional”. If needed, you can contact your local distributors or resellers to purchase “Upgrade Optional” components. Also you can visit AOpen official web site: www.aopen.com.tw <http://www.aopen.com.tw>...
- Page 12 Including five 32-bit/33MHz PCI slots, one CNR and one AGP slot. The PCI local bus throughput can be up to 132MB/s. The CNR (Communication and Networking Riser) slot provided from AK73(A)-V / AK73-V can support CNR interface for a Modem/Lan/Audio card.
- Page 13 On-board AC97 Sound AK73(A)-V / AK73-V uses AC97 sound chip. This on-board audio includes a complete audio recording and playback system. Power Management/Plug and Play The AK73(A)-V / AK73-V supports the power management function that confirms to the power-saving standards of the U.S.
- Page 14 RAM, S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features. Super Multi-I/O The AK73(A)-V / AK73-V provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for the wireless connections.
-
Page 15: Quick Installation Procedure
This page gives you a quick procedure on how to install your system. Follow each step accordingly. Installing CPU and Fan Installing System Memory (DIMM) Connecting Front Panel Cable Connecting IDE and Floppy Cable Connecting ATX Power Cable Connecting Back Panel Cable Power-on and Load BIOS Setup Default Setting CPU Frequency Reboot... -

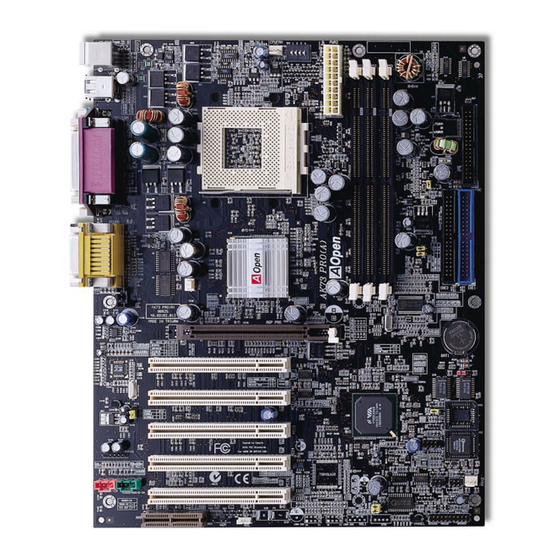

Page 16: Motherboard Map
IrDA Connector with H/W monitoring 32-bit PCI slot x5 ATX Power Connector Support 2 USB Port VIA Apollo KT133A (AK73(A)-V or KT133 (AK73-V) chipset PC-100/133 DIMM Slot x3 supports maximum up to 1.5GB 2MB Flash ROM BIOS Front Panel Connector... -
Page 17: Block Diagram
Socket A 200/266MHz FSB (EV6) 64 BIT CPU Data BUS 66MHz 1x,2x and 4xmode 100/133 MHz SDRAM and VCM VT8363A SDRAM VT8363A 100MHz Register SDRAM SDRAM (3 DIMM sockets) (3 DIMM sockets) AGP Slot :1/2/4X 33MHz 32BIT PCI Address/Data BUS Primary IDE AC97 Link IDE 1... -
Page 18: Hardware Installation
This chapter describes jumpers, connectors and hardware devices of this motherboard. Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component. Do not remove a component from its protective packaging until you are ready to install it. -
Page 19: Jp14 Clear Cmos
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. 3. Locate JP14 and short pins 2-3 for a few seconds. 4. -
Page 20: Cpu Installation
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual This motherboard supports AMD Athlon & Duron Socket 462 CPU. Be careful of CPU orientation when you plug it into CPU socket. Pull up the CPU socket lever and up to 90-degree angle. -
Page 21: Jp21 Fsb/Pci Clock & Ratio
& & This jumper is used to specify the relationship of PCI and clock. Generally speaking, if you are not an overclocker, we recommend you to set at the default setting. CPU Ratio SW1-1 SW1-2 SW1-3 SW1-4 ¡ Ð ¡ Ð... -
Page 22: Setting Cpu Frequency
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed. BIOS Setup > Frequency/Voltage Control > CPU Speed Setting CPU Ratio From 5.5x to 12.5x step 0.5x... -
Page 23: Supported Cpu Frequency
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual Core Frequency = CPU FSB * CPU Ratio Bus Clock = CPU FSB x 2 Clock = PCI Clock x 2 CPU Core Frequency EV6 Bus Clock Ratio Duron 600... - Page 24 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the BIOS setup, therefore no jumpers or switches are used.
-
Page 25: Cpu Overheat Protection
Athlon™/Duron™ Socket 462 series CPU requires heatsink with cooling fan when it is powered up. AOpen provides two new features in an easy and user friendly BIOS setting to protect your CPU investment, preventing CPU operating under overheat condition or CPU gets damaged by the high temperature if cooling fan... - Page 26 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual If the "CPU Cooling Fan Malfunction Protection" function is enabled, BIOS will monitor CPU cooling fan speed immediately. If the cooling fan speed is lower than (500) RPM or failed, the system will shutdown automatically to protect CPU. You also can set the "CPU shutdown temperature"...
-
Page 27: Cpu And Housing Fan Connector (With H/W Monitoring)
Plug in the CPU fan cable to the 3-pin CPUFAN connector. If you have housing fan, you can also plug it on FAN2 connector. CPUFAN +12V SENSOR Note: Some CPU fans do not have sensor pin, so that cannot support fan monitoring. -
Page 28: Cpu Fan On North Bridge
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual In order to provide a better effect of cooling and make the chipset work more stable, we especially design a fan on the north bridge. After locating the fan on the north bridge, plug the connector to the header marked FAN1 on the... -
Page 29: Dimm Socket
AK73(A)-V motherboard has three 168-pin DIMM sockets that allow you to install PC100 or PC133 memory up to 1.5GB. It supports not only SDRAM but also VCM and PC-100 Registered DRAM. DIMM1 DIMM2 DIMM3... - Page 30 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual Please follow the procedure as shown below to finish memory installation. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below. 20 pins 60 pins...
-
Page 31: Front Panel Connector
SPWR ACPI & IDE LED Power LED Speaker Reset SPWR Attach the power LED, Keylock, speaker, and reset switch connectors to the corresponding pins. If ACPI & PWR LED you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while IDE LED the system is in suspend mode. - Page 32 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual Suspend Type ACPI LED Power on Suspend (S1) or Suspend to Flashing for every second RAM(S3) Suspend to Disk (S4) The LED will be turned off...
-
Page 33: Atx Power Connector
The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction. +12V 5VSB PW-OK PS-ON +3.3V -12V +3.3V +3.3V... -
Page 34: Ac Power Auto Recovery
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem. -
Page 35: Ide And Floppy Connector
Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE connector. The blue connector is IDE1 for clear identification. Be careful of the pin1 orientation. Wrong orientation may cause system damage. Secondary Secondary Slave (4th) Master (3rd) IDE1 (Primary) IDE2 (Secondary) Pin 1... - Page 36 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode.
- Page 37 This motherboard supports ATA33, ATA66 ATA100 IDE devices. Following table lists the transfer rate of IDE PIO and DMA modes. The IDE bus is 16-bit, which means every transfer is two bytes. Mode Clock Period Clock Cycle Time Data Transfer Rate Count PIO mode 0 30ns...
-
Page 38: Irda Connector
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. -
Page 39: Wom (Zero Voltage Wake On Modem)
This motherboard implements special circuit to support Wake On Modem, both Internal modem card and external box modem are supported. Since Internal modem card consumes no power when system power is off, it is recommended to use an internal modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the motherboard. - Page 40 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual Traditional Green PC suspend mode does not really turn off the system power supply, it uses external box modem to trigger MB COM port and resume back to active. Serial Port...
- Page 41 With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer a phone call as an answering machine or to send/receive a fax. You may identify whether or not your system is in true power off mode by checking to see if the fan of your power supply is off.
-
Page 42: Wol (Wake On Lan)
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector. - Page 43 WOL Connector (Ethernet Card Side) WOL Connector (Motherboard Side)
-
Page 44: Agp (Accelerated Graphic Port)
AK73(A)-V / AK73-V Online Manual The AK73(A)-V / AK73A-V provides an 4x slot. The AGP 4x is a bus interface targeted for high-performance 3D graphic. Recently, there are more memory modules on the AGP card. Hence, the AGP card needs more power to drive these chips. -
Page 45: Cnr (Communication And Network Riser)
is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel audio, and phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be implemented in main chipset and share CPU power. The analogy conversion (CODEC) circuit requires a different and separate circuit design, which is put on CNR card. -
Page 46: Pc99 Color Coded Back Panel
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, Printer, four USB, AC97 sound and Game port. The view angle of drawing shown here is from the back panel of the housing. -
Page 47: Support 2 Nd Usb Port
This motherboard can support up to four USB ports. Two of them are built on the back panel, and one USB header on the motherboard can provide two more ports by connecting a proper USB cable. After connecting the USB header, please screw the bracket on the other end of USB cable to the back housing. -
Page 48: Cd Audio Connector
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual This black connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound. CD-IN... -
Page 49: Modem Audio Connector
This connector is used to connect Mono In/Mic Out cable from internal modem card to onboard sound circuit. The pin 1-2 is Mono In, and the pin 3-4 is Mic Out. Please note that there is no standard for this kind of connector yet, only some internal modem cards implement this connector. -
Page 50: Video-Audio-In Connector
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual This green connector is used to connect MPEG Audio cable from MPEG card to onboard sound. VIDEO_AUDIO_IN... -
Page 51: Front Panel Audio
If the housing has been design with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. Pin1 MIC_IN2 MICBIAS2 RET_R FRONT_R RET_L FRONT L... -
Page 52: Battery-Less And Long Life Design
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without the need of a battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. -
Page 53: Over-Current Protection
The Over Current Protection was very popular implemented on ATX 3.3V/5V/12V switching power supply. However, the new generation CPU uses different voltage that has regulator to transfer 5V to CPU voltage (for example, 2.0V), and makes 5V over current protection useless. This motherboard is with switching regulator onboard supports CPU over-current protection; in conjunction with 3.3V/5V/12V power supply provide the full line over-current protection. - Page 54 CPU, memory, HDD, add-on cards installed on this motherboard may be damaged because of component failure, human operating error or unknown nature reason. AOpen cannot guarantee that the protection circuit can always work perfectly.
-
Page 55: Hardware Monitoring
This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will continue to monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status goes wrong, there will be an alarm through the AOpen Hardware Monitoring Utility to warn the user. -
Page 56: Resettable Fuse
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual Traditional motherboard has fuse for Keyboard and port to prevent over-current or shortage. These fuses are soldered onboard that when it is broken (did the job to protect motherboard), user still cannot replace it and the motherboard is still malfunction. -
Page 57: Low Esr Capacitor
The quality of low ESR capacitor (Low Equivalent Series Resistance) is very important for the stability of CPU power especially during high frequency operation. The location of these capacitors requires well-experienced and precise calculation. - Page 58 AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as some new generation CPUs whose clock values are higher than 1 GHz, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V.
-
Page 59: Layout (Frequency Isolation Wall)
CPU working in stable condition. The layout of this motherboard implements AOpen’s unique design called “ Frequency Isolation Wall”. Separating each critical portion of motherboard into regions where each region operates in a same or similar frequency range to avoid cross talk and frequency interference between each region’s operations... -
Page 60: Driver And Utility
AK73(A)-V / AK73-V Online Manual AK73(A)-V / AK73-V Online Manual There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows 98) before you can install any drivers or utilities. -
Page 61: Autorun Menu From Bonus Cd Disc
You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select model name. -
Page 62: Installing Windows 95
First, don’t install any add-on card except card. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB support. Otherwise, you need to install USBSUPP.EXE. Install the VIA 4 in 1 driver, which includes VIA AGP Vxd driver, VIA ATAPI Vendor Support driver and VIA registry (INF) program. -
Page 63: Installing Windows 98
First, don’t install any add-on card except card. Enable USB Controller in BIOS Setup > Advanced Chipset Features > Controller, to make BIOS fully capable of controlling IRQ assignment. Install Window 98 into your system. Install the VIA 4 in 1 driver, which includes VIA AGP Vxd driver, IRQ Routing, VIA ATAPI Vendor Support driver and VIA registry (INF) program. -
Page 64: Installing Windows 98 Se, Windows Me & Windows2000
& & ® ® ® If you are using Windows 98 Second Edition, Windows Millennium Edition or Windows 2000, you do not need to install the 4-in-1 driver as the IRQ Routing Driver and the ACPI Registry are already incorporated into the operating system. Users with ®... -
Page 65: Installing Via 4 In 1 Driver
You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD disc Autorun menu. Note: Installing this Bus Master IDE driver may cause Suspend to Hard Drive failure. -
Page 66: Installing Onboard Sound Driver
This motherboard comes with RealTek ALC201 chip; you can find the audio driver from the Bonus Pack CD disc auto-run menu. -
Page 67: Installing Hardware Monitoring Utility
You can install Hardware Monitoring Utility to monitor CPU temperature, fans and system voltage. The hardware monitoring function is automatically implemented by the BIOS and utility software. No hardware installation is needed. -
Page 68: Acpi Suspend To Hard Drive
ACPI Suspend to Hard Drive is basically controlled by Windows operation system. It saves your current work (system status, memory and screen image) into hard disk, and then the system can be totally power off. Next time, when power is on, you can resume your original work directly from hard disk within few seconds without go through the Windows booting process and run your application again. - Page 69 When go into Suspend: System Hard Image & Disk Save into Status When power-on next time: System Hard Image & Disk Status Restore within seconds...
-
Page 70: System Requirement
System Requirement AOZVHDD.EXE 1.30b or later. Delete config.sys and autoexec.bat. Fresh installation of Windows 98 on a new system 1. Execute "Setup.exe /p j" to install Windows 98 2. After Windows 98's installation is complete, go to the Control Panel > Power Management. a. - Page 71 Changing from APM to ACPI (Windows 98 only) 1. Run "Regedit.exe" a. Go through the following path HKEY_LOCAL_MACHINE SOFTWARE MICROSOFT WINDOWS CURRENT VERSION DETECT b. Select "ADD Binary" and name it as "ACPIOPTION". c. Right click and select Modify, add "01" after "0000" to make it "0000 01". d.
- Page 72 4. Run "Add New Hardware" again and it will find "Advanced Power Management Resource". 5. Click "OK". Tip: Currently we found only ATI 3D Rage Pro AGP card could support ACPI suspend to disk. Please refer to AOpen web site for latest update.
-
Page 73: Acpi Suspend To Ram (Str)
This motherboard supports ACPI Suspend to RAM function. With this function, you can resume your original work directly from DRAM without going through the Windows 98 booting process and run your application again. Suspend to DRAM saves your current work in the system memory, it is faster than Suspend to Hard Drive but requires power supplied to DRAM, while Suspend to Hard Drive requires no power. - Page 74 To implement ACPI Suspend to DRAM, please follow the procedures as below: System Requirement An ACPI OS is required. Currently, except Windows 95 and Windows NT, all other Windows systems support ACPI. The VIA 4 in 1 Driver must have been installed properly. Procedures Changed the following BIOS settings.
-
Page 75: Award Bios
BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports. Most BIOS setting of AK73(A)-V/AK73-V had optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup. -
Page 76: About Bios Function Description
… AOpen always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM. When you select one function of BIOS setup program, the function description will appeared at right side of screen. -
Page 77: How To Use Award™ Bios Setup Program
Award™ BIOS setup program. The following table provides details about how to use keyboard in the Award™ BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key selecting preferred menu language to display. - Page 78 Load fail-save setting value from CMOS. Load turbo setting value from CMOS. Save changed setting and exit setup program. Note: AOpen always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM.
-
Page 79: How To Enter Bios Setup
After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance. De l Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, DRAM, HDD, etc.) are good enough for turbo setting. -
Page 80: Bios Upgrade
By doing so, you are taking a risk of BIOS flash failure. If you indeed intent on upgrading, PLEASE BE SURE to use the right BIOS revision for the right motherboard model. AOpen Easy Flash is a little different than traditional flash method. The BIOS binary file and flash routine are linked together and you simply run a single commend to complete the flash process. - Page 81 Below are the steps for easy flashing procedures: (applies for Award BIOS ONLY) 1. Download new BIOS upgrade file from AOpen's web site. For example, AK73AV102.ZIP. 2. Run shareware PKUNZIP (http://www.pkware.com/) which supports miscellaneous operation systems to extract the binary BIOS file and the flash utility.
-
Page 82: Overclocking
As a leading manufacturer in motherboard industry, AOpen always listens to what customers want and develop products to fit different user's requirements. Reliability, compatibility, leading technology and friendly features are our basic goals when designing motherboards. Other than above mentioned design criteria, there are power users who are always seeking to push the limitation of the system performance by overclocking which we call them "Overclocker". -
Page 83: Vga Card & Hard Disk
VGA and HDD is key components for overclocking, for your reference, the following list are what have been successful overclocked in our lab. Please note that AOpen can not guaranty they can be successful overclocked again. Please check the Available Vendor List (AVL) by link to our official website. -
Page 84: Glossary
AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the... -
Page 85: Amr (Audio/Modem Riser)
Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM power management. ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification together. -
Page 86: Ata/100
ATA/100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire IDE cable, the same as ATA/66. -
Page 87: Codec (Coding And Decoding)
Normally, CODEC means a circuit that can do digital to analog conversion and also the analog to digital conversion. It is part of AC97 sound/modem solution. DDR SDRAM utilizes the existing DRAM infrastructure and technology while doubling the nominal bandwidth available to systems in an easy to design and simple to adopt way. -
Page 88: Ecc (Error Checking And Correction)
The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error. -
Page 89: Ev6 Bus
Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is the first board to implement 256KB (2Mbit) Flash ROM. -
Page 90: Fsb (Front Side Bus) Clock
FSB Clock means CPU external bus clock. CPU internal clock = CPU FSB Clock x CPU Clock Ratio See SMBus. IEEE 1394 is a low-cost digital interface originated by Apple Computer as a desktop LAN and developed by the IEEE 1394 working group. -
Page 91: Parity Bit
The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated, parity bit will be adjusted to have even count "1" for each byte. When next time, if memory is read with odd number of "1", the parity error is occurred and this is called single bit error detection. -
Page 92: Pc-1600 Or Pc-2100 Ddr Dram
Based on FSB frequency, the DDR DRAM has 200MHz and 266MHz two type of working frequency. Because of DDR DRAM data bus is 64-bit, it provides data transfer bandwidth up to 200x64/8=1600MB/s, and 266x64/8=2100MB/s. Hence, the PC-1600 DDR DRAM is working with 100MHz and PC-2100 DDR DRAM is working with 133MHz FSB frequency. Bus for the internal connection of peripheral devices, high-speed data channel between the computer and expansion card. -
Page 93: Post (Power-On Self Test)
It is similar as PBSRAM to use burst mode transfer. SDRAM comes in 64-bit 168-pin DIMM and operates at 3.3V. AOpen is the first company to support dual-SDRAM DIMMs onboard (AP5V), from Q1 1996... -
Page 94: Shadow E 2 Prom
A memory space in Flash-ROM to simulate E PROM operation, AOpen motherboard uses Shadow E PROM for jumper-less and battery-less design SIMM socket is only 72-pin, and is only single side. The golden finger signals on each side of PCB are identical. That is why it was called Single In Line. -
Page 95: Ultra Dma
Ultra DMA (or, more accurately, Ultra DMA/33) is a protocol for transferring data between a hard disk drive through the computer’s data path (or bus) to the computer’s random access memory (RAM). The Ultra DMA/33 protocol transfers data in burst mode at a rate of 33.3MB/s, twice as fast as the previous Direct Access Memory (DMA) interface. -
Page 96: Vcm (Virtual Channel Memory)
NEC’s Virtual Channel Memory (VCM) is a new DRAM core architecture that dramatically improves the memory system’s ability to service multimedia requirements. VCM increases memory bus efficiency and performance of any DRAM technology by providing a set of fast static registers between the memory core and I/O pins. Using VCM technology results in reduced data access latency and reduced power consumption. -
