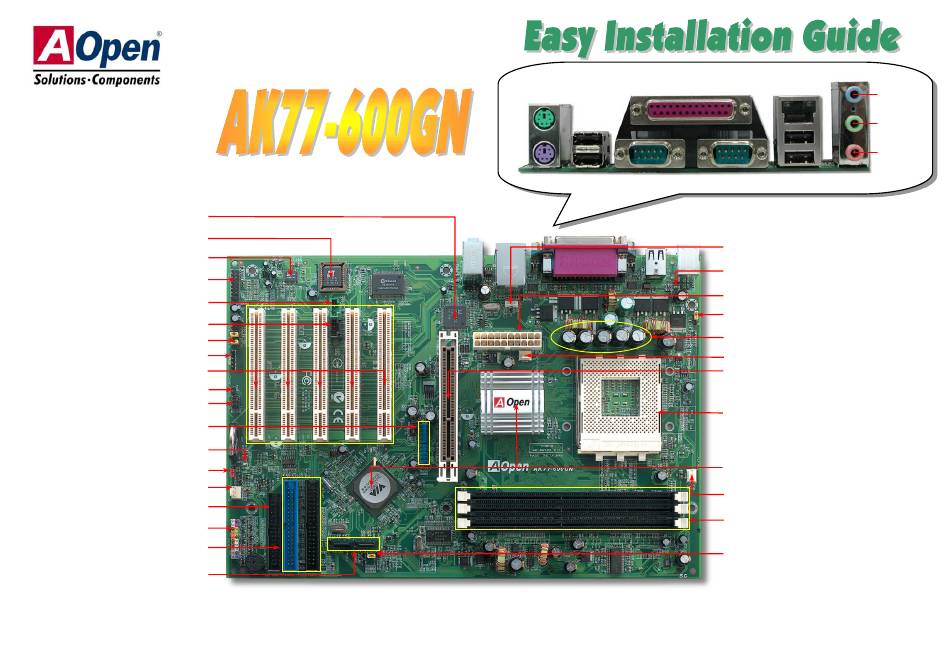

Realtek LAN Chip
2Mb Flash ROM BIOS
Onboard AC'97 CODEC
GAME Port Connector
AUX-IN Connector
CD-IN Connector
Front Audio Connector
S/PDIF Connector
32-bit PCI Expansion Slots x5
Case Open Connector
IrDA Connector
USB 2.0 Connectors x2
STBY LED
JP14 CMOS Clear Jumper
SYSFAN2 Connector
FDD Connector
Front Panel Connector
ATA 66/100/133 IDE Connectors x2
SATA Connectorsx2
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
USB Ports
PS/2 Keyboard
COM 1 Port
Connector
RJ45 LAN Jack
Line-In
Speaker Out
MIC-In
COM 2 Port
USB Ports
Wake On LAN Connector
Resetable Fuse
ATX Power Connector
JP28 Keyboard/Mouse Wakeup Jumper
3300
F Low ESR Capacitors
μ
SYSFAN1 Connector
8X AGP slot
462-pin
CPU
Socket
with
Voltage
Frequency
Auto-Detection
that
TM
TM
TM
AMD
Athlon
/ Duron
/ and Athlon
(with CPU Overheat Protection circuit to
TM
Athlon
XP CPU only)
®
VIA
Apollo KT600 / VT8237 Chipsets
CPUFAN Connector
184-pin DIMMsx3 supports
DDR 266/333/400 (Max to 3GB)
JP21 K7 Host Clock Select Jumper
and
supports
TM
XP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen AK77-600GN
Summary of Contents for AOpen AK77-600GN
- Page 1 DDR 266/333/400 (Max to 3GB) ATA 66/100/133 IDE Connectors x2 JP21 K7 Host Clock Select Jumper SATA Connectorsx2 AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
- Page 2 1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this motherboard is included in this 2.
- Page 3 <Home> key to restore the Athlon 1.33G 1.33GHz 266MHz 10.0x default setting or you can Athlon 1.4G 1.4GHz 266MHz 10.5x wait till the AOpen “Watch AthlonXP 1500+ 1.3GHz 266MHz 10.0x Dog ABS” reset the system AthlonXP 1600+ 1.4GHz 266MHz 10.5x...
- Page 4 6. JP21 K7 Host Clock Selection 8. S/PDIF Connector This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides you are not an over-clocker, we recommend you to set it to the default setting. Additionally, impressive audio quality through optical fiber and allows you to enjoy digital audio instead of analog this motherboard also provides “1MHz Stepping Adjustment”...
- Page 5 12. Front Audio Connector 10. Connecting Front Panel Cable If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove Power Switch 5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable.
- Page 6 BIOS Setup, press <Del> during POST (Power On Self Test). upgrading. Choose "Load Setup Defaults" for recommended optimal performance. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw) Unzip the download BIOS package (ex: WAK77600GN102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
- Page 7 IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AK77-600GN is model name of motherboard; R1.00 is BIOS version...
- Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. Dear Customer, http://download.aopen.com.tw/downloads Thanks for choosing AOpen products.
