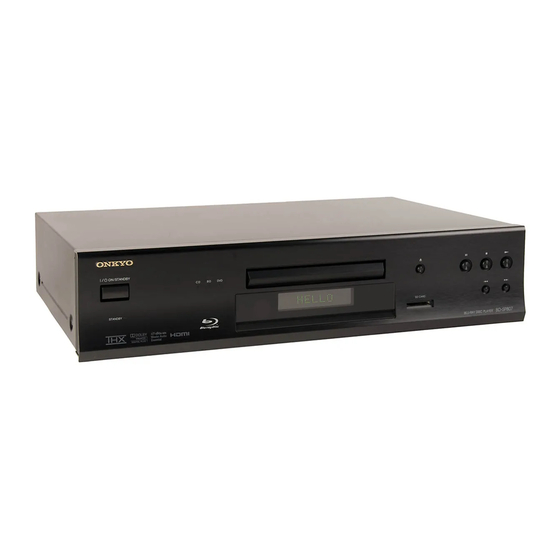

Onkyo BD-SP807 Quick Start Manual

Blu-ray Disc Player

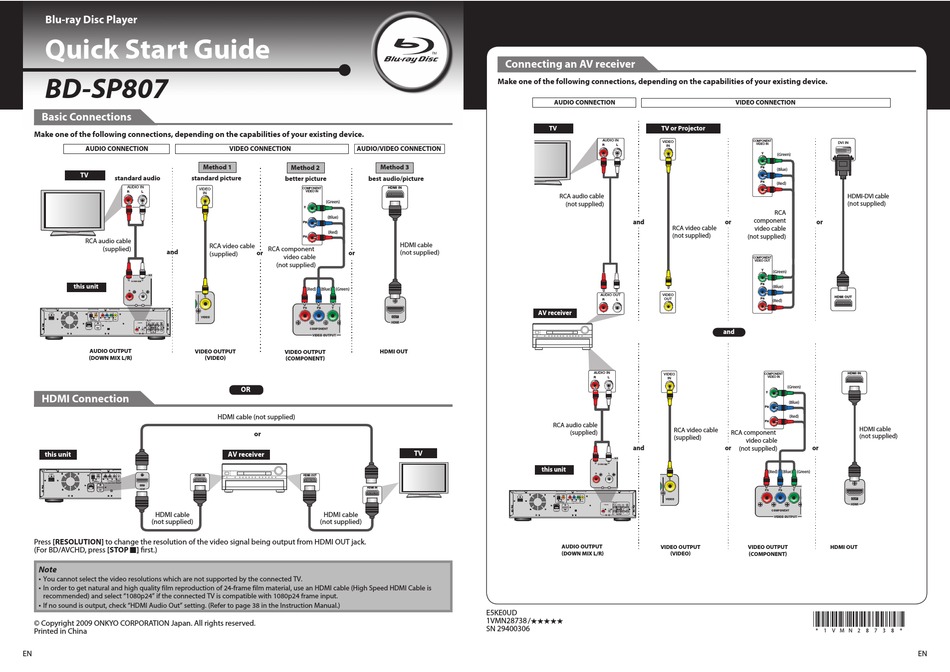

Quick Start Guide

BD-SP807
Basic Connections
Make one of the following connections, depending on the capabilities of your existing device.
AUDIO CONNECTION
TV
standard audio standard picture
AUDIO IN
VIDEO
R L
RCA audio cable
(supplied)
and
this unit
AUDIO OUTPUT VIDEO OUTPUT
(DOWN MIX L/R)
HDMI Connection
this unit
HDMI IN
HDMI cable
(not supplied)
Press [RESOLUTION] to change the resolution of the video signal being output from HDMI OUT jack.
(For BD/AVCHD, press [STOP C] fi rst.)
Note
• You cannot select the video resolutions which are not supported by the connected TV.
•
In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed HDMI Cable is
recommended) and select "1080p24" if the connected TV is compatible with 1080p24 frame input.
•
If no sound is output, check "HDMI Audio Out" setting. (Refer to page 38 in the Instruction Manual.)
© Copyright 2009 ONKYO CORPORATION Japan. All rights reserved.
Printed in China
EN
VIDEO CONNECTION AUDIO/VIDEO CONNECTION
Method 1
Method 2 Method 3
better picture best audio/picture
COMPONENT
VIDEO IN
IN
(Green)
Y
(Blue)
P B
(Red)
P R
RCA video cable
RCA component
or or
(supplied)
video cable
(not supplied)
(Red) (Blue) (Green)
HDMI OUT
VIDEO OUTPUT
(VIDEO) (COMPONENT)
OR
HDMI cable (not supplied)
or
AV receiver
HDMI OUT
HDMI IN
HDMI cable
(not supplied)
Connecting an AV receiver
Make one of the following connections, depending on the capabilities of your existing device.
AUDIO CONNECTION
TV
HDMI IN
RCA audio cable
(not supplied)
HDMI cable
(not supplied)
AV receiver
RCA audio cable
TV
this unit
AUDIO OUTPUT
(DOWN MIX L/R)
E5KE0UD
1VMN28738 /★★★★★
SN 29400306
VIDEO CONNECTION
TV or Projector
AUDIO IN
VIDEO
R L IN
and or
RCA video cable
(not supplied)
(not supplied)
VIDEO
AUDIO OUT
OUT
R L
and
AUDIO IN AUDIO IN
VIDEO
R L
IN
RCA video cable
(supplied) RCA component
(supplied)
video cable
and or (not supplied)
VIDEO OUTPUT VIDEO OUTPUT
(VIDEO)
(COMPONENT)
COMPONENT
DVI IN
VIDEO IN
Y
(Green)
P
B
(Blue)
P R
(Red)
HDMI-DVI cable
(not supplied)
RCA
component
or
video cable
COMPONENT
VIDEO OUT
Y
(Green)
P B
(Blue)
HDMI OUT
P
R
(Red)
HDMI IN
COMPONENT
VIDEO IN
(Green)
Y
(Blue)
P
B
(Red)
P R
HDMI cable
(not supplied)
or
(Red) (Blue) (Green)
HDMI OUT
EN
