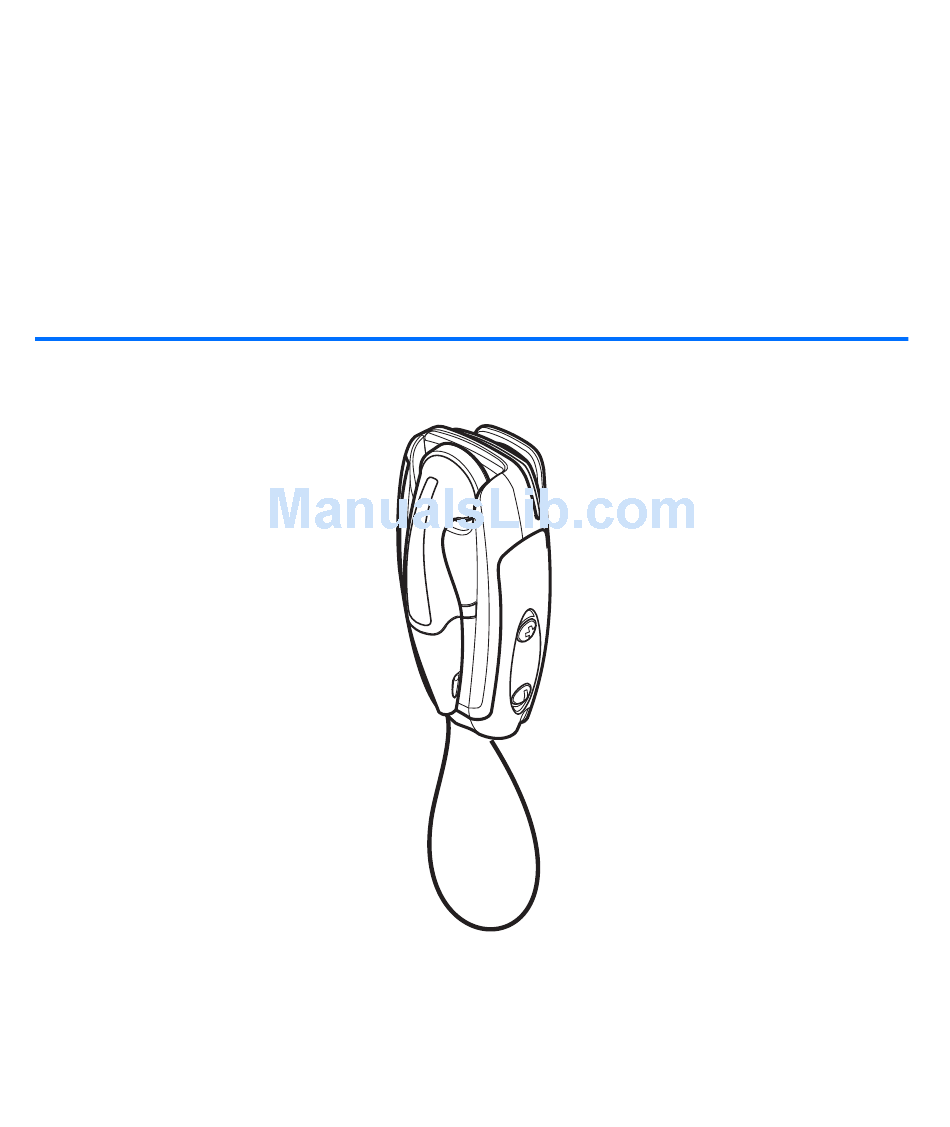

User Guide for the
Wireless Clip-on Headset
(HS-21W)
9236329
Issue 1

Advertisement

   Also See for Nokia HS-21W

   Related Manuals for Nokia HS-21W

   Summary of Contents for Nokia HS-21W

  • Page 1

    User Guide for the Wireless Clip-on Headset (HS-21W) 9236329 Issue 1...

  • Page 2

    DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product HS-21W is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/ declaration_of_conformity/.

  • Page 3

    Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied,...

  • Page 4: Table Of Contents

    C o n t e n t s Contents 1. Introduction .............. 6 Bluetooth wireless technology ............6 2. Getting started............8 Overview....................9 Chargers and batteries ............... 12 Removing and installing the battery..........12 Charging the battery ................15 Switching the headset on or off............

  • Page 5

    C o n t e n t s Rejecting a call..................24 Automatic answer ................24 Adjusting the earphone volume ............25 Muting a call..................25 Switching the call between phone and headset ......25 Using the headset with several phones......... 26 Resetting the headset ................

  • Page 6: Introduction

    I n t r o d u c t i o n 1. Introduction The Wireless Clip-on Headset HS-21W can be connected to a compatible mobile phone that supports Bluetooth wireless technology. This allows you freedom to make and receive calls while on the move or in the office.

  • Page 7

    10 meters of each other. Connections can be subject to interference from obstructions, such as walls, or other electronic devices. The HS-21W headset is specially designed for compatible Nokia mobile phones that support Bluetooth wireless technology. The headset can, however, be used with any compatible devices that support the compatible Handsfree or Headset profiles.

  • Page 8: Getting Started

    G e t t i n g s t a r t e d 2. Getting started Note that there may be restrictions using Bluetooth wireless technology in some locations. Check with your local authorities or service provider.

  • Page 9: Overview

    G e t t i n g s t a r t e d ■ Overview The headset contains the following parts, as shown in Figure 1. Figure 1...

  • Page 10

    G e t t i n g s t a r t e d Note: Parts of the headset are magnetic. Metallic materials may be attracted to the headset, and persons with a hearing aid or a pacemaker should not hold the headset to the ear with the hearing aid or close to the pacemaker.

  • Page 11

    G e t t i n g s t a r t e d Volume up (4): Increases the earphone volume during a call. Volume down (5): Decreases the earphone volume during a call. Earphone (6): Relays the caller’s voice. Microphone (7): Picks up your voice.

  • Page 12: Chargers And Batteries

    G e t t i n g s t a r t e d ■ Chargers and batteries Check the model number of any charger before using it with this device. The headset HS-21W is intended for use with the following chargers: AC-1, ACP-12, and LCH-12. Warning: Use only batteries and chargers approved by Nokia for use with this particular enhancement.

  • Page 13

    G e t t i n g s t a r t e d The headset has a rechargeable LiPo battery. To change it: 1. To open the battery cover, gently push the release button and slide the battery cover backwards. See Figure 2.1.

  • Page 14

    G e t t i n g s t a r t e d 6. Make sure that the cover is properly locked in place. See Figure 2.6. Figure 2...

  • Page 15: Charging The Battery

    G e t t i n g s t a r t e d ■ Charging the battery 1. Connect the charger cable to the headset as shown in Figure 3. Figure 3...

  • Page 16

    G e t t i n g s t a r t e d 2. Connect the charger to a wall outlet. The red indicator light is displayed during charging. If the battery is completely discharged, it may take a few minutes before the red indicator is shown.

  • Page 17: Switching The Headset On Or Off

    G e t t i n g s t a r t e d ■ Switching the headset on or off To switch on, press and hold the power key for 2 seconds. The headset beeps and the green indicator light starts blinking fast.

  • Page 18

    G e t t i n g s t a r t e d 5. Select the headset from the list. 6. Enter the passcode 0000 to associate ("pair") and connect the headset to your phone. In some phones you may need to make the connection separately.

  • Page 19: Disconnecting The Headset

    G e t t i n g s t a r t e d Disconnecting the headset You can disconnect the headset from your phone when, for example, you want to connect another device with your phone using the Bluetooth wireless technology. The headset can be disconnected in the following ways: •...

  • Page 20: Connecting The Paired Headset

    In this case, the headset can connect to your phone automatically when it is switched on. In Nokia phones this can be done by changing your paired devices settings in the Bluetooth menu. ■ Troubleshooting...

  • Page 21

    G e t t i n g s t a r t e d • Make sure that the Bluetooth feature is activated on your phone. • Check that the headset is within 10 meters of your phone and that there are no obstructions between the headset and the phone, such as walls or other electronic devices.

  • Page 22: Using The Headset

    U s i n g t h e h e a d s e t 3. Using the headset Carry the headset by attaching it to your clothing as shown in Figure 4, or wear it around your neck using the neck strap as shown in Figure 5.

  • Page 23: Making A Call

    U s i n g t h e h e a d s e t ■ Making a call When the headset is connected to your phone, make a call by using your phone in the normal way. ■ Redialing the last dialed number Press the answer/end key twice briefly when no call is in progress.

  • Page 24: Answering And Ending A Call

    U s i n g t h e h e a d s e t ■ Answering and ending a call Press the answer/end key to answer the call or to end the currently active call. You can also answer or end the call by using your phone in the normal way.

  • Page 25: Adjusting The Earphone Volume

    ■ Switching the call between phone and headset You can switch the active call between the headset and a compatible Nokia phone. To switch the call from the headset to a phone and vice versa, press and hold the answer/end key for 2 seconds, or...

  • Page 26: Using The Headset With Several Phones

    U s i n g t h e h e a d s e t ■ Using the headset with several phones The headset can be paired with up to eight phones but connected to only one phone at a time. The phone that was first paired with the headset is called the default phone.

  • Page 27: Resetting The Headset

    U s i n g t h e h e a d s e t ■ Resetting the headset You can reset the headset to its original settings (for example, to change the default user of the headset). When you reset the headset, all of its settings, including pairing information, are cleared.

  • Page 28: Battery Information

    When the talk and standby times are noticeably shorter than normal, buy a new battery. Use only Nokia approved batteries, and recharge your battery only with Nokia approved chargers designated for this device.

  • Page 29

    B a t t e r y i n f o r m a t i o n Use the battery only for its intended purpose. Never use any charger or battery that is damaged. Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object such as a coin, clip, or pen causes direct connection of the positive (+) and negative (-) terminals of the battery.

  • Page 30

    B a t t e r y i n f o r m a t i o n Do not dispose of batteries in a fire! Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.

  • Page 31: Care And Maintenance

    C a r e a n d m a i n t e n a n c e Care and maintenance Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you protect your warranty coverage.

  • Page 32

    C a r e a n d m a i n t e n a n c e • Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
