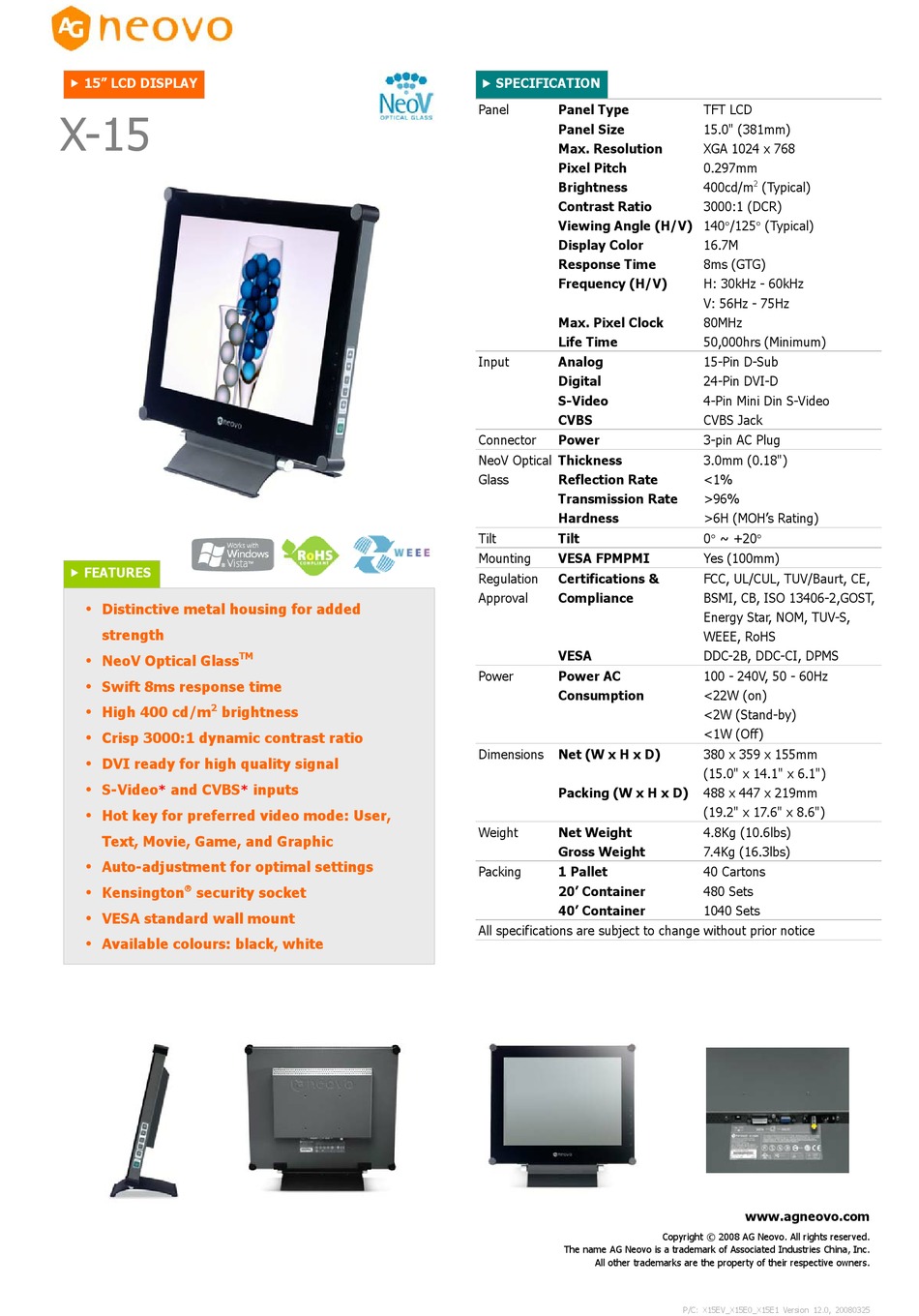

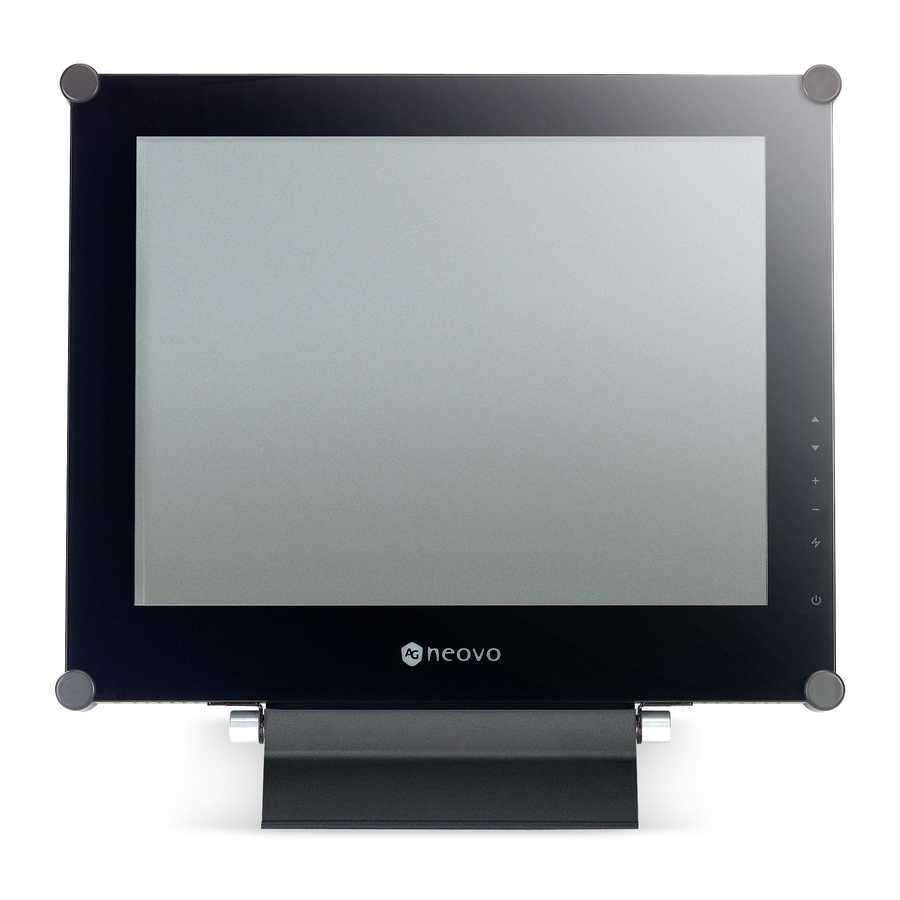

15" LCD DISPLAY
X-15
FEATURES
Distinctive metal housing for added
strength
NeoV Optical Glass
Swift 8ms response time
2
High 400 cd/m
brightness
Crisp 3000:1 dynamic contrast ratio
DVI ready for high quality signal
S-Video
and CVBS
*
Hot key for preferred video mode: User,
Text, Movie, Game, and Graphic
Auto-adjustment for optimal settings
Kensington
security socket
VESA standard wall mount
Available colours: black, white
TM
inputs
*
SPECIFICATION
Panel
Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V) 140°/125° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input
Analog
Digital
S-Video
CVBS
Connector
Power
NeoV Optical
Thickness
Glass
Reflection Rate
Transmission Rate
Hardness
Tilt
Tilt
Mounting
VESA FPMPMI
Regulation
Certifications &
Approval
Compliance
VESA
Power
Power AC
Consumption
Dimensions
Net (W x H x D)
Packing (W x H x D)
Weight
Net Weight
Gross Weight
Packing
1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
15.0" (381mm)
XGA 1024 x 768
0.297mm
400cd/m
2
(Typical)
3000:1 (DCR)
16.7M
8ms (GTG)
H: 30kHz - 60kHz
V: 56Hz - 75Hz
80MHz
50,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
4-Pin Mini Din S-Video
CVBS Jack
3-pin AC Plug
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
0° ~ +20°
Yes (100mm)
FCC, UL/CUL, TUV/Baurt, CE,
BSMI, CB, ISO 13406-2,GOST,
Energy Star, NOM, TUV-S,
WEEE, RoHS
DDC-2B, DDC-CI, DPMS
100 - 240V, 50 - 60Hz
<22W (on)
<2W (Stand-by)
<1W (Off)
380 x 359 x 155mm
(15.0" x 14.1" x 6.1")
488 x 447 x 219mm
(19.2" x 17.6" x 8.6")
4.8Kg (10.6lbs)
7.4Kg (16.3lbs)
40 Cartons
480 Sets
1040 Sets
www.agneovo.com
Copyright © 2008 AG Neovo. All rights reserved.
P/C: X15EV_X15E0_X15E1 Version 12.0, 20080325
