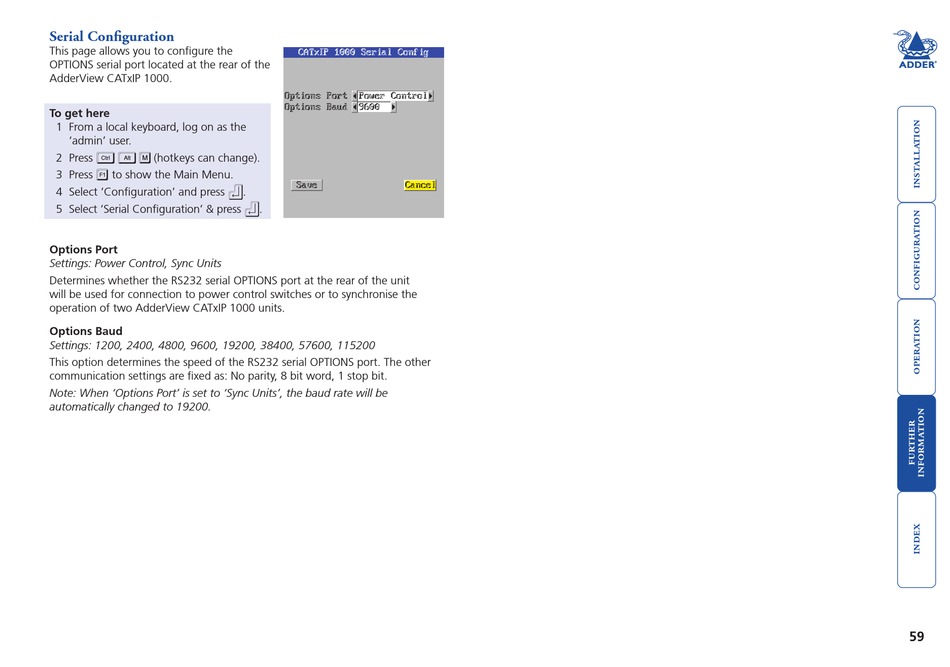

Serial Configuration

This page allows you to configure the
OPTIONS serial port located at the rear of the
AdderView CATxIP 1000.
To get here
1 From a local keyboard, log on as the
'admin' user.
2 Press (hotkeys can change).
3 Press to show the Main Menu.
4 Select 'Configuration' and press
5 Select 'Serial Configuration' & press
Options Port
Settings: Power Control, Sync Units
Determines whether the RS232 serial OPTIONS port at the rear of the unit
will be used for connection to power control switches or to synchronise the
operation of two AdderView CATxIP 1000 units.
Options Baud
Settings: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
This option determines the speed of the RS232 serial OPTIONS port. The other
communication settings are fixed as: No parity, 8 bit word, 1 stop bit.
Note: When 'Options Port' is set to 'Sync Units', the baud rate will be
automatically changed to 19200.
   
   
  
 
.
.
