Power in connection

The AdderView CATxIP 1000 unit is supplied
with a standard 5V power adapter. There is no
on/off switch on the unit, so operation begins
as soon as a power adapter is connected.

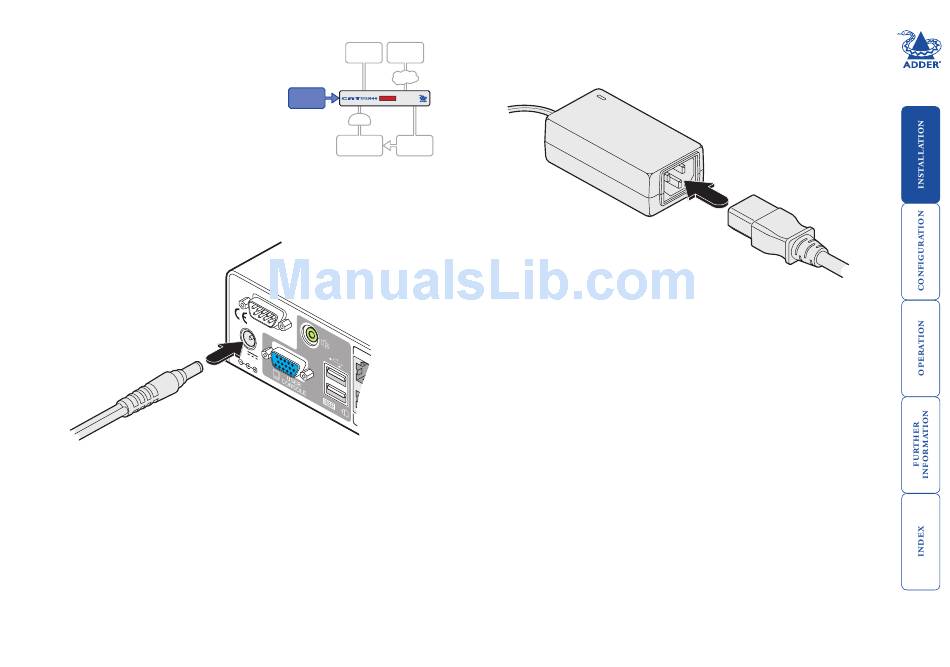

To connect the power supply
1 Attach the output lead from the power adapter to the
panel of the AdderView CATxIP 1000.
output lead from
power adapter
LOCAL GLOBAL
USER USER
IP
POWER
IN
CAM
COMPUTER POWER
SYSTEM SWITCH
socket on the rear
5V
AdderView CATxIP
000 rear panel
O P
T I O
N S
5 V
2 . 0
1 6
A
1
1 2
C O
1
M P
U T
2 Connect the IEC connector of the supplied country-specific power lead to
the socket of the power adapter.
3 Connect the power lead to a nearby main supply socket.
Note: Both the AdderView CATxIP 1000 and its power supply generate heat
when in operation and will become warm to the touch. Do not enclose them
or place them locations where air cannot circulate to cool the equipment. Do
not operate the equipment in ambient temperatures exceeding 40 degrees
Centigrade. Do not place the products in contact with equipment whose surface
temperature exceeds 40 degrees Centigrade.
