Installation and connection

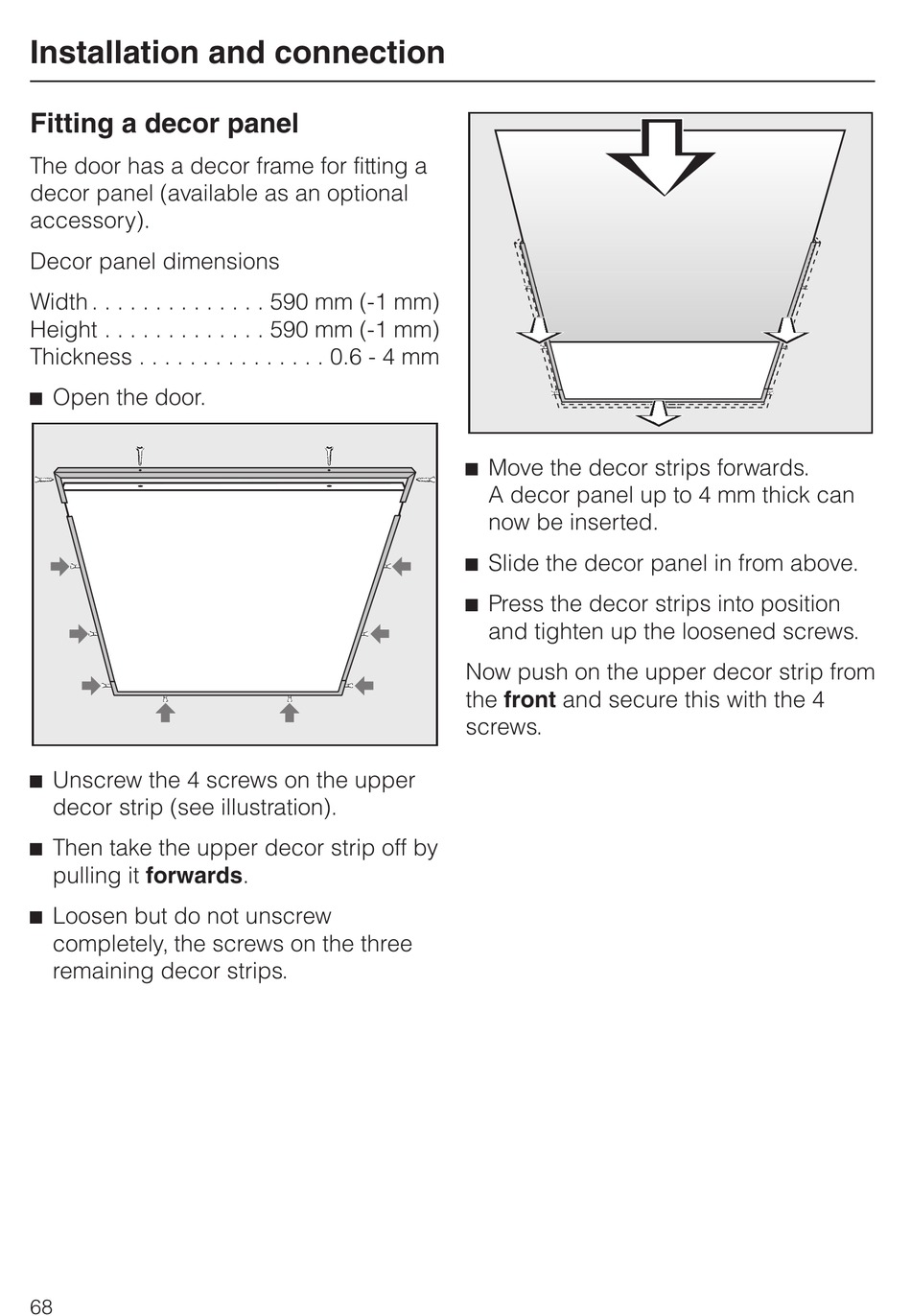

Fitting a decor panel

The door has a decor frame for fitting a
decor panel (available as an optional
accessory).
Decor panel dimensions
Width . . . . . . . . . . . . . . 590 mm (-1 mm)
Height . . . . . . . . . . . . . 590 mm (-1 mm)
Thickness . . . . . . . . . . . . . . . 0.6 - 4 mm
^ Open the door.
^ Unscrew the 4 screws on the upper
decor strip (see illustration).
^ Then take the upper decor strip off by
pulling it forwards.
^ Loosen but do not unscrew
completely, the screws on the three
remaining decor strips.
68
^ Move the decor strips forwards.
A decor panel up to 4 mm thick can
now be inserted.
^ Slide the decor panel in from above.
^ Press the decor strips into position
and tighten up the loosened screws.
Now push on the upper decor strip from
the front and secure this with the 4
screws.
