Placing the SP-5Bs

Placing the speakers is one of the most important procedures in order to monitor
sound accurately. To monitor with the SP-5Bs at their maximum capability, an
appropriate listening environment and correct placement is required. Please,
refer to the following in order to place the SP-5Bs correctly.

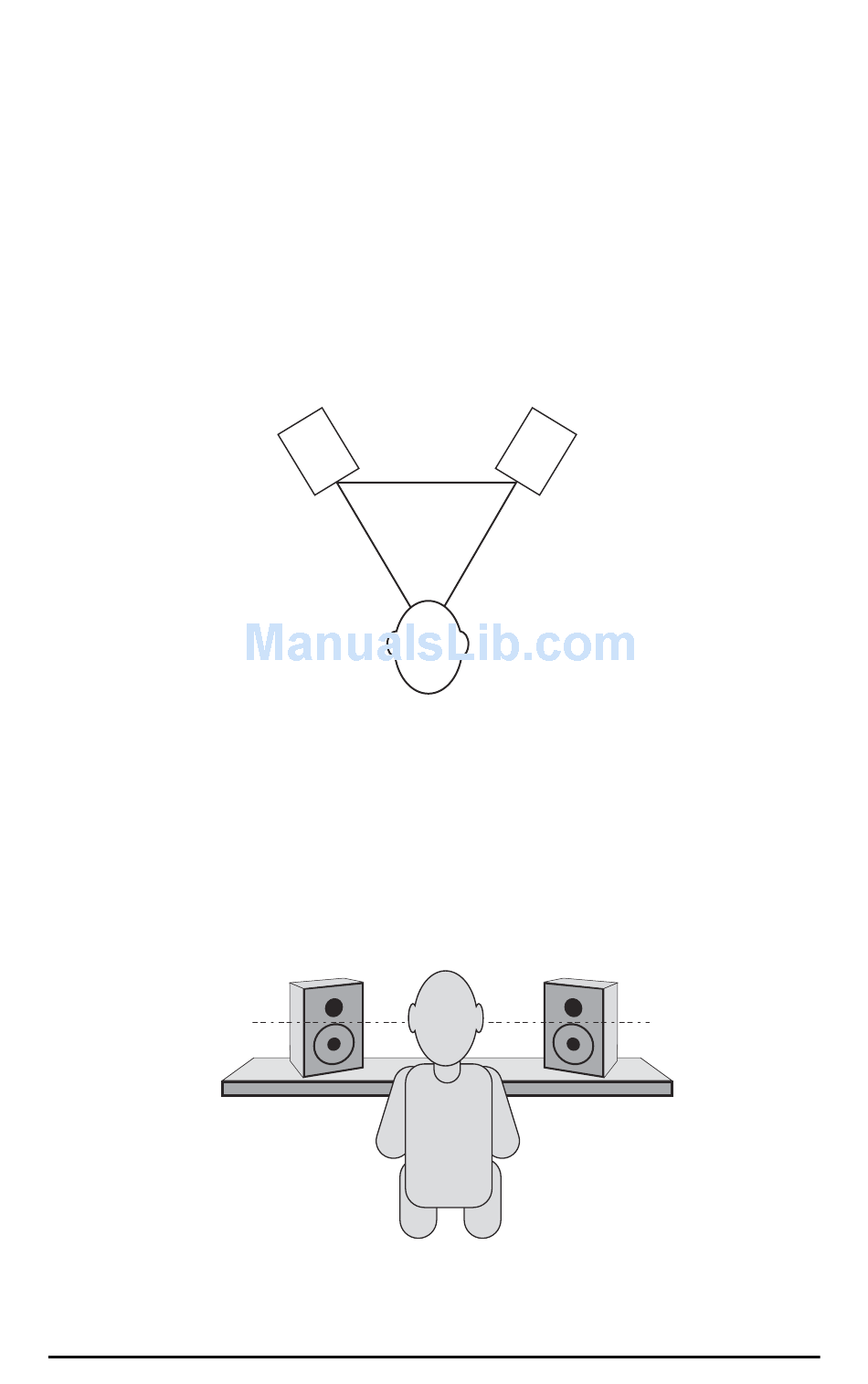

1. Basically, the two units and the listener should align to form a regular triangle.
Refer to the following diagram.
2. The height of the units, more precisely, the top of the woofer, should come up
to where your ears are in a normal listening environment. Refer to the
following diagram.
left unit right unit
8
