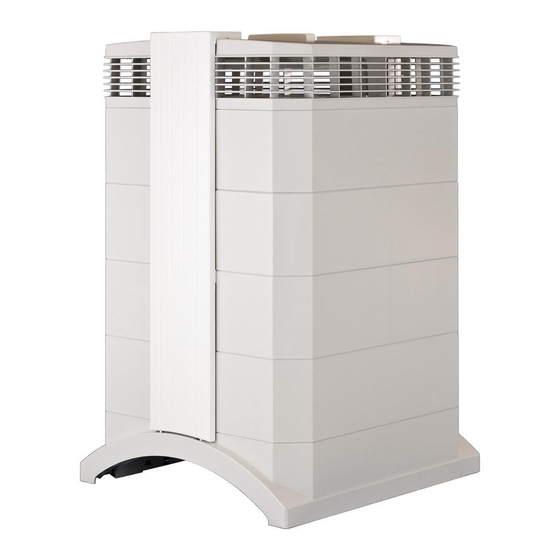

H e a l t h Pro® Co m p a c t
User Manual
Swiss Made

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HealthPro Compact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IQAir HealthPro Compact

Summary of Contents for IQAir HealthPro Compact

  • Page 1 H e a l t h Pro® Co m p a c t User Manual Swiss Made...

  • Page 2: Important Safety Instructions

    © 2002-2010 The IQAir Group. All rights reserved. IQAir, HealthPro and HyperHEPA are the registered trademarks of The IQAir Group. V5-Cell, PreMax and EvenFlow are trademarks of The IQAir Group. IQAir systems and filters are protected under U.S. patents 6 001 145 and 6 159 260. Other U.S., European and Asian patents pending.

  • Page 3: Table Of Contents

    2. 2 Choosing a Suitable Location 2. 3 Connecting to Power 2. 4 Fitting and Removing Casters Chapter 3 – The IQAir® System’s Components 3. 1 Description of Housing Components 3. 2 Description of Removable Components 3. 3 How the IQAir System Works Chapter 4 –...

  • Page 4: Chapter 1 - Air Cleaning Systems And Indoor Air Quality

    3. Ensure the IQAir system can clean enough air to cope with your room size. The actual hourly air volume cleaned by the system should be at least double the air volume of your room. If the rate at which pollutants enter the room air is high or the indoor air quality requirements are stringent, the hourly air delivery of the system needs to exceed the room air volume several times.

  • Page 5: Chapter 2 - Setting Up

    2.1 Unpacking To unpack the IQAir system, open the top of the box and remove the square styrofoam pad which contains all accessories and product literature. Lay the box on its side, hold the system by the handle and pull it out of the box.

  • Page 6: Choosing A Suitable Location

    Do not use the IQAir system when the power cord becomes damaged. The power cord may be replaced with an approved cord with a two-pole plug.

  • Page 7: Fitting And Removing Casters

    Chapter 2 – Setting Up 2.4 Fitting and Removing Casters Attaching the supplied casters is optional. They make it easy to move the air purifier between rooms. The caster kit consists of: 1. mounting rail ( x 2) 2. casters ( x 4) For installation simply follow the below instructions: Turn the device upside down on a soft and clean Place the mounting rail on the purifier’s base so that...
  • Page 8 Chapter 2 – Setting Up ® Removing Casters From Your IQAir Air Purifier Switch the device off. Turn the device upside down on a soft and clean area or surface. Remove each caster from the rail by pulling it straight There are two slotted tabs on each rail.

  • Page 9: Chapter 3 - The Iqair® System's Components

    3.1 Description of Housing Components The IQAir system features a modular tower design in which all important filtration and air moving components are positioned vertically in-line, i.e. stacked on top of another. Air is drawn into the system at the base, and passes through several filter stages to be returned to the room via the diffuser on top of the system.

  • Page 10: Description Of Removable Components

    3.2 Description of Removable Components The IQAir system features a modular housing design which enables the easy replacement of all filter elements in a matter of seconds. The illustration below shows all the removable components. For more details on how to re pla ce filters, please refer to Chapter 6 –...

  • Page 11: Chapter 4 - Using The Control Panel

    Power Key The Power key switches the IQAir system on and off. When the system is switched off, the fan stops to run, but the system will remain connected to the power supply (standby mode). The standby mode allows for automatic timer start-up.

  • Page 12: Control Panel Locking Function

    4.3 Fan Speed and Air Delivery The IQAir system can be set to run at six different fan speeds which correspond to six different airflow rates. Speed 1 is the lowest, speed 6 the highest fan speed. The higher the fan speed, the more room air will be filtered by the system.

  • Page 13: Air Exchange Rates In Differently Sized Rooms

    Any air cleaner can only be effective if it filters a sufficient amount of air in an indoor environment. For general air cleaning purposes, the IQAir system should be able to filter the room air volume at least twice every hour on the set fan speed to achieve a significant air quality improvement.

  • Page 14: Filter Life Monitor

    4.4.2 Filter Life Monitor The IQAir system is equipped with an electronic Filter Life Monitor that calculates the remaining life of the sys tem’s filter elements. Thanks to the Filter Life Monitor, the user does not have to guess when filters need to be replaced or replace them at fixed intervals (which rarely correspond to the actual amount of use).

  • Page 15: Setting The Auto Timer

    Chapter 4 – Using the Control Panel 4.4.3 Setting the Auto Timer The Auto Timer Menu allows the setting of a Timer ON period, which is defined by a START time and a STOP time. For the Timer ON period, a fan speed can be selected in the Timer ON Fan Speed Menu (see 4.4.5).

  • Page 16: Day-Of-The-Week Timer

    Chapter 4 – Using the Control Panel 4.4.4 Day-of-the-Week Timer The Day-of-the-Week Timer allows the deactivation of the Timer ON period on certain days of the week. In its default setting the Timer ON period is enabled on all seven days of the week. This is indicated by stars below the abbreviations of the days.

  • Page 17: Timer Information In The Control Panel

    Chapter 4 – Using the Control Panel 4.4.6 Timer Information in the Control Panel The IQAir control panel shows the timer status without the need to access the T imer related menus. Timer Deactivated Display’s Main Window Timer LED System on Standby: The first line shows the model name and the second line shows the word “Standby”.

  • Page 18: Time & Day Setting

    Chapter 4 – Using the Control Panel 4.4.7 Time & Day Setting When the IQAir system is first connected to the power, the day and time displayed will be incorrect and will have to be set for the timer function to work properly.

  • Page 19: Changing The Airflow Units

    Note: The air delivery (airflow units) displayed in this manual are examples only and will vary according to model. 4.4.10 Language Setting The Language Menu allows to change the IQAir system’s display language. The languages from which you can choose will depend on the model and the country of purchase.

  • Page 20: Chapter 5 - Using The Remote Control

    Switching the System On and Off: To switch the IQAir system on with the remote control, press any one of the speed control keys marked with 1 through 6. The system will still start at the fan speed of the pressed key. To switch the IQAir system off, press the OFF key.

  • Page 21: Replacing The Remote Control Battery

    Chapter 6 – Replacing Filters The IQAir system is equipped with a Filter Life Monitor which is designed to assist you in determining when a filter element needs to be replaced. If the air pollution in your environment is very high, there is a possibility that the filter elements may not be effective throughout the displayed life time and may have to be replaced earlier than indicated by the Filter Life Monitor.

  • Page 22: Opening And Closing The Housing

    Opening 6.3.1 Troubleshooting When Closing the Housing If the IQAir® system does not close properly, the upper part of the system may be offset against the lower part. To solve this problem, simply open both locking arms again, align the housing elements and push both locking arms in simultaneously.
  • Page 23 Chapter 6 – Replacing Filters 4. Remove the filter clamps that secure the 5. Turn the frame upside down. 6. With the palm of the hand, press down filter in the frame by pulling these out of on the filter to loosen the filter from the the sliding grooves.

  • Page 24: Replacing The Hyperhepa Filter (Filter 2)

    For water soluble stains, use a window cleaning fluid. • For the removal of tough, non water soluble stains, use a silicon spray. • Do not use any solvents or any organic cleaning fluids. 7.2 Maintenance-Free Fan The IQAir system is equipped with a maintenance-free fan motor.

  • Page 25: Technical Support And Repairs

    To expedite your service request, please have the following information ready when contacting us: 1. IQAir model, shell number and serial number (found at the base of the unit and on the certificate of performance) 2. Your details (name, address, phone number, e-mail) 3.

  • Page 26: Technical Specifications

    Technical Specifications Technical Speci cations: IQAir® HealthPro Compact Performance Minimum particle ltration e ciency 99.97% at ≥0.3 microns 99.5% at ≥0.003 microns 45 cfm 75 cfm 115 cfm 150 cfm 180 cfm 260 cfm Air delivery per fan speed (including all lters, at 120V, 60Hz)
