Summary of Contents for IQAir CleanZone 3030

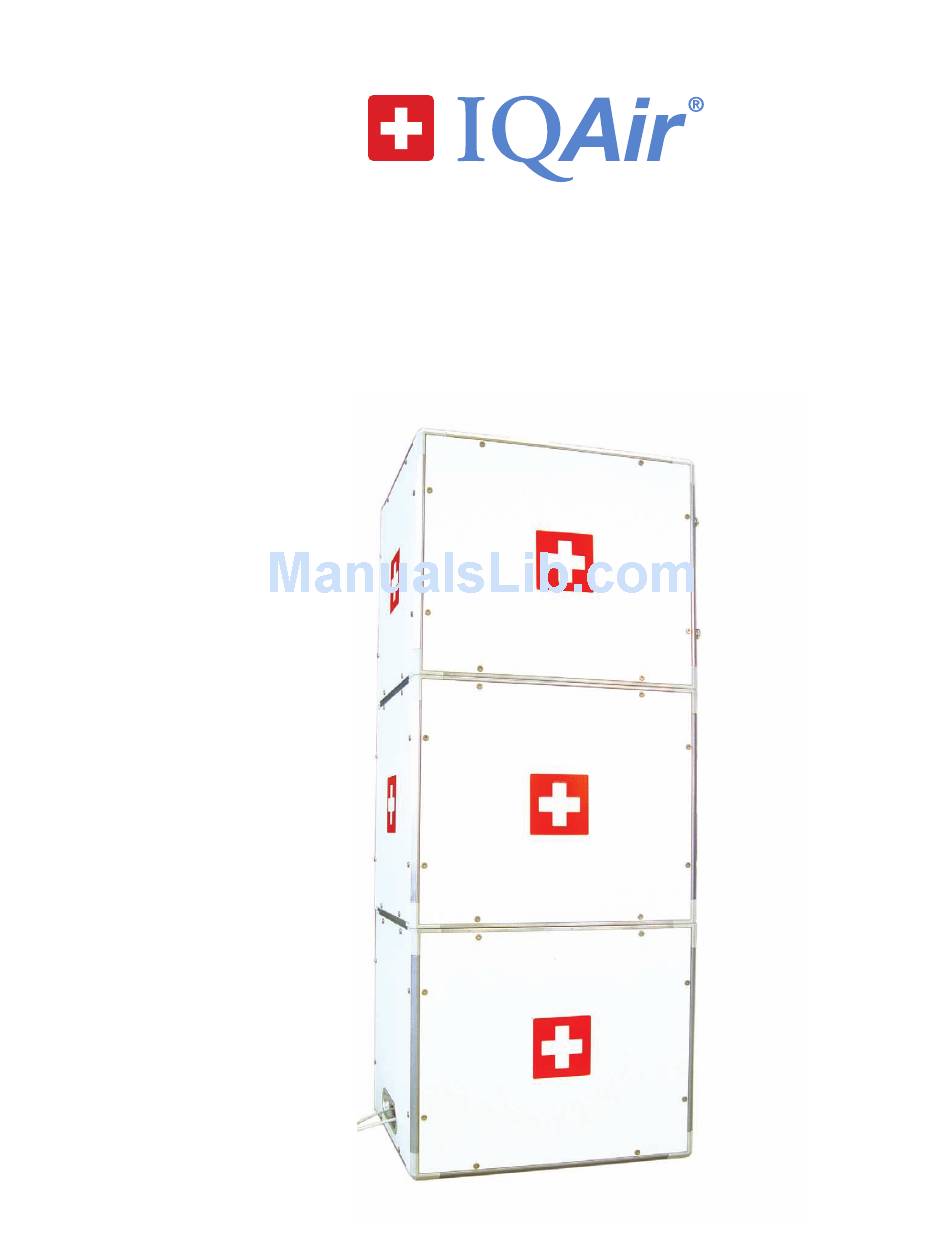

- Page 1 ABSOLUT SERIES ™ Unloading and Loading the CleanZone 3030 ABSOLUT 3000 ™ Air Purification System ™ ABSOLUT Air Purification System 0906...
- Page 2 TABLE OF CONTENTS UNLOADING THE IQAIR CLEANZONE 3030 Opening the crate ………………………………………………………………………………………. . . page 3 Preparing the loading ramp ……………………………………………………………………………. .. page 3 Guide the CleanZone down the ramp …………………………………………………………………. . . page 4 Fold back the ramp ………………………………………………………………………………………. page 4...
- Page 3 UNLOADING THE IQAIR CLEANZONE 3030 Begin by removing the door of the crate. The front of the door is marked with a red arrow that indicates the top and the outer panel of the door. Remove the 4 screws that run horizontally down the left and right sides of the door.
- Page 4 Open and extend the loading ramp to the floor. This is how the loading ramp looks when extended to the floor. Next, carefully roll the CleanZone unit out of the crate and down the ramp. Because the CleanZone unit weighs 200 lbs., the unit should be maneuvered using two people.
- Page 5 This secures the loading ramp to the base of the crate while in storage. Please keep the IQAir crate and components for future transport. Refer to Part 2: Loading the CleanZone 3030, when ready to return the unit to IQAir.
- Page 6 LOADING THE IQAIR CLEANZONE 3030 Begin by removing the door of the crate. The front of the door is marked with a red arrow that indicates the top of the door and the outer panel. Remove the 4 screws that run horizontally down the left and right sides of the door.
- Page 7 This is how the ramp looks when extended to the floor. Next, roll the CleanZone up to the crate’s loading ramp. Position the unit so that the bottom duct opening is facing outwards. Because the CleanZone unit weighs 200 lbs., it should be maneu- vered using two people.
- Page 8 Doing so may cause damage to the crate. To UNLOAD the CleanZone, please refer to Part 1: Unloading the CleanZone 3030. Should you require assistance, please feel free to contact the IQAir Solution Center at 877-715-4-AIR (247). Thank you for choosing IQAir!
