Important Safety Instructions
About This User's Manual

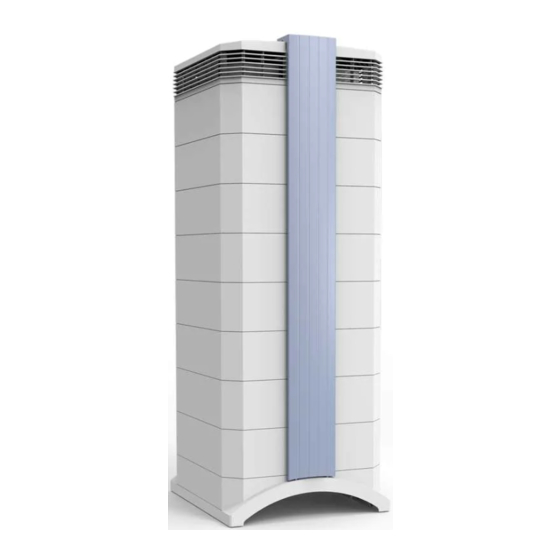

Congratulations on your purchase of this IQAir® high-performance air cleaning system. Please study this user manual
carefully to familiarize yourself with the special features and functions of your IQAir® system and keep it in a safe
place for future reference.
Read these instructions before using the appliance:
•
Do not use this appliance as sole protection against harmful pollutants.
•
Do not immerse the appliance in water or other liquids.
•
Always disconnect the power from your air cleaner by unplugging the power cable before adding or removing
parts and before cleaning.
•
Do not operate this appliance if it has a damaged cord or plug, if the motor fan fails to rotate, if it is not working
properly, if it has been dropped or damaged, or dropped into water.
•
If the power cord of this appliance should become damaged, it may be replaced with a similar two-pole cord set,
as is commonly used for computers and similar appliances.
•
Only use this appliance for its intended purpose of air cleaning in non-industrial environments.
•
Do not use this appliance in areas with very high concentrations of dusts or powder to prevent the danger of dust
explosions.
•
Do not use this appliance in explosive areas.
•
Do not use attachments or filters not recommended by IQAir®.
•
Do not use outdoors.
•
Do not obstruct the air inlet and air outlet of the air cleaner.
•
Do not place the appliance on a soft surface such as a bed or other soft furnishings.
•
Only use this appliance in an upright position.
•
Do not place next to a humidifier.
•
Keep the power cord away from heated surfaces.
•
Save these instructions for future reference.
The IQAir® Group reserves the right to change specifications contained in this document at any time and without prior notice.
© 2007 The IQAir® Group. All rights reserved. IQAir® is the registered trademarks of The IQAir® Group. EvenFlow™ ia a trademark of The IQAir® Group. IQAir® systems
and filters are protected under U.S. patents 6 001 145 and 6 159 260. Other U.S.,
European and Asian patents pending.
2
105.10.10.50 / 0507
Advertisement
Table of Contents
Related Manuals for IQAir GCX AM
Summary of Contents for IQAir GCX AM
- Page 1 The IQAir® Group reserves the right to change specifications contained in this document at any time and without prior notice. © 2007 The IQAir® Group. All rights reserved. IQAir® is the registered trademarks of The IQAir® Group. EvenFlow™ ia a trademark of The IQAir® Group. IQAir® systems and filters are protected under U.S.
-
Page 2: Table Of Contents
2. 1 Unpacking 2. 2 Choosing a Suitable Location 2. 3 Connecting to Power Chapter 3 – The IQAir® System’s Components 3. 1 Description of Housing Components 3. 2 Description of Removable Components 3. 3 How the IQAir® System Works Chapter 4 –... -
Page 3: Chapter 1 - Air Cleaning Systems And Indoor Air Quality
3. Ensure the IQAir® system can clean enough air to cope with your room size. The actual hourly air volume cleaned by the system should be at least double the air volume of your room. If the rate at which pollutants enter the room air is high or the indoor air quality requirements are stringent, the hourly air delivery of the system needs to exceed the room air volume several times. -
Page 4: Choosing A Suitable Location
Important: The only way to disconnect power completely is to unplug the power cord. Do not use the IQAir® system when the power cord becomes damaged. The power cord may be replaced with an approved cord with a two-pole plug. These power cords are commonly used for computers and similar appliances. -
Page 5: Description Of Removable Components
The air is pushed through four steel cartridges that contain up to 17 The Power key switches the IQAir® system on and off. When the system is switched off, the fan stops to run, but the lbs. of gas phase control media, which retains specific gaseous system will remain connected to the power supply (standby mode). -
Page 6: Control Panel Locking Function
15 seconds in a menu window, the display will revert to the main display window. Tip: If you are in a menu window cleaning purposes, the IQAir® system should be able to filter the room air volume at least twice every hour on the set and would like to remain in the window for more than 15 seconds, keep the key depressed. -
Page 7: Filter Life Monitor
4.4.2 Filter Life Monitor Menu key twice. The IQAir® system is equipped with an electronic Filter Life Monitor that calculates the remaining life of the sys tem’s 2. Press and hold the Enter key until the cursor starts to flash. -
Page 8: Day Of The Week Timer
The Day-of-the-Week Timer allows the deactivation of the Timer ON period on The IQAir® control panel shows the timer status without the need to access the T imer related menus. certain days of the week. In its default setting the Timer ON period is enabled Timer Deactivated on all seven days of the week. -
Page 9: Time & Day Setting
6. Press the Enter key to save the minute setting and to proceed to the day setting. The Language Menu Display allows to change the IQAir® system’s display language. The languages from which you can choose will depend on the model 7. -
Page 10: Chapter 5 - Using The Remote Control
Post-Filter 6.1 Location of the Filter Elements To switch the IQAir® system on with the remote control, press any one of the speed control keys marked with 1 through Cartridges 6. To switch the IQAir® system off, press the OFF key. -
Page 11: Opening And Closing The Housing
The stacked housing elements are held together by two locking arms that hook into the diffuser. To open the system, follow the steps below. 1. Disconnect the IQAir® system from the power supply before at temp ting to open the system. -
Page 12: Discarding Used Filters
Used filter elements can normally be put into the regular household trash for disposal. If the system may have been IQAir® advanced air cleaning systems can be complimented with a range of special IQAir® accessories. Ask your exposed to potentially hazardous substances, the filters may have to be disposed of as hazardous waste. Please refer authorized IQAir®...
