Summary of Contents for IQAir Cleanroom H13

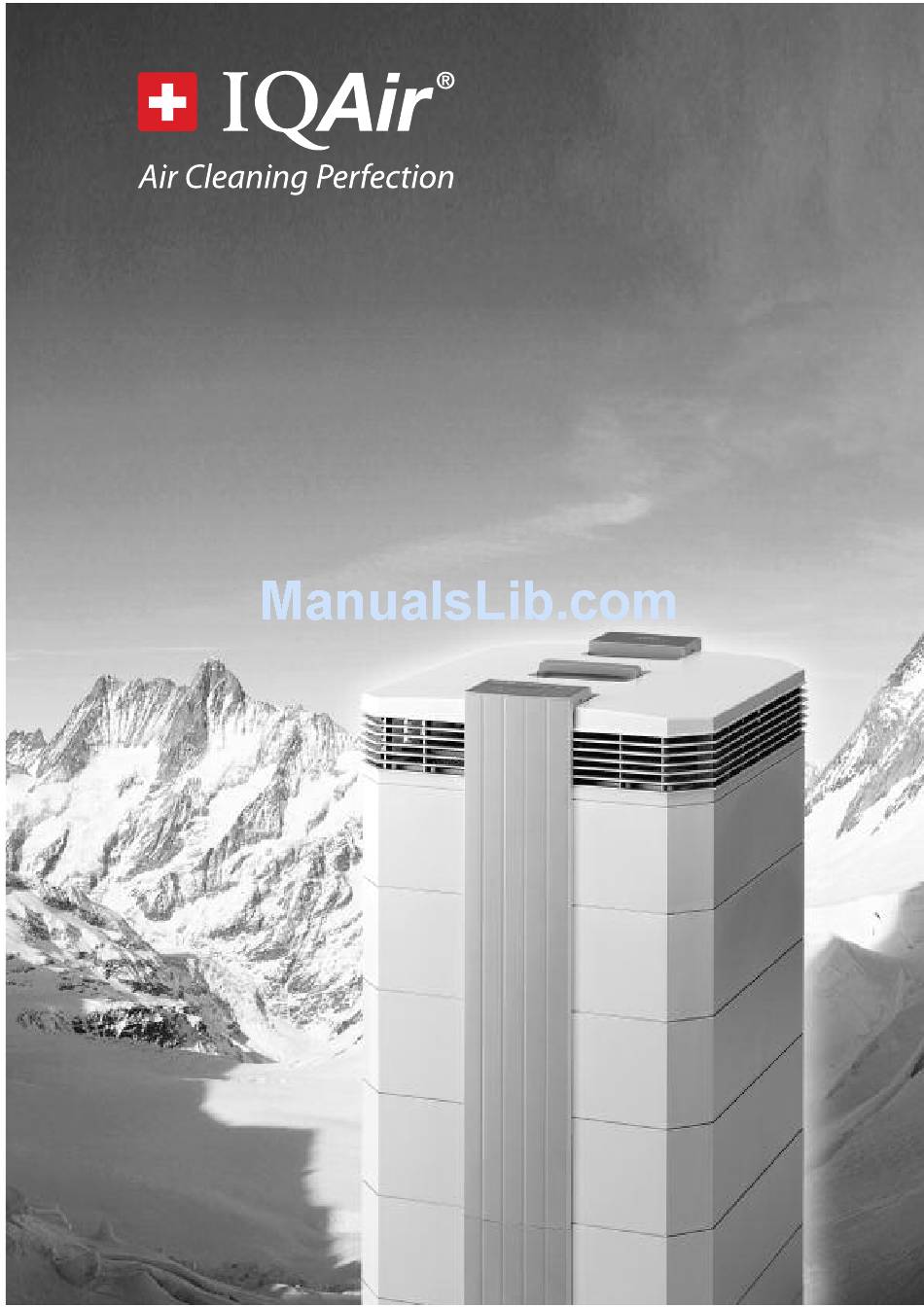

  • Page 1 Cleanroom H13 User’s Manual...
  • Page 2: Important Safety Instructions

    The IQAir® Group reserves the right to change specifications contained in this document at any time and without prior notice. © 2005 The IQAir® Group. All rights reserved. IQAir® is the registered trademarks of The IQAir® Group. EvenFlow™ ia a trademark of The IQAir® Group. IQAir® systems and filters are protected under U.S.
  • Page 4: Table Of Contents

    Discarding Used Filters Chapter 7 – Maintenance 7. 1 Cleaning the Housing 7. 2 Maintenance-Free Fan Chapter 8 – Important Information 8. 1 Important Guidelines for the Use of IQAir Systems in Critical Environments Chapter 9 – IQAir® Accessories (Optional)
  • Page 5: Improving Indoor Air Quality

    3. Ensure the IQAir® system can clean enough air to cope with your room size. The actual hourly air volume cleaned by the system should be at least double the air volume of your room. If the rate at which pollutants enter the room air is high or the indoor air quality requirements are stringent, the hourly air delivery of the system needs to exceed the room air volume several times.To achieve that level of air turnover, it may be necessary to employ more...
  • Page 6: Unpacking

    2.1 Unpacking To unpack the IQAir® system, open the top of the box and remove the square styrofoam pad which contains all accessories and product literature. Lay the box on its side, hold the system by the handle and pull it out of the box.
  • Page 7: Choosing A Suitable Location

    Important: The only way to disconnect power completely is to unplug the power cord. Do not use the IQAir® system when the power cord becomes damaged. The power cord may be replaced with an approved cord with a two-pole plug. These power cords are commonly used for computers and similar appliances.
  • Page 8: Description Of Housing Components

    3.1 Description of Housing Components The IQAir® system features a modular tower design in which all important filtration and air moving components are positioned vertically in-line, i.e. stacked on top of another. Air is drawn into the system at the base, and passes through several filter stages to be returned to the room via the diffuser on top of the system.
  • Page 9: Description Of Removable Components

    3.2 Description of Removable Components The IQAir® system features a modular housing design which enables the easy replacement of all filter elements in a matter of seconds. The illustration below shows all the removable components. For more details on how to replace filters, please refer to Chapter 6 –...
  • Page 10: Description Of Control Panel

    Power Key The Power key switches the IQAir® system on and off. When the system is switched off, the fan stops to run, but the system will remain connected to the power supply (standby mode). The standby mode allows for automatic timer start-up.
  • Page 11: Control Panel Locking Function

    4.3 Fan Speed and Air Delivery The IQAir® system can be set to run at six different fan speeds, which correspond to six different airflow rates. Speed 1 is the lowest speed. Speed 6 the highest fan speed. The higher the fan speed, the more room air will be filtered by the system.
  • Page 12: Air Exchange Rates In Differently Sized Rooms

    Any air cleaner can only be effective if it filters a sufficient amount of air in an indoor environment. For general air cleaning purposes, the IQAir® system should be able to filter the room air volume at least twice every hour on the set fan speed to achieve a significant air quality improvement.
  • Page 13: Filter Life Monitor

    4.4.2 Filter Life Monitor The IQAir® system is equipped with an electronic Filter Life Monitor that calculates the remaining life of the system’s filter elements. Thanks to the Filter Life Monitor, the user does not have to guess when filters need to be replaced or replace them at fixed intervals (which rarely correspond to the actual amount of use).
  • Page 14: Setting The Auto Timer

    Chapter 4 – Using the Control Panel 4.4.3 Setting the Auto Timer timer status field The Auto Timer Menu allows the setting of a Timer ON period, which is defined by a start time and an end time. For the Timer ON period, a fan speed can be selected in the Timer ON Fan Speed Menu (see 4.4.5).The time outside the Timer ON period start time end time...
  • Page 15: Day Of The Week Timer

    Chapter 4 – Using the Control Panel 4.4.4 Day-of-the-Week Timer The Day-of-the-Week Timer allows the deactivation of the Timer ON period on certain days of the week. In its default setting the Timer ON period is enabled on all seven days of the week.This is indicated by stars below the abbreviations of the days.
  • Page 16: Timer Information In The Control Panel

    Chapter 4 – Using the Control Panel 4.4.6 Timer Information in the Control Panel The IQAir® control panel shows the timer status without the need to access the Timer related menus. Timer Deactivated Display’s Main Window Timer LED System on Standby: The first line shows the model name and the second line shows the word “Standby”...
  • Page 17: Time & Day Setting

    Chapter 4 – Using the Control Panel 4.4.7 Time & Day Setting In order to use the timer function, the current day and time must be set. Once the current day and time are set, they will only need to be reset if the unit is disconnected from the power supply for more than an hour.
  • Page 18: Language Setting

    The air delivery (airflow units) displayed in this manual are examples only and will vary according to model. 4.4.10 Language Setting The Language Menu Display allows to change the IQAir® system’s display language. The languages from which you can choose will depend on the model and the country of purchase.
  • Page 19: Getting The Best Transmission Results

    (Battery Type: CR2025) Switching the System On and Off To switch the IQAir® system on with the remote control,press any one of the speed control keys marked with 1 through 6.To switch the IQAir® system off, press the OFF key.
  • Page 20: Location Of The Filters

    Chapter 6 – Replacing Filters The IQAir® system is equipped with a Filter Life Monitor which is designed to assist you in determining when a filter element needs to be replaced. If the air pollution in your environment is very high, there is a possibility that the filter elements may not be effective throughout the displayed life time and may have to be replaced earlier than indicated by the Filter Life Monitor.
  • Page 21: Opening And Closing The Housing

    Closing 6.3.1 Troubleshooting when Closing the Housing If the IQAir® system does not close properly, the upper part of the system may be offset against the lower part. To solve this problem, simply open both locking arms again and push both...
  • Page 22 Chapter 6 – Replacing Filters 6.4 Replacing the Pre-Filter (Filter 1) Open the locking arms, making sure 2. Opening the arms will cause the upper 3. Place your hands on opposite sides of they are fully extended outward. For part of the housing to separate from frame 1, lift it slightly and pull it out details, refer to the section 6.3.
  • Page 23: Cleaning The Housing

    For water soluble stains, use a window cleaning fluid. • For the removal of tough, non-water soluble stains, use a silicon spray. • Do not use any solvents or any organic cleaning fluids. 7.2 Maintenance-Free Fan The IQAir® system is equipped with a maintenance-free fan motor.
  • Page 24 8.1 Important Guidlines for the Use of IQAir System in Critical Environments Due to the high performance of IQAir systems, various IQAir models can be used in environments where clean air is of critical importance to human health or production processes. Such environments include health-care facilities, research laboratories and cleanrooms.Wherever IQAir systems are used for the filtration of particulate contaminants...
  • Page 25 Chapter 8 – IQAir® Accessories (Optional) Chapter 9 – IQAir® Accessories (Optional) IQAir® advanced air cleaning systems can be complimented with a range of special IQAir® accessories. Ask your authorized IQAir® dealer for details. VMF™ InFlow™ Powder-coated stainless-steel Complete ducting adapter kit for the...
