Major Components

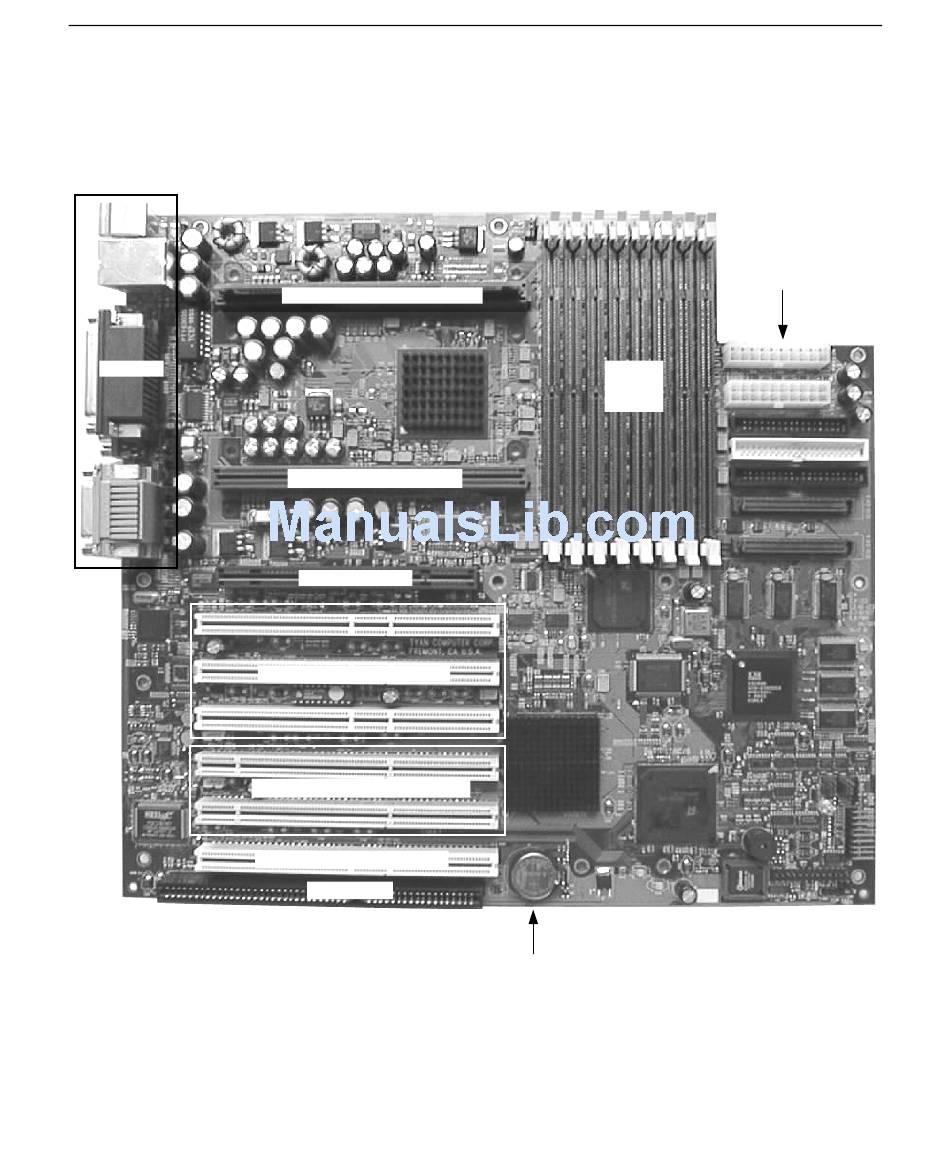

The following figure calls out the system board's major components. More detailed information
on system board components is found in Chapter 2, "Components."
I/O Ports
Secondary Processor Socket
Primary Processor Socket
AGP Pro Socket
PCI Sockets (64-bit 33 MHz)
PCI Sockets (64-bit 66/33 MHz)
PCI Socket (64-bit 33 MHz)
ISA Socket
Memory
Module
Sockets
CMOS/Clock Battery
Power & Data
Connectors
