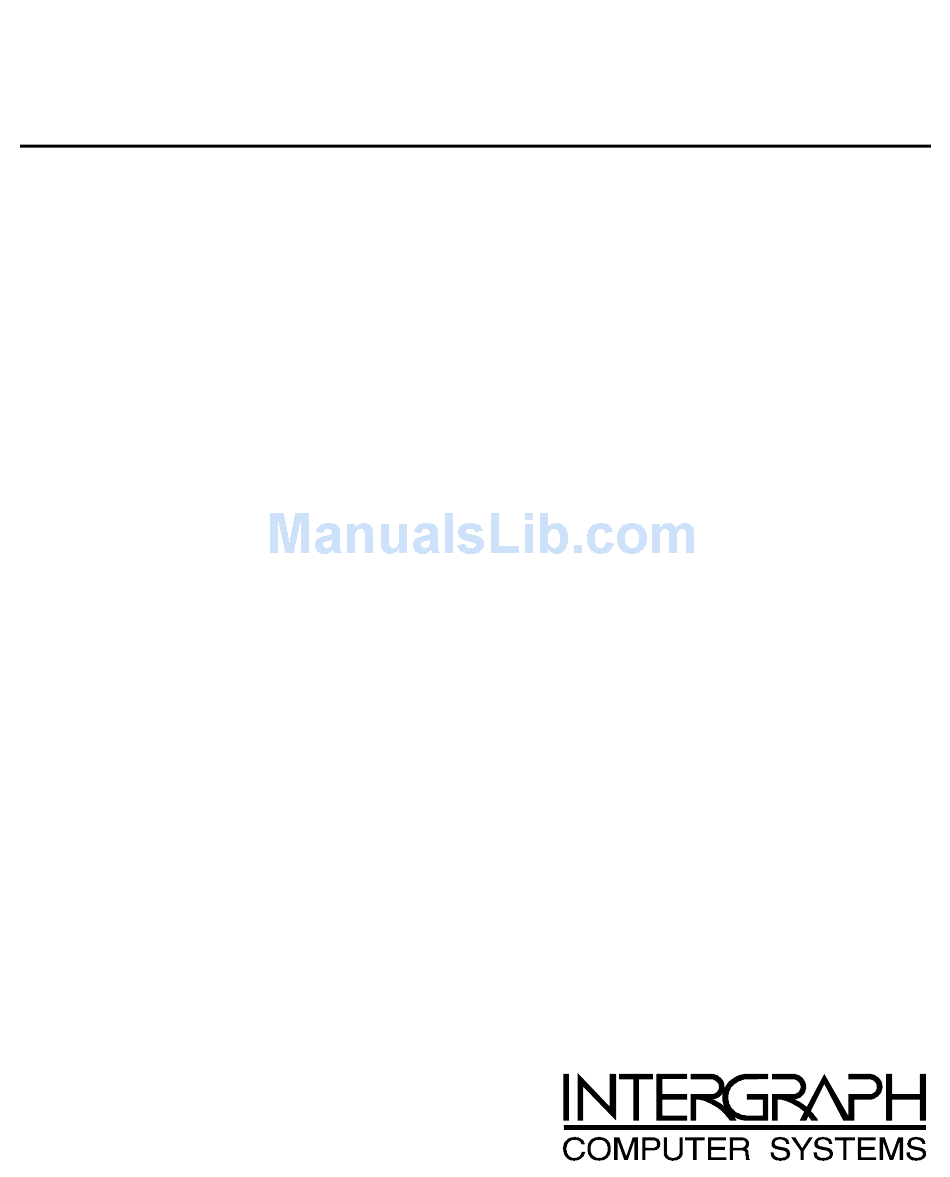

  • Page 1 RAX Systems System Board Manual DHA034900...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction................4 Overview................ 4 Icons................5 Hardware Specifications/Features........6 Software Specifications...........8 Technical Support............8 Returning Merchandise for Service........ 9 Trademarks..............9 2. Board Installation.............. 10 Unpacking..............10 Installation..............10 Setting Jumpers.............25 3. Onboard Resource Settings..........26 Quick Reference for Jumpers........26 Map of Motherboard Jumpers........
  • Page 3 Supervisor and User Security.........67 Anti-Virus Security............68 Detect IDE Utility............69 Language Utility............69 Flash Writer Utility............69 5. System Resources............. 72 Beep Codes..............72 Troubleshooting System Problems........73 Displayed Error Messages..........74 Glossary............... 76...

  • Page 4: Introduction

    Introduction Introduction Overview The S1832DL Tiger 100 is a quality, high performance mainboard designed for dual Intel Pentium II microprocessors. This mainboard utilizes the Intel 440BX AGPset and can support CPU speeds of 233MHz through 450MHz, and host bus speeds of 66MHz to 100MHz.

  • Page 5: Icons

    five PCI and two ISA slots (one shared, seven usable slots) are free for numerous add-on expansion cards. Remember to take a look at TYAN Computer’s web site located at http://www.tyan.com. There you can find information on all of TYAN’s products along with FAQs, distributors list, drivers, and BIOS setting explanations.

  • Page 6: Hardware Specifications/Features

    Chapter 1 Introduction Hardware Specifications/Features • Processor Information Two SEC slots (Slot One type). • 66 to 100MHz BIOS selectable bus support. • Pentium II 233-450MHz. • Supports Celeron CPU (single only). • Chipset Information Intel 440BX AGPset. • Intel PIIX4e controller. •...
  • Page 7 • One shared, seven usable slots. • Physical Dimensions ATX design. • 12 inches x 9.8 inches. • Requires Intel Venus compatible I/O shield. • BIOS Information AMI Plug and Play flash BIOS. • Deep Green, Energy Star, ACPI, Year 2000, and PC98 compliant. •...

  • Page 8: Software Specifications

    Chapter 1 Introduction Software Specifications • Operates with MS-DOS, Windows 3.x, Windows for WorkGroup 3.x, Windows 95, Windows 98, Windows NT, OS/2, Novell Netware, Solaris, and SCO Unix. Information presented in this publication has been carefully checked for reliability. However, no responsibility is assumed for inaccuracies. The information contained in this document is subject to change without notice.

  • Page 9: Returning Merchandise For Service

    Windows is a trademark of Microsoft Corporation. IBM, PC, AT, PS/2 are trademarks of IBM Corporation. INTEL, Pentium II, Celeron are trademarks of Intel Corporation. S1832DL Tiger 100 are trademarks of TYAN Computer Corporation. All other trademarks are the property of their respective companies. http://www.tyan.com...

  • Page 10: Board Installation

    Chapter 2 Board Installation Board Installation Unpacking The mainboard package should contain the following: · S1832DL mainboard · One IDE 40-pin cable · One 34-pin floppy cable · User’s manual · Two retention modules · One Tyan System Management & Driver CD Installation You are now ready to install your mainboard.
  • Page 11 How to install our products right...the first time. procedure What’s the first thing I should do? The first thing you should do is read this user’s manual. It contains important information which will make configuration and setup much easier. The next step is to properly ground yourself. First, unplug the power from your computer case and then touch the metal casing of the power supply or any metal part on the computer case.
  • Page 12 Chapter 2 Board Installation should use is located at the top-center of the board where the adapter cards are fastened to the case. Plug in the power connector as shown. The photos below show the ATX power connector before (Figure 1) and after (Figure 2) it has been plugged in.
  • Page 13 Next, connect your IDE cables (if you’re using IDE hard drives). Figure 3 The colored stripe on the cable should face toward the top of your chassis, or toward the big white B printed on the motherboard. In Figure 3 you can see how the IDE cables should look when they are connected to your...
  • Page 14 Chapter 2 Board Installation Contact your hard disk drive manufacturer or documentation for more information. Some symptoms of incorrectly installed HDDs are: • Hard disk drives are not auto-detected: may be a Master/Slave problem or a bad IDE cable. Contact your vendor. •...
  • Page 15 Drive A: is usually attached to the end of the cable with the twist in it. Drive B: is usually connected to the middle of the cable. Refer to your installation instructions or call your dealer if you are unsure about attaching floppy drives.
  • Page 16 Chapter 2 Board Installation Figure 6 Note: Only TYAN cables will work on this motherboard. If you are using an existing case with old cables, your system will not function properly. Use only TYAN-approved cables. Connecting the USB and PS/2 ports. This board includes ports for USB, PS/2 mouse, and PS/2 keyboard devices.
  • Page 17 Figure 7 shows the USB ports and Figure 8 the PS/2 ports. Figure 7 Figure 8 Installing your add-in cards is relatively simple but... there are a few rules you need to follow when plugging in a card. In order to assure proper operation and a quick installation, adhere to these guidelines: •...
  • Page 18 Chapter 2 Board Installation rocking motion between the card and the slot and it will damage the pins within the socket. • Make sure that the cards are seated securely into the slots. • Before turning on the system, make sure no cards are touching each other or are shorting.
  • Page 19 Figure 9 To install your DIMMs, line your module up so that the pins fit into the slot. There is only one way that your DIMM can fit properly. Make sure that the short row of pins is lined up with the short gap in the DIMM slot.
  • Page 20 Chapter 2 Board Installation Figure 10 Place the DIMMs in an anti-static bag as soon as you remove them to avoid static damage. Finally, install your CPU. Pentium II processors (233 through 450MHz) can be used on the Tiger 100. Please refer to pages 29-30 for the correct CPU jumper settings for your board.
  • Page 21 processor is equipped with a cooling fan and heat sink, while the passive processor is equipped with a heat sink alone. Both types of CPUs provide the user with the same performance, and both types can be installed in the Pentium II slot on the Tiger 100 board. Figure 11 Figure 12 Installing CPU Retention Modules...
  • Page 22 Chapter 2 Board Installation module to the board. Warning: Do not overtighten the screws as you may damage the module and/or the motherboard. Installing the Active Processor When the retention module is securely in- stalled, you are ready to plug in the CPU. Press down firmly on the CPU until you hear Figure 14 a “click”...
  • Page 23 Installing the Passive Processor The installation of the passive processor differs only slightly from that of the active processor. Your passive CPU package should contain one CPU retention module, one heat sink retention bracket with mounting locks, two mounting attachments, and one heat sink lock.Install the retention module as explained in the active processor section.
  • Page 24 Chapter 2 Board Installation the heat sink mounting bracket, gently press the ends of the locks inward and pull. Lock the heat sink mount to the board by inserting the two mounting locks (Figure 19) into the pins of the heat sink mounting bracket which are now below the mainboard.

  • Page 25: Setting Jumpers

    Setting Jumpers In this manual, the terms “closed” and “on” are used when referring to jumpers (or jumper pins) that are active; “open” and “off” are used when referring to jumpers (or jumper pins) that are inactive. Jumpers and pins are connected by slipping the blue plastic jumper connector overtop of two adjacent jumper pins.

  • Page 26: Onboard Resource Settings

    Chapter 3 Onboard Resource Settings Onboard Resource Settings Quick References for Jumpers The tables on the pages which follow will help you set the jumpers for CPU speed, InfraRed, and external connector pin assignments, among others. The miniature motherboard maps will help you locate the jumpers on your board.

  • Page 27: Map Of Motherboard Jumpers

    Map of Motherboard Jumpers FAN2 (CPU1) FAN1 FAN3 (Chassis) (CPU2) Mouse USB2 Intel National National LM75 LM75 AGP port J P 2 0 J P 3 3 volt PCI slot 1 lithium battery J 1 0 PCI slot 2 J P 1 5 (WOL) PCI slot 3 J P 8...
  • Page 28 Chapter 3 Onboard Resource Settings Intel 443BX 4 DIMM slots Two SEC slots (Slot One type) LM75 2 ISA slots http://www.tyan.com...

  • Page 29: Cmos Reset

    CPU Settings for 66MHz Bus CPU Settings for 100MHz Bus The above clock speed settings control only the clock multiplier. 233MHz corresponds to 3.5x; 266MHz corresponds to 4x, etc. The bus speed is BIOS selectable. Tyan does not recommend operating CPUs, memory or the PCI bus at higher than rated speed.
  • Page 30 Chapter 3 Onboard Resource Settings InfraRed/Floppy Drive Settings ) t l J10 External Pin Assignments JP20 Pinout JP21 Pinout 2x9 External Connector Proprietary Server Mgmt Connector Other Pin Assignments e v i t i n http://www.tyan.com...

  • Page 31: Soft Power Connector

    FAN2 FAN3 (CPU1) (CPU2) FAN1 (Chassis) JP4, JP8, JP15 (WOL) FAN4 (Chassis) Soft Power Connector The Soft Power Connector is located on pins 1 and 2 of jumper block J10. The Tiger 100 uses the PIIX4e chip for power management, including turning on and off the system.

  • Page 32: External Smi

    Chapter 3 Onboard Resource Settings switch is a 2-pin connector and should be installed on pins 22 and 23 of jumper block J10. Chassis Intrusion Alarm Connector The J8 connector is an intrusion alarm, that can be connected to the system chassis.

  • Page 33: Hardware Cmos & Password Reset

    Flash Writer Utility (see page 69). Hardware CMOS & Password Reset If you have been locked out of your system because you forgot your password or set the CMOS incorrectly, follow the instructions below. 1. Power off the system 2. Set jumper JP3 to pins 2 and 3 (see previous page for procedure location of JP3).

  • Page 34: Cache Memory

    Chapter 3 Onboard Resource Settings Cache Memory Penitum II processors have the L2 (Level 2) cache built into their architecture, so there is no need for an L2 cache on the motherboard. The Pentium II processor has a physical L2 cache size of 512KB and a cacheable memory area of 512MB.

  • Page 35: Frequently Asked Questions

    Frequently Asked Questions Q: Why don’t I get a display after I put in my old DIMM module? A: The 440BX chipset requires the memory manufacturer to program an EEPROM chip with SPD (Serial Presence Detection) on the module in order for the BIOS to program the 440BX’s timing registers properly.
  • Page 36 Chapter 3 Onboard Resource Settings bypassing the PCI interface and accessing the system memory directly. Currently, the AGP supports 1X and 2X modes, which yield bandwidths of 264MB/s (at 33MHz bus speed) and 533MB/s (at 66MHz bus speed), respectively. Compare this with the mere 132MB/s (at 33MHz bus speed) that you get with the PCI bus.
  • Page 37 This page has been intentionally left blank. http://www.tyan.com...

  • Page 38: Bios Configuration

    Chapter 4 BIOS Configuration BIOS Configuration The AMIBIOS Setup screen is shown below. http://www.tyan.com...
  • Page 39 You can select a Setup option by manuevering the pointer with your mouse and clicking the left mouse button, or by using the following keyboard keys: . t x i t c h t i r e t g i l o i t The pages which follow contain explanations of the settings for the AMIBIOS Setup menus.

  • Page 40: Standard Setup

    Chapter 4 BIOS Configuration Standard Setup Select the AMIBIOS Setup options below by choosing Standard Setup from the AMIBIOS Setup main menu. The Standard Setup menu screen is shown below. Primary Master, Primary Slave, Secondary Master, Secondary Slave Select these options to configure the various drives. A screen with a list of drive parameters appears.
  • Page 41 l l a r u t o l l g i f v i r t e l r e t . s r . s r t f i y t i r e t o l l a r t .
  • Page 42 Chapter 4 BIOS Configuration PIO Mode: PIO (Programmed Input/Output) is a method of transmit- ting data between devices that uses the system’s CPU as part of the data path. There are 5 modes, each with its own transmission speed. To use modes 3 and 4, you must be using an Enhanced IDE drive.
  • Page 43 e t i http://www.tyan.com...
  • Page 44 Chapter 4 BIOS Configuration Date/Time You can type the date and time in directly, or select the portion of the date or time that you want to modify and adjust it using the plus and minus keys. The plus and minus keys can be activated by clicking on them with your mouse, or by using the <+>...

  • Page 45: Advanced Setup

    Advanced Setup The Advanced Setup options included in the AMIBIOS Setup for the Tiger 100 are described in this chapter. Select Advanced Setup from the AMIBIOS Setup main menu to display the Advanced Setup options. Default Settings Every option in AMIBIOS Setup contains two default values: a Fail- Safe default and the Optimal default value.

  • Page 46: Quick Boot

    Chapter 4 BIOS Configuration Advanced Setup Quick Boot Set this option to Enabled to instruct AMIBIOS to boot quickly when the computer is powered on. This option replaces the old Above 1 MB Memory Test Advanced Setup option. The settings are: i t t s t s .
  • Page 47 2nd Boot Device This option sets the type of device for the second boot drive that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD, ATAPI CDROM, and SCSI.
  • Page 48 Chapter 4 BIOS Configuration default settings are Disabled. Boot Up Num-Lock Set this option to Off to turn the Num Lock key off when the computer is booted so you can use the arrow keys on both the numeric keypad and the keyboard.

  • Page 49: System Bios Cacheable

    System BIOS Cacheable When set to Enabled, the contents of the F0000h system memory segment can be read from or written to cache memory. The contents of this memory segment are copied from the BIOS ROM to system RAM for faster execution. The settings are Enabled or Disabled. The Optimal default setting is Enabled.

  • Page 50: Chipset Setup

    Chapter 4 BIOS Configuration Chipset Setup Choose Chipset Setup on the AMIBIOS Setup main menu. All Chipset Setup options are then displayed. AMIBIOS Setup can be customized. AMIBIOS Setup can be customized via AMIBCP. See the AMIBIOS Utilities Guide for additional information. USB Function Set this option to Enabled to enable USB (Universal Serial Bus) sup- port.
  • Page 51 SERR# Set this option to Enabled to enable the SERR# signal on the bus. The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Disabled. PERR# Set this option to Enabled to enable the PERR# signal on the bus. The settings are Enabled or Disabled.
  • Page 52 Chapter 4 BIOS Configuration PCI1 to PCI0 Access Set this option to Enabled to enable access between two different PCI buses (PCI1 and PCI0). The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Disabled. Method of Memory Detection This option determines how your system will detect the type of system memory you have installed.
  • Page 53 installed. The settings are Auto, 2 SCLKs or 3 SCLKs. The Optimal default setting is Auto. The Fail-Safe default setting is 3 SCLKs. SDRAM RAS# Precharge (CHANGE) This option specifies the length of the RAS precharge part of the DRAM system memory access cycle when SDRAM system memory is installed in this computer.
  • Page 54 Chapter 4 BIOS Configuration AGP Mlti-Trans Timer (AGP Clks) This option sets the AGP multi-trans timer. The settings are in units of AGP Clocks. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224. The Optimal default setting is 16. The Fail-safe default setting is Disabled.
  • Page 55 PIIX4 SERR# Set this option to Enabled to enable the SERR# signal for the Intel PIIX4 chip. The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Disabled. USB Passive Release Set this option to Enabled to enable passive release for USB. The settings are Enabled or Disabled.

  • Page 56: Power Management Setup

    Chapter 4 BIOS Configuration Power Management Setup The AMIBIOS Setup options described in this section are selected by choosing Power Management Setup from the AMIBIOS Setup main menu. ACPI Aware O/S Set this option to Yes to enable Advanced Configuration and Power Interface (ACPI) BIOS for an ACPI-aware operating system.
  • Page 57 Green PC Monitor Power State This option specifies the power state that the green PC-compliant video monitor enters when AMIBIOS places it in a power saving state after the specified period of display inactivity has expired. The settings are Off, Stand By, or Suspend. The Optimal default setting is Suspend. The Fail-safe default setting is Stand By.
  • Page 58 Chapter 4 BIOS Configuration Standby/Suspend Timer Unit This option specifies the unit of time used for the Standby and Suspend time out periods. The settings are 4 msec, 4 sec, 32 sec, or 4 min. The Optimal and Fail-safe default settings are 4 min. Standby Time Out This option defines the length of time that the system, while in Full On state, must be inactive before it enters Standby mode.
  • Page 59 Standby and Suspend timeout timers if activity occurs on the specified IRQ line. The settings for each of these options are Monitor or Ignore. The Optimal and Fail-safe default settings are Monitor for all devices. LAN Wake-up When this option is Enabled, the system will wake up when a signal is received on the Wake-on LAN header.

  • Page 60: Pnp/Pci Setup

    Chapter 4 BIOS Configuration PCI/PnP Setup Choose PCI/Plug and Play Setup from the AMIBIOS Setup screen to display the PCI and Plug and Play Setup options, described below. Plug and Play Aware O/S Set this option to Yes to inform AMIBIOS that the operating system can handle plug and Play (PnP) devices.

  • Page 61: Pci Ide Busmaster

    i t t a s i t t i r e r i s ' e e t t s i g . s r t t i r e r i s ' e e t t s i g e t t s i g , s r...
  • Page 62 Chapter 4 BIOS Configuration Offboard PCI IDE Secondary IRQ This option specifies the PCI interrupt used by the secondary IDE channel on the offboard PCI IDE controller. The settings are Disabled, Hardwired, INTA, INTB, INTC, or INTD. The Optimal and Fail-safe settings are Disabled.
  • Page 63 Reserved Memory Size This option specifies the size of the memory area reserved for legacy ISA adapter cards. The settings are Disabled, 16K, 32K, or 64K. The Optimal and Fail-safe default settings are Disabled. Reserved Memory Address This option specifies the beginning address (in hex) of the reserved memory area.

  • Page 64: Peripheral Setup

    Chapter 4 BIOS Configuration Peripheral Setup Peripheral Setup options are displayed by choosing Peripheral Setup from the AMIBIOS Setup main menu. All Peripheral Setup options are described here. Power Interruption The settings are Enabled or Disabled. The Optimal and Fail-safe default settings are Disabled.

  • Page 65: Onboard Parallel Port

    Serial Port2 Mode This option specifies the operating mode for serial port 2.This option will not appear if the Onboard Serial Port2 option is set to Disabled, or is set to Auto and your system does not have an onboard serial port 2. The settings are Normal, Sharp-IR, IrDA, and Consumer.

  • Page 66: Parallel Port Mode

    Chapter 4 BIOS Configuration Parallel Port Mode This option specifies the parallel port mode. The settings are: i t t l a r l e l s i h i t t e r i i t c a r t l a r l e l .

  • Page 67: Supervisor And User Security

    Supervisor and User Security You can limit access to the Setup Program or to the system using the Supervisor and User password options (the Supervisor password gives you access to the Setup Program and the system; the User password, only to the system). Note that you must create a supervisor password before you create a user password.

  • Page 68: Anti-Virus Security

    Chapter 4 BIOS Configuration Password has been installed. You may then select the User Security option and enter a password for the user. You can enter a new User password at any time simply by selecting the User Security option, and typing in a new password. To enter a new Supervisor password, select the Supervisor Security option.

  • Page 69: Detect Ide Utility

    Detect IDE Utility You can ask the BIOS to detect all of the attached IDEs at once by selecting the Detect IDE Utility option (you can detect IDEs individu- ally in the Standard Setup menu). After a second or so (during which you can cancel the detection by clicking on the <Cancel>...
  • Page 70 Chapter 4 BIOS Configuration 1. From the DOS prompt, rename the BIOS file that you have down- loaded to “amiboot.rom” and copy it on to a floppy disk. 2. Insert the floppy disk with the BIOS upgrade into the A: drive. 3.
  • Page 71 This page has been intentionally left blank. http://www.tyan.com...

  • Page 72: System Resources

    Chapter 5 System Resources System Resources Beep Codes Fatal errors, which halt the boot process, are communicated through a series of audible beeps. If AMIBIOS POST can initialize the system video display, it displays the error message. Displayed error messages, in most cases, allow the system to continue to boot.

  • Page 73: Troubleshooting System Problems

    e r f u l i e r f c r i t i u . y t y t i y t i t s r . y r u l i u l i t s r i a f r u l t s r , y r...

  • Page 74: Displayed Error Messages

    Chapter 6 System Resources Displayed Error Messages If an error occurs after the system display has been initialized, the error message will be displayed as follows: ERROR Message Line 1 ERROR Message Line 2 Press <F1> to continue and the system will halt. The system will not halt if the Wait for <F1> If Any Error option in Advanced Setup is Disabled.
  • Page 75 u l i v i r e t t e t t u l i e t t o l l i t c e r i h t i r o l , f f , y l r t n l l o .

  • Page 76: Glossary

    Chapter 6 System Resources Glossary ACPI (Advanced Configuration and Power Interface) is a power manage- ment specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure.
  • Page 77 Both the operating system and application software use BIOS routines to ensure compatibility. buffer is a portion of RAM which is used to temporarily store data, usually from an application, though it is also used when printing, and in most key- board drivers.
  • Page 78 Chapter 6 System Resources COM port is another name for the serial port, which is so-called because it transmits the eight bits of a byte of data along one wire, and receives data on another single wire (that is, the data is transmitted in serial form, one bit after another).
  • Page 79 ESCD (Extended System Configuration Data) is a format for storing informa- tion about Plug and Play devices in the system BIOS. This information helps properly configure the system each time it boots. Firmware is low level software that controls the system hardware. Form factor is an industry term for the size, shape, power supply type, and external connector type of the PCB (personal computer board) or...
  • Page 80 Chapter 6 System Resources lock up your system. Happily, Plug and Play operating systems take care of these details for you. stands for Industry Standard Architecture. ISA is a slower 8- or 16-bit BUS (data pathway). Latency is the amount of time that one part of a system spends waiting for another part to catch up.
  • Page 81 Pipelining improves system performance by allowing the CPU to begin executing a second instruction before the first is completed. A pipeline can be likened to an assembly line, with a given part of the pipeline repeatedly executing a set part of an operation on a series of instructions. PM timers (Power Management timers) are software timers that count down the number of seconds or minutes until the system times out and enters...
  • Page 82 Chapter 6 System Resources SIMM bank/socket SIMM sockets are the physical slots into which you stick SIMM modules. A pair of SIMM sockets form a SIMM bank, and act as a unit. If only one socket is filled, the bank will not operate. Sleep/Suspend mode , all devices except the CPU shut down.
  • Page 83 Notice for the USA Compliance Information Statement (Declaration of Conformity Proce- dure) DoC FCC Part 15: This Device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interfer- ence that may cause undesired operation.
