Intergraph Zx10 System Board Manual

System board
Hide thumbs Also See for Zx10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: System Manual, Manual

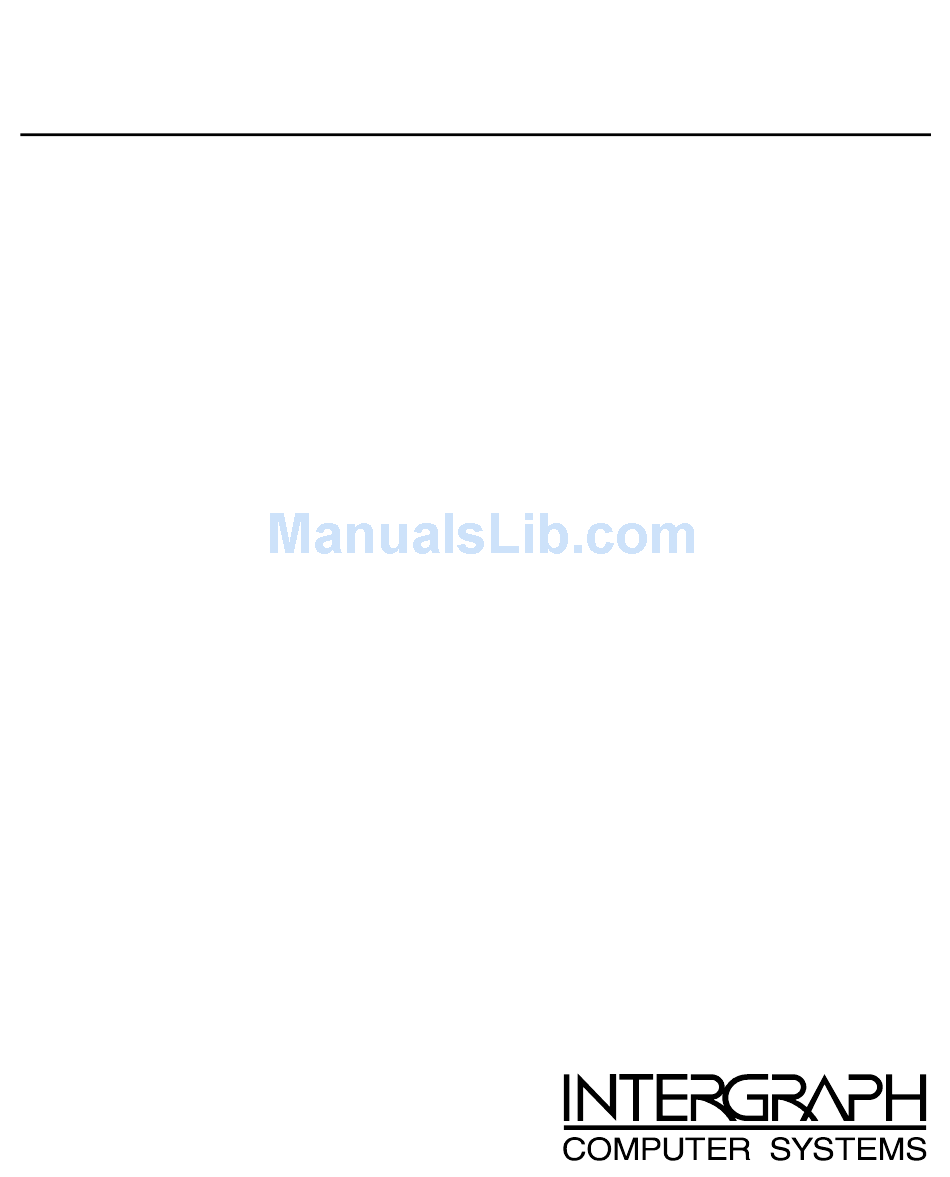

Zx
10
System Board Manual
May 2000
D1AA0035A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zx10 and is the answer not in the manual?

Questions and answers

Related Manuals for Intergraph Zx10

Summary of Contents for Intergraph Zx10

  • Page 1 System Board Manual May 2000 D1AA0035A...
  • Page 2 This document may not, in whole or in part, be reproduced in any form or by any means, or be used to make any derivative work, without written consent from Intergraph Computer Systems. Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the rights in technical data and computer software clause at DFARS 252.227-7013.
  • Page 3 Safety Notices Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment. To reduce the risk of electrical shock and energy hazards, do not attempt to open the equipment unless instructed, and do not use a tool for purposes other than instructed.

  • Page 5: Table Of Contents

    Contents Preface ............................vii About This Document........................vii Document Conventions........................vii Customer Support ........................... vii 1 Overview............................1 Features and Components......................... 1 Block Diagrams ..........................3 Major Components ........................... 6 2 Components..........................7 Processors............................7 Memory Modules..........................9 Expansion Sockets .......................... 13 Power and Data Connectors......................
  • Page 6 4 Resources............................ 33 ISA Interrupt Requests (IRQs) ....................... 33 PCI-to-ISA Interrupt Map....................... 34 Direct Memory Access (DMA) Channels..................34 Input/Output (I/O) Map ........................35 Memory Map ..........................37 5 Messages ............................. 39 POST Tasks and Beep Codes ......................39 Error Messages ..........................43...

  • Page 7: Preface

    Customer Support Intergraph Computer Systems hardware has a factory warranty ranging from 30 days to three years. A detailed warranty description is available on the World Wide Web. You can also take advantage of other available hardware support services.
  • Page 8 Visit the Support pages on the World Wide Web at http://www.intergraph.com/ics. In the United States, call 1-800-414-8991. Outside the United States, contact your local Intergraph Computer Systems subsidiary or distributor. To visit Intergraph Computer Systems on the World Wide Web: Use your World Wide Web browser to go to http://www.intergraph.com/ics.

  • Page 9: Overview

    Overview This chapter describes the system board, its features, and its major components. Features and Components Processors Dual Intel SC242 (Slot 1) support Intel Pentium III processors Two integrated voltage regulators 64-bit front-side bus (FSB) – 133 MHz or 100 MHz (varies by system) System Chipset ServerWorks ServerSet III WS Streaming Multiport Controllers...
  • Page 10 Intel 82559 Network Controller 100 Mbit/sec and 10 Mbit/sec Ethernet network interface Wake-on-Modem support Wake-on-LAN support Audio Controller Creative Labs ES1373 AudioPCI Audio Codec ’97 (AC97) Advanced Technology Attachment Packet Interface (ATAPI) CD-ROM audio header, modem audio header, and video header One full-length AGP Pro socket Expansion Sockets Two full-length fast/wide PCI sockets (64 bits, 66 MHz/33 MHz, 3.3 V)

  • Page 11: Block Diagrams

    ATX power supply connectors Voltage and Power +12V variable power source for DC fans 3.3 V SDRAM memory support System Management Monitoring of all system voltages and four temperature points Fan headers with monitoring and control functions Chassis intrusion alert header Temperature and voltage monitoring Wake-on-Modem header Wake-on-LAN header...

  • Page 12: Block Diagram

    Wahoo 133MHz FSB MEM_DATA Mouse / Keyboard Block Diagram MEM_DATA CPU 2 (SC242) 133MHz, 128-bit ATX Power ServerWorks 16-bit ATX Power Host bus ServerSet III WS 16-bit North Bridge Floppy Secondary Primary Ultra3 SCSI Channel B CPU 1 (SC242) Ultra3 SCSI Channel A AGP Pro (Slot 0) ServerWorks...
  • Page 13 Wahoo 100MHz FSB MEM_DATA Mouse / Keyboard Block Diagram MEM_DATA CPU 2 (SC242) 100MHz, 128-bit ATX Power 16-bit ServerWorks ATX Power Host bus ServerSet III WS 16-bit North Bridge Floppy Secondary Primary Ultra3 SCSI Channel B CPU 1 (SC242) Ultra3 SCSI Channel A AGP Pro (Slot 0) ServerWorks...

  • Page 14: Major Components

    Major Components The following figure calls out the system board’s major components. More detailed information on system board components is found in Chapter 2, “Components.” Power & Data Connectors Secondary Processor Socket I/O Ports Memory Module Sockets Primary Processor Socket AGP Pro Socket PCI Sockets (64-bit 33 MHz) PCI Sockets (64-bit 66/33 MHz)

  • Page 15: Components

    Components This chapter locates and describes major components on the system board. The chapter also provides information on the integrated controllers and hardware monitoring. WARNING Before touching the system board or its components, disconnect the system’s power cord from its AC power outlet. WARNING System board components may be at high temperatures.
  • Page 16 Each processor socket accepts an Intel Pentium III processor (100 MHz or 133 MHz front-side bus). The processor is secured to the socket by retention clips on both sides. The retention clips are secured by nuts to screws attached to the system board. Processor Retention Clip (One each side)

  • Page 17: Memory Modules

    Memory Modules The system board includes sockets for up to six PC133 or eight PC100 dual inline memory modules (DIMMs). The memory speed matches the system board’s front-side bus speed. Memory module sockets are organized into four banks (Bank 0 through Bank 3) of two sockets each that use two-way memory interleaving.
  • Page 18 Each socket accepts a 168-pin registered Synchronous Dynamic RAM (SDRAM) DIMM. Each DIMM has a 128-bit memory width and 16-bit error correcting code (ECC) protection. DIMMs in Bank 0 Each socket is keyed for proper DIMM insertion. Release tabs on each end of the socket capture the DIMM and secure it in the socket.
  • Page 19 On system boards with a 133 MHz front-side bus (FSB), DIMM terminator modules are installed in Bank 1 instead of standard DIMMs. DIMM Terminator Module To avoid damaging a DIMM and voiding its warranty, take the following precautions: Do not remove the DIMM from its antistatic package until you are ready to install it. Do not touch the metallic finger contacts.
  • Page 20 A 100 MHz FSB system board can have up to 8,192 MB of system memory, in increments of 256 MB, 512 MB, and 1,024 MB. The following are common configurations. Memory Bank 0 Bank 1 Bank 2 Bank 3 256 MB 2 x 128 MB 512 MB 2 x 128 MB...

  • Page 21: Expansion Sockets

    Expansion Sockets The system board includes sockets for up to seven expansion cards, as follows: One full-length Accelerated Graphics Port (AGP) Pro socket Two full-length fast/wide Peripheral Component Interconnect (PCI) socket (64 bits, 66 MHz/33 MHz, 3.3 V) Four full-length wide PCI socket (64 bits, 33 MHz, 5 V) One full-length Industry Standard Architecture (ISA) socket (16 bits) When installing expansion cards, note the following: All PCI sockets support Universal adapters.

  • Page 22: Power And Data Connectors

    Power and Data Connectors The system board contains two 20-pin ATX P1 Power power connectors. These connectors accept power cables (P1 and P2) from the system’s power supply. The connectors are keyed for proper connection. P2 Power The system board contains five data connectors, immediately below the power Floppy Disk Drive connectors.
  • Page 23 The rear fan in a rack-mount chassis connects to the FAN3 connector below and to the right of the lower processor socket. FAN3 Connector Fans in the front of the chassis connect to one of the 3-pin FAN1 or FAN2 connectors in the lower-right corner of the system board.

  • Page 24: Atapi Connectors

    ATAPI Connectors The system board has four 4-pin Advanced Technology Attachment Packet Interface (ATAPI) connectors. The connectors are keyed for proper connection. ATAPI Connector Function CD IN Connects to the audio cable from the system’s CD-ROM drive. Pin 1=CD In Left, Pins 2 and 3=Ground, Pin 4=CD In Right VIDEO IN Connects to the audio cable from an internal device such as a TV tuner expansion card.

  • Page 25: Jumper Connectors

    Jumper Connectors Jumper connectors on the system board (shown in the following figures) connect to system components or provide essential system functions. Jumper Connector Function Connects to chassis intruder alert switch. Connects to power switch, power LED, and disk drive LED. Cable connects to top eight pins.

  • Page 26: I/O Port Connectors

    Spread Spectrum Control I/O Port Connectors The input/output (I/O) port connectors are stacked on the system board adjacent to the processor sockets. MIDI/Game Ethernet Parallel (LPT) Mouse Keyboard Serial (COM) Microphone Audio Line Out Audio Line In...

  • Page 27: Keyboard, Mouse

    Keyboard, Mouse Keyboard and mouse ports are PS/2-style 6-pin male min-DIN connectors. The functionality of the two ports is not interchangeable. The keyboard is powered by standby power. The keyboard port color is purple; the mouse port color is green. Signal KDATA (keyboard) MDATA (mouse)

  • Page 28: Serial

    Serial Serial (COM) ports are 9-pin male D-sub connectors. The port color is teal. Signal Signal Data Carrier Detect (DCD) Data Set Ready (DSR) Receive Data (RD) Request to Send (RTS) Transmit Data (TD) Clear to Send (CTS) Data Terminal Ready (DTR) Ring Indicator (RI) Ground Universal Serial Bus...

  • Page 29: External Wide Ultra2 Scsi (Lvds)

    External Wide Ultra2 SCSI (LVDS) The external Wide Ultra2 SCSI (LVDS) port is a 68-pin female SCSI connector. Pins not listed are connected to ground. Signal Signal TERMPWR Ground TERMPWR TERMPWR SD-(12) No connection SD-(13) Ground SD-(14) SATII- SD-(15) Ground SDP1- SBSY- SD-(0)

  • Page 30: Integrated Controllers

    MIDI/Game The MIDI/Game port is a 15-pin female D-sub connector. The port color is gold. Signal Signal +5 V +5 V Fire button 0 Fire button 2 X-axis, joystick 1 X-axis, joystick 2 Ground MIDI out Ground Y-axis, joystick 2 Y-axis, joystick 1 Fire button 3 Fire button 1...

  • Page 31: Network Controller

    Controller features include: Low-Voltage Differential (LVD) bus 2 16-bit 80 MHz channels 160 MB/sec transfer rate per channel for Ultra3 devices Ultra2 and Ultra3 devices connected to the controller operate at their respective transfer rates PCI bus interface Advanced Configuration and Power Interface (ACPI) support You may need to use the SCSI Configuration Utility to configure the operation of SCSI peripherals connected to the controller.

  • Page 32: Hardware Monitoring And Power Management

    Controller features include: 64 voices and 128 general MIDI wavetable instruments 8-bit and 16-bit, mono and stereo recording and playback Sampling rates up to 48 kHz 16 MIDI channels Full-duplex operation Line in, line out, and microphone in jacks MIDI/game port ATAPI connectors for CD-ROM input, video input, and monaural audio (telephony) input PCI bus interface Hardware Monitoring and Power Management...
  • Page 33 The Power LED on the front of the system base unit indicates the system’s normal power states: Power State Explanation Unlit Auxiliary power is off (fans are not running) or there is a system failure (fans are running) Amber Auxiliary Auxiliary power is on;...

  • Page 34: Cmos/Clock Lithium Battery

    CMOS/Clock Lithium Battery The CMOS/clock lithium battery is located at the bottom of the system board, next to the lowest expansion sockets. The battery may be hidden under installed expansion cards. Battery Battery replacement is not normally required. The battery has a life expectancy of 10 years with no line power applied to the system.

  • Page 35: Bios Setup

    To run BIOS Setup: Start or restart the system and press 2 when the Intergraph Computer Systems logo displays. To navigate BIOS Setup screens and parameters: Press the right or left arrow key to move from one screen to the next.

  • Page 36: Bios Setup Screens

    To exit from BIOS Setup: Go to the Exit screen and select the appropriate option. See “Exit Screen” for more information. BIOS Setup Screens Each BIOS Setup screen has the following features: A screen bar across the top gives you access to all of the BIOS Setup screens. A navigation bar across the bottom tells you how to navigate BIOS Setup.

  • Page 37: Advanced Screen

    Parameter Description System Memory Displays the amount of conventional memory detected during system boot. Extended Memory Displays the amount of extended memory detected during system boot. Memory Cache Sets the state of the processor memory cache. A submenu lets you enable or disable the cache and configure specific areas of the cache as needed.

  • Page 38: Security Screen

    Security Screen The Security screen lets you control access to BIOS Setup and to the system. NOTE When you enter a password, it is saved immediately. All other changes may still be discarded (see “Exit Screen” in this chapter). WARNING If you forget the supervisor password, it cannot be disabled without clearing CMOS memory.

  • Page 39: Boot Screen

    Parameter Description Wakeup on LAN Controls whether the system wakes from a soft-off state when notified by the network controller. By default, this parameter is Disabled. Wakeup on Modem Ring Controls whether the system wakes from a soft-off state when notified by an installed modem.

  • Page 40: Using Cmos Reset

    Using CMOS Reset CMOS reset instructs the BIOS to use factory settings, clears BIOS passwords, and runs BIOS Setup at system boot. See Chapter 2, "Components," for the location of the CMOS reset jumper connector on the system board. To use CMOS reset: Turn off system power and disconnect the system from AC power.

  • Page 41: Resources

    Resources This chapter lists and describes system board resources. ISA Interrupt Requests (IRQs) Most Industry Standard Architecture (ISA) peripheral devices installed in the system require you to reserve an interrupt request (IRQ). Peripheral Component Interconnect (PCI) peripheral devices share system resources and can use the same IRQ. (See “PCI-to-ISA Interrupt Map” in this chapter.) At least one IRQ must be unassigned for use with your system’s PCI devices.

  • Page 42: Pci-To-Isa Interrupt Map

    PCI-to-ISA Interrupt Map PCI peripheral devices installed in the system require one or more PCI interrupt requests (PIRQ). Four interrupt lines—INTA, INTB, INTC, and INTD—are available for PCI interrupt requests. Device PCI Bus/Device CF8h Value INTA INTB INTC INTD SCSI A Bus 0, Dev 1, Func 0 800008xx PIRQ13...

  • Page 43: Input/Output (I/O) Map

    Input/Output (I/O) Map I/O Address (hex) Assignment 0000 – 000F DMA controller 1 0020 – 0021 Interrupt controller 1 0040 – 0043 Timer/counter 1 0048 – 004B Timer/counter 2 0060 Keyboard controller 0061 NMI and speaker 0064 Keyboard controller 0070 (bit 7) Enable NMI 0070 (bits 0 –...
  • Page 44 I/O Address (hex) Assignment 03C0 – 03CA Add-in card; VGA 03CC Add-in card; VGA 03CE – 03CF Add-in card; VGA 03D4 – 03D5 Add-in card; VGA 03DA Add-in card; VGA 03E8 – 03EF Serial port COM 3 03F0 – 03F5 Floppy disk drive channel 1 03F6 Primary IDE channel command...

  • Page 45: Memory Map

    Memory Map Memory Address Range Description 0 K–640 K 00000000 – 0009FFFF DOS conventional memory 640 K–768 K 000A0000 – 000BFFFF VGA memory and BIOS 768 K–896 K 000C0000 – 000DFFFF Expansion card BIOS and buffer 896 K–1024 K 000E0000 – 000FFFFF System BIOS 1024 K–Top of memory 00100000 –...

  • Page 47: Messages

    Messages This chapter lists and describes POST tasks and beep codes, and error messages produced by the system board. POST Tasks and Beep Codes When you turn on power to or restart the system, the system’s basic input/output system (BIOS) runs a number of tasks.
  • Page 48 Code Beeps POST Routine Description Initialize keyboard controller 1- 2- 2- 3 BIOS ROM checksum Initialize cache before memory autosize 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1- 3- 1- 1 Test DRAM refresh 1- 3- 1- 3 Test 8742 Keyboard Controller Set ES segment register to 4 GB Enable A20 line...
  • Page 49 Code Beeps POST Routine Description Initialize EISA board Test keyboard Set key click if enabled 2- 2- 3- 1 Test for unexpected interrupts Initialize POST display service Display prompt "Press F2 to enter SETUP" Disable CPU cache Test RAM between 512 and 640 KB Test extended memory Test extended memory address lines Jump to UserPatch1...
  • Page 50 Code Beeps POST Routine Description Initialize Extended BIOS Data Area Test and initialize PS/ 2 mouse Initialize floppy controller Determine number of ATA drives (optional) Initialize hard disk controllers Initialize local bus hard disk controllers Jump to UserPatch2 Build MPTABLE for multiprocessor boards Install CD ROM for boot Clear huge ES segment register Fixup Multi Processor table...

  • Page 51: Error Messages

    Code Beeps POST Routine Description Display MultiBoot menu Clear screen (optional) Check virus and backup reminders Try to boot with INT 19 Initialize POST Error Manager (PEM) Initialize error logging Initialize error display function Initialize system error handler PnPnd dual CMOS (optional) Initialize notebook docking (optional) Initialize notebook docking late Force check (optional)
  • Page 52 Message Description 02FD: Memory is not supported in bank n Memory in bank n does not meet minimum requirements 02FE: Memory types do not match in bank n Two different type memory modules are inserted into bank n 02FF: Memory test failed; total memory Extended memory test failed;...
