Plus

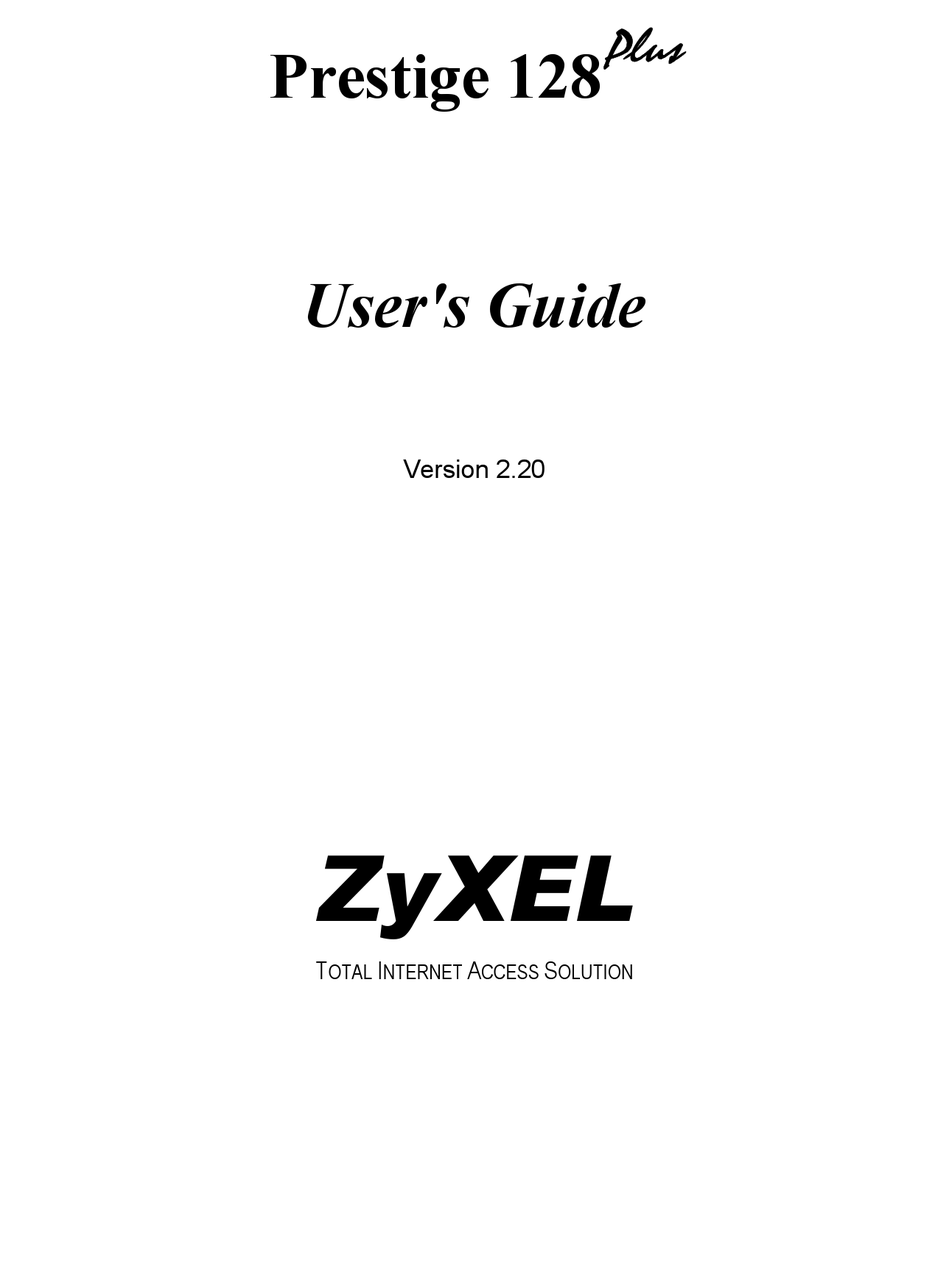

Prestige 128
User's Guide
Version 2.20
ZyXEL
T
I
A
S
OTAL
NTERNET
CCESS
OLUTION

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications Prestige 128 Plus

Summary of Contents for ZyXEL Communications Prestige 128 Plus

  • Page 1 Plus Prestige 128 User's Guide Version 2.20 ZyXEL OTAL NTERNET CCESS OLUTION...
  • Page 2 ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved.
  • Page 3 Prestige 128+ ISDN Router The declarations of CE marking: Plus The Prestige 128 (Prestige 128+) has been approved for connection to the Public Switched Telecommunication Network using interfaces compatible with ITU-TSS recommendation I.420 (Basic Rate ISDN user access). The Prestige 128+ complies with the following directives: 1.

  • Page 4: Zyxel Limited Warranty

    Prestige 128+ ISDN Router ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two (2) years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall...
  • Page 5 Prestige 128+ ISDN Router Customer Support If you have questions about your ZyXEL product or desire assistance, contact ZyXEL Communications Corporation offices worldwide, in one of the following ways: METHOD NORTH AMERICA OUTSIDE NORTH AMERICA E-Mail-Tech support@zyxel.com See your local distributor Support (check http://www.zyxel.com for a...

  • Page 7: Table Of Contents

    Prestige 128+ ISDN Router Table of Contents Prestige 128+ ......................1 Table of Contents ....................vii List of Figures...................... xiii List of Tables ...................... xvii Preface ......................... xxi Chapter 1......................1-1 Getting to Know Your Router ................1-1 1.1 Prestige 128+ ISDN Bridge Router ............1-1 1.2 Features of Prestige 128+.................
  • Page 8 Prestige 128+ ISDN Router Chapter 3 ......................3-1 Internet Access....................3-1 3.1 Route IP Setup ..................3-1 3.2 TCP/IP Parameters ................... 3-2 3.3 TCP/IP Ethernet Setup and DHCP............3-6 3.4 Internet Access Configuration ..............3-9 3.5 Single User Account ................3-12 3.6 Configuring Backup ISP Accounts............
  • Page 9 Prestige 128+ ISDN Router 7.1 Bridging in General..................7-1 7.2 Bridge Ethernet Setup ................7-1 7.3 Bridge Static Route Setup ................. 7-5 Chapter 8......................8-1 Dial-in Server Configuration ................8-1 8.1 Remote Access Server................8-2 8.2 LAN-to-LAN Server Application..............8-3 8.3 Default Dial-In Setup .................
  • Page 10 Prestige 128+ ISDN Router 10.3 How L2TP Works................. 10-2 10.4 The Prestige and L2TP ............... 10-4 Chapter 11 ......................11-1 Filter Configuration ................... 11-1 11.1 About Filtering ..................11-1 11.2 Configuring a Filter Set................ 11-3 11.3 Configuring a Filter Rule..............11-7 11.4 Novell IPX Filter Rule ................
  • Page 11 Prestige 128+ ISDN Router 15.1 System Status ..................15-2 15.2 Log and Trace ..................15-6 15.3 Diagnostic..................15-10 15.4 Backup Configuration ................ 15-13 15.5 Restore Configuration ............... 15-13 15.6 Software Update................15-13 15.7 Command Interpreter Mode .............. 15-16 15.8 Call Control..................15-16 Chapter 16......................

  • Page 13: List Of Figures

    Prestige 128+ ISDN Router List of Figures Figure 1-1 Internet Access Application................1-5 Figure 1-2 LAN-to-LAN Connection Application............. 1-6 Figure 1-3 Telecommuting/Remote Access Server Application ........1-7 Figure 2-1 Front Panel ....................... 2-1 Figure 2-2 Prestige 128+ Rear Panel and Connections............2-3 Figure 2-3 Power-On Display....................
  • Page 14 Prestige 128+ ISDN Router Figure 4-2 Menu 11.1 Remote Node Profile ..............4-3 Figure 4-3 Menu 11.2 - Remote Node PPP Options............4-9 Figure 4-4 Menu 11.5 – Remote Node Filter ..............4-12 Figure 5-1 TCP/IP LAN-to-LAN Application..............5-1 Figure 5-2 Menu 11.3- Remote Node TCP/IP Options ............5-3 Figure 5-3 Sample IP Addresses for a TCPI/IP LAN-to-LAN Connection ......5-4 Figure 5-4 Example of Static Routing Topology..............5-7 Figure 5-5 Menu 12 - Static Route Setup ................5-7...
  • Page 15 Prestige 128+ ISDN Router Figure 8-4 Default Dial-in Filter..................8-8 Figure 8-5 Menu 14 - Dial-in User Setup ................8-9 Figure 8-6 Edit Dial-in User ....................8-9 Figure 8-7 Multiple Server Configuration ............... 8-13 Figure 10-1 How L2TP works ..................10-2 Figure 10-2 Prestige as LNS....................
  • Page 16 Prestige 128+ ISDN Router Figure 15-2 Menu 24.1 - System Maintenance – Status...........15-3 Figure 15-3 LAN Packet That Triggered Last Call ............15-4 Figure 15-4 System Maintenance - Information...............15-5 Figure 15-5 Menu 24.2.2 – System Maintenance – Change Console Port Speed ...15-6 Figure 15-6 Examples of Error and Information Messages..........15-7 Figure 15-7 Menu 24.3.2 - System Maintenance - Syslog and Accounting .....15-8 Figure 15-8 Menu 24.4 - System Maintenance - Diagnostic..........15-10...
  • Page 17 Prestige 128+ ISDN Router List of Tables Table 1-1 IP subnet masks and the number of hosts allowed..........xxv Table 2-1 LED functions....................2-2 Table 2-2 Main Menu Commands .................. 2-7 Table 2-3 Main Menu Summary..................2-9 Table 2-4 General Setup Menu Fields ................2-14 Table 2-5 Menu 2 –...
  • Page 18 Prestige 128+ ISDN Router Table 7-2 Remote Node Network Layers Menu Bridge Options ........7-4 Table 7-3 Bridge Static Route Menu Fields ..............7-6 Table 8-1 Remote Dial-in Users/Remote Nodes Comparison Chart .......8-1 Table 8-2 Default Dial-in Setup Fields................8-5 Table 8-3 Edit Dial-in User Menu Fields ..............8-10 Table 8-4 Edit Dial-in User Menu Fields (continued) ...........
  • Page 19 Prestige 128+ ISDN Router Table 15-4 System Maintenance Menu Diagnostic .............15-11 Table 15-5 Call Control Parameters Fields ..............15-18 Table 15-6 Call History Fields..................15-21 Table 16-1 Troubleshooting the Start-Up of your Prestige ........... 16-1 Table 16-2 Troubleshooting the ISDN Line..............16-2 Table 16-3 Troubleshooting the Ethernet Connection ..........

  • Page 21: Preface

    Prestige 128+ ISDN Router Preface About Your Router Plus Congratulations on your purchase of the Prestige 128 (Prestige 128+) ISDN Router. The Prestige 128+ is a high-performance bridge/router that offers a complete solution for your WAN (Wide Area Network) applications such as Internet access, multi-protocol LAN-to-LAN connections, telecommuting and remote access over ISDN (Integrated Service Digital Network).

  • Page 22: Setup Information Worksheet

    Prestige 128+ ISDN Router If you do not have the ISDN line installed already, we suggest that you order it from your telephone company as soon as possible to avoid the long wait commonly encountered when ordering a new line. To order a new ISDN line, do the following: 1.
  • Page 23 Prestige 128+ ISDN Router System Name - This is the name given to the Prestige for identification purposes. This name should be no more than eight alphanumeric characters. Spaces are not allowed, but ‘-’ and ‘_’ are accepted. You have now collected all of the general setup information you need. Please make sure that you have entered all the values onto the worksheet before proceeding to the next section.

  • Page 24: Collecting Ethernet Setup Information

    Prestige 128+ ISDN Router Supplemental Service Activation Keys – Sometimes called ‘buttons,’ most of the supplemental services supported by the Prestige require that an activation key be set before a feature can be used. You have now collected all of the necessary information about your ISDN telephone line.

  • Page 25: Table 1-1 Ip Subnet Masks And The Number Of Hosts Allowed

    Prestige 128+ ISDN Router Table 1-1 IP subnet masks and the number of hosts allowed IP Subnet Mask Number of Host Number of Bits ID’s 255.255.255.0 255.255.255.128 255.255.255.192 255.255.255.224 255.255.255.255 Structure of this Manual This manual is divided into five parts: 1.
  • Page 26 Prestige 128+ ISDN Router For brevity’s sake, we will use “e.g.” as a shorthand for “for instance” and “i.e.” for “that is” or “in other words” throughout this manual. xxvi Preface...

  • Page 27: Chapter 1

    Prestige 128+ ISDN Router Chapter 1 Getting to Know Your Router This chapter describes the key features and applications of your Prestige. Prestige 128+ ISDN Bridge Router The Prestige 128+ is an ISDN bridge/router. The Prestige is ideal for everything from Internet browsing to receiving calls from remote dial-in users to making LAN-to-LAN connections to remote networks.
  • Page 28 Prestige 128+ ISDN Router Extensive Analog Phone Support The Prestige is equipped with two standard phone jacks for you to connect analog devices such as telephones and FAX machines. It also supports supplementary services such as call waiting and 3-way conferencing. Ethernet Port The P128+ offers a choice of 10Base-T or AUI Ethernet port connections.
  • Page 29 Prestige 128+ ISDN Router PPP Multilink The Prestige can bundle multiple links in a single connection using PPP Multilink Protocol (MP). The number of links can be either statically configured or dynamically managed based on traffic demand. Bandwidth-On-Demand The Prestige dynamically allocates bandwidth by dialing and dropping connections according to traffic demand.

  • Page 30: Networking Compatibility

    Prestige 128+ ISDN Router DHCP Support DHCP (Dynamic Host Configuration Protocol) allows the workstations on your LAN to obtain the configuration from the Prestige. Call Control Your Prestige provides budget management for outgoing calls and maintains a blacklist for unreachable phone numbers in order to save you the expense of unnecessary charges.

  • Page 31: Applications For Prestige 128

    Prestige 128+ ISDN Router ♦ Call Transfer ♦ Call Forwarding Applications for Prestige 128+ The following sections show you the possible applications for your Prestige. 1.3.1 Internet Access The Prestige is the ideal high-speed Internet access solution. Your Prestige supports the TCP/IP protocol, which the Internet uses exclusively. It is also compatible with access servers manufactured by major vendors such as Cisco and Ascend.

  • Page 32: Figure 1-2 Lan-To-Lan Connection Application

    Prestige 128+ ISDN Router 1.3.2 Multi-Protocol/Multilink LAN-to-LAN Connection You can use the Prestige to connect two geographically dispersed networks over up to 128Kbps over a single ISDN BRI line. It incorporates PPP/MP (Point-to- Point Protocol/Multilink Protocol) to bundle two B channels in a BRI line. The Prestige supports TCP/IP and Novell IPX routing, as well as transparent bridging for other network layer protocols.

  • Page 33: Figure 1-3 Telecommuting/Remote Access Server Application

    Prestige 128+ ISDN Router in the office. Either PAP (Password Authentication Protocol) or CHAP (Challenge Handshake Authentication Protocol) authentication can be used to control the access from the remote users. You can also use callback for security and/or accounting purposes. Figure 1-3 Telecommuting/Remote Access Server Application Getting to know your Prestige...

  • Page 35: Chapter 2

    Prestige 128+ ISDN Router Chapter 2 Hardware Installation & Initial Setup This chapter shows you how to connect the hardware and the initial setup. 2.1.1 Front Panel LEDS The LED indicators on the front panel indicate the router functional status of the Prestige.

  • Page 36: Table 2-1 Led Functions

    Prestige 128+ ISDN Router use. Table 2-1 LED functions Hardware Installation and Setup...

  • Page 37: Prestige 128+ Rear Panel And Connections

    Prestige 128+ ISDN Router Prestige 128+ Rear Panel and Connections The figure below shows the rear panel of your Prestige 128MH and the connection diagram. Figure 2-2 Prestige 128+ Rear Panel and Connections This section outlines how to connect your Prestige 128MH to the LAN and to the ISDN network..
  • Page 38 Prestige 128+ ISDN Router Connecting the ISDN Line Step 1. Connect the Prestige to the ISDN network using the included ISDN (black) cable. Plug one end of the cable into the port labeled ISDN BRI and the other to the ISDN wall jack.

  • Page 39: Additional Installation Requirements

    Prestige 128+ ISDN Router Connecting the Power Adapter to your Prestige Step 3. Connect the power adapter to the port labeled POWER on the rear panel of your Prestige. Connecting the Console Port Step 4. For the initial configuration of your Prestige, you need to use a terminal emulator software on a workstation and connect it to the Prestige through the console port.

  • Page 40: Power On Your Prestige

    When you power on your Prestige, it performs several internal tests as well as line initialization. After the initialization, the Prestige asks you to press Enter Copyright (c) 1994 - 1998 ZyXEL Communications Corp. ethernet address: 00:a0:c5:98:23:12 ISDN fi (2) Z XEL P...

  • Page 41: Navigating The Smt Interface

    Prestige 128+ ISDN Router Navigating the SMT Interface The SMT (System Management Terminal) is the interface that you use to configure your Prestige. Several operations that you should be familiar with before you attempt to modify the configuration are listed in the table below. Table 2-2 Main Menu Commands Operation Press/<read>...
  • Page 42 Prestige 128+ ISDN Router Hardware Installation and Setup...

  • Page 43: Figure 2-5 Smt Main Menu

    Prestige 128+ ISDN Router After you enter the password, the SMT displays the Main Menu, as shown below. Copyright (c) 1994 – 1998 ZyXEL Communications Corp. Prestige 128+ Main Menu Getting Started Advanced Management 1. General Setup 21. Filter Set Configuration 2.

  • Page 44: Changing The System Password

    Prestige 128+ ISDN Router Default Dial-in Setup Use this menu to setup default dial-in parameters so that your Prestige can be used as a dial-in server. Dial-in User Setup Use this menu to setup dial-in users. SUA Server Setup Use this menu to specify inside servers when SUA is enabled Filter Set Configuration Use this menu to setup filters to provide security, call control,...
  • Page 45 Prestige 128+ ISDN Router Password. Hardware Installation and Setup 2-11...

  • Page 46: Figure 2-7 Menu 23.1 - System Security - Change Password

    Prestige 128+ ISDN Router When the Submenu 23.1- System Security-Change Password appears, as shown in the figure below, type in your existing system password, i.e., 1234, and press Menu 23.1 – System Security - Change Password Old Password= XXXX New Password= XXXX Retype to confirm= XXXX Enter here to CONFIRM or ESC to CANCEL: [Enter].

  • Page 47: General Setup

    Prestige 128+ ISDN Router General Setup Menu 1 - General Setup contains administrative and system-related information. To enter Menu 1 and fill in the required information, follow these steps: Enter 1 in the Main Menu to open Menu 1 – General Setup. Step 1.

  • Page 48: Table 2-4 General Setup Menu Fields

    Prestige 128+ ISDN Router Table 2-4 General Setup Menu Fields Field Description Example System Name Choose a descriptive name for identification purposes. This P128plus name can be up to 8 alphanumeric characters long. Spaces are not allowed, but dashes “-” and underscores "_" are accepted.

  • Page 49: European Isdn Setup Menus

    Prestige 128+ ISDN Router European ISDN Setup Menus Menu 2 is for you to enter the information about your ISDN line. Please note that the Prestige only accepts digits in phone number fields; please do no include ‘-‘ or spaces in these fields. 2.8.1 Switch Type The only switch type supported in Europe is DSS-1.
  • Page 50 Prestige 128+ ISDN Router 2.8.4 Global Calls A global call is an incoming analog call where the switch did not send the dialed number. This happens most often when the call originates from an analog telephone line. If you specify explicit matching, i.e., Incoming Phone Number Matching is either MSN or Called Party Subaddress, then global calls are always ignored.

  • Page 51: Figure 2-9 Menu 2 - Isdn Setup

    Prestige 128+ ISDN Router is skipped. Figure 2-9 Menu 2 – ISDN Setup Table 2-5 Menu 2 – ISDN Setup Switch Type This field is fixed as DSS1. B Channel Usage In general, this is Switch/Switch. If you are only using one B channel (e.g., your Prestige is sharing the ISDN BRI line with another device on the S/T bus), then select Switch/Unused.

  • Page 52: Advanced Setup

    Prestige 128+ ISDN Router 2.8.7 Advanced Setup Select Yes in the Advanced Setup field of Menu 2 – ISDN Setup above to display menu 2.1 below. ISDN Call Waiting This allows you to place a call on hold while you answer another incoming call on the same telephone (directory) number.

  • Page 53: Ethernet Setup

    Prestige 128+ ISDN Router back test fails, please note the error message that you receive and take the appropriate troubleshooting action. Figure 2-11 Loopback test Ethernet Setup This section describes how to configure the Ethernet using Menu 3 – Ethernet Setup.

  • Page 54: Protocol Dependent Ethernet Setup

    Prestige 128+ ISDN Router sets may be useful to block certain packets, reduce traffic and prevent security breaches. Figure 2-13 Menu 3.1 - General Ethernet Setup If you need to define filters, please read Chapter 9- Filter Set Configuration, then return to this menu to define the filter sets. 2.10 Protocol Dependent Ethernet Setup Depending on the protocols for your applications, you need to configure the respective Ethernet Setup, as outlined below.

  • Page 55: Chapter 3

    Prestige 128+ ISDN Router Chapter 3 Internet Access This chapter shows you how to configure the LAN as well as the WAN of your Prestige for Internet access. Route IP Setup The first step is to enable the IP routing in Menu 1 - General Setup. To edit Menu 1, enter 1 in the Main Menu to select General Setup and press [Enter].

  • Page 56: Tcp/Ip Parameters

    Prestige 128+ ISDN Router TCP/IP Parameters 3.2.1 IP Address and Subnet Mask Similar to the houses on a street that share a common street name, the machines on a LAN share one common network number, also. Where you obtain your network number depends on your particular situation. If the ISP or your network administrator assigns you a block of registered IP addresses, follow their instructions in selecting the IP addresses and the subnet mask.

  • Page 57: Rip Setup

    Prestige 128+ ISDN Router 3.2.2 RIP Setup RIP (Routing Information Protocol) allows a router to exchange routing information with other routers. The RIP Direction field controls the sending and receiving of RIP packets. When set to both, the Prestige will broadcast its routing table periodically and incorporate the RIP information that it receives;...

  • Page 58: Dns Server Address

    Prestige 128+ ISDN Router IP Pool Setup The Prestige is pre-configured with a pool of 32 IP addresses starting from 192.168.1.33 to 192.168.1.64. This configuration leaves 31 IP addresses (excluding the Prestige itself) in the lower range for other server machines, e.g., server for mail, FTP, telnet, web, etc., that you may have.
  • Page 59 Prestige 128+ ISDN Router sure that you enter their IP addresses in the DHCP Setup menu. This way, the Prestige can pass the DNS servers to the workstations and the workstations can query the DNS server directly without the Prestige’s intervention. Internet Access...

  • Page 60: Tcp/Ip Ethernet Setup And Dhcp

    Prestige 128+ ISDN Router TCP/IP Ethernet Setup and DHCP You will now use Menu 3.2 to configure your Prestige for TCP/IP. To edit Menu 3.2, select the menu option Ethernet Setup in the Main Menu. When Menu 3 appears, select the submenu option TCP/IP and DHCP Setup .

  • Page 61: Table 3-1 Dhcp Ethernet Setup Menu Fields

    Prestige 128+ ISDN Router Follow the instructions in the following table on how to configure the DHCP fields. Table 3-1 DHCP Ethernet Setup Menu Fields Field Description Example DHCP Setup DHCP= This field enables/disabled the DHCP server. If it is set to None Server, your Prestige will act as a DHCP server.

  • Page 62: Table 3-2 Tcp/Ip Ethernet Setup Menu Fields

    Prestige 128+ ISDN Router Follow the instructions in the following table to configure TCP/IP parameters for the Ethernet port. Table 3-2 TCP/IP Ethernet Setup Menu Fields Field Description Example TCP/IP Setup IP Address Enter the IP address of your Prestige in dotted decimal 192.168.1.1 notation (default)

  • Page 63: Internet Access Configuration

    Prestige 128+ ISDN Router Internet Access Configuration Menu 4 allows you to enter the Internet Access information in one screen. Menu 4 is actually a simplified setup for one of the remote nodes that you can access in Menu 11. Before you configure your Prestige for Internet access, you need to collect your Internet account information from your ISP.

  • Page 64: Figure 3-3 Menu 4 - Internet Access Setup

    Prestige 128+ ISDN Router From the Main Menu, enter option Internet Access Setup to go to Menu 4 - Internet Access Setup, as displayed below. The following table contains Menu 4 - Internet Access Setup ISP's Name= myISP Pri Phone #= 1234 Sec Phone #= My Login= JohnDoe My Password= ********...

  • Page 65: Table 3-4 Internet Access Setup Menu Fields

    Prestige 128+ ISDN Router Table 3-4 Internet Access Setup Menu Fields Field Description ISP’s Name Enter the name of your Internet Service Provider, e.g., myISP. This information is for identification purposes only. ISP IP Addr Enter the IP Address of the remote gateway at the ISP’s site. If you don’t have this data, just leave it blank.

  • Page 66: Single User Account

    Prestige 128+ ISDN Router Single User Account Typically, if there are multiple users on the LAN wanting to concurrently access the Internet, you will have to lease a block of legal, or globally unique, IP addresses from the ISP. The Single User Account (SUA) feature allows you to have the same benefits as having multiple legal addresses, but only pay for one IP address, thus saving Same Network Number...
  • Page 67 Prestige 128+ ISDN Router the allocation of IP addresses when connecting branch offices to the corporate network. Internet Access 3-13...

  • Page 68: Advantages Of Sua

    Prestige 128+ ISDN Router The IP address for the SUA can be either fixed or dynamically assigned when a call is connected. In addition, you can designate servers, e.g., a web server and a telnet server, on your local network and make them accessible to the outside world.

  • Page 69: Figure 3-5 Menu 4 - Internet Access Setup For Single User Account

    Prestige 128+ ISDN Router 3.5.2 Single User Account Configuration The steps for configuring your Prestige for Single User Account are identical to the conventional Internet access with the exception that you need to fill in two Menu 4 - Internet Access Setup ISP's Name= myISP Pri Phone #= 1234 Sec Phone #=...

  • Page 70: Configuring Backup Isp Accounts

    Prestige 128+ ISDN Router At this point, your Prestige will ask if you wish to test the Internet connection. If you select Yes, the Prestige will call the ISP and test the configuration. If the test fails, note the error messages on the screen and take the appropriate troubleshooting steps.

  • Page 71: To Switch Isp

    Prestige 128+ ISDN Router 3.6.2 To Switch ISP Follow these steps when you need to switch from your primary ISP to a backup ISP: Enter Menu 11 and select your Primary ISP. Step 1. In Menu 11.1, set the Active field to No. Step 2.

  • Page 73: Chapter 4

    Prestige 128+ ISDN Router Chapter 4 Remote Node Configuration A remote node is required for placing calls to a remote gateway. A remote node represents both the remote gateway and the network behind it across a WAN connection. Note that when you use Menu 4 to set up Internet access, you are actually configuring one of the remote nodes.

  • Page 74: Figure 4-1 Menu 11 - Remote Node Setup

    Prestige 128+ ISDN Router Menu 11 - Remote Node Setup Menu 11 - Remote Node Setup 1. nodename 2. ________ 3. ________ 4. ________ 5. ________ 6. ________ 7. ________ 8. ________ 9. ________ 10. ________ 11. ________ 12. ________ Enter Node # to Edit: Figure 4-1 Menu 11 –...

  • Page 75: Figure 4-2 Menu 11.1 Remote Node Profile

    Prestige 128+ ISDN Router Profile Menu Fields table shows how to configure the Remote Node Menu. Figure 4-2 Menu 11.1 Remote Node Profile Table 4-1 Remote Node Profile Menu Fields Field Description Options Rem Node Name This is a required field [?]. Enter a descriptive name for the remote node, for example, Corp.
  • Page 76 Prestige 128+ ISDN Router Node calls your Prestige. Password Incoming: Rem CLID This field is applicable only if Call Direction is either Both or Incoming. Otherwise, a N/A appears in the field. This is the Calling Line ID (the telephone number of the calling party) of this remote node.
  • Page 77 Prestige 128+ ISDN Router y) Phone up line. Numbers If the Primary Phone number is busy or does not answer, your Prestige will dial the Secondary Phone number if available. Some areas require dialing the pound sign # before the phone number for local calls. A # symbol may be included at the beginning of the phone numbers as required.
  • Page 78 Prestige 128+ ISDN Router Nailed-up Connection This field specifies if you want to make the Yes/No connection to this remote node a nailed-up connection. See below for more details. Default= Session Option: Use the space bar to toggle this field to Yes and Blank press [Enter] to open Menu 11.5 to edit the filter Edit Filter Sets...

  • Page 79: Outgoing Authentication Protocol

    Prestige 128+ ISDN Router 4.1.3 Outgoing Authentication Protocol Generally speaking, you should employ the strongest authentication protocol possible, for obvious reasons. However, some vendor’s implementation includes specific authentication protocol in the user profile. It will disconnect if the negotiated protocol is different from that in the user profile, even when the negotiated protocol is stronger than specified.

  • Page 80: Table 4-2 Btr V Mtr For Bod

    Prestige 128+ ISDN Router The configuration of bandwidth on demand focuses on the Base Transmission Rate (BTR) and the Maximum Transmission Rate (MTR). The relationship between BTR and MTR are shown below: Table 4-2 BTR v MTR for BOD BTR & MTR Setting No.

  • Page 81: Figure 4-3 Menu 11.2 - Remote Node Ppp Options

    Prestige 128+ ISDN Router 4.1.6 Editing PPP Options To edit the remote node PPP Options, move the cursor to the Edit PPP Options field in Menu 11.1 - Remote Node Profile, and use the space bar to select Yes. Press Enter to open Menu 11.2, as shown below. Menu 11.2 - Remote Node PPP Options Encapsulation= Standard PPP Compression= No...
  • Page 82 Prestige 128+ ISDN Router 4-10 Remote Node Configuration...

  • Page 83: Table 4-3 Remote Node Ppp Options Menu Fields

    Prestige 128+ ISDN Router Table 4-3 Remote Node PPP Options Menu Fields Field Description Option Encapsulation Select the CISCO PPP only when this remote node Standard is a Cisco machine; otherwise, select the Standard PPP. CISCO PPP Compression Turn on/off Stac Compression. The default for this On/Off field is Off.

  • Page 84: Figure 4-4 Menu 11.5 - Remote Node Filter

    Prestige 128+ ISDN Router 4.1.7 Remote Node Filter to specify the filter set(s) to apply to the Use Menu 11.5 – Remote Node Filter incoming and outgoing traffic between this remote node and the Prestige and to prevent certain packets from triggering calls. You can specify up to 4 filter sets separated by a comma, e.g., 1, 5, 9, 12, in each filter field.

  • Page 85: Chapter 5

    Prestige 128+ ISDN Router Chapter 5 Remote Node TCP/IP Configuration This chapter shows you how to configure the TCP/IP parameters of a remote node. A typical LAN-to-LAN application is to use your Prestige to connect a branch office to the headquarters, as depicted in the following diagram. LAN-to-LAN Application Figure 5-1 TCP/IP LAN-to-LAN Application Remote Node TCP/IP Configuration...
  • Page 86 Prestige 128+ ISDN Router For the branch office, you need to configure a remote node in order to dial out to the headquarters. Additionally, you may also need to define static routes if some services reside beyond the immediate remote LAN. Remote Node TCP/IP Configuration...

  • Page 87: Figure 5-2 Menu 11.3- Remote Node Tcp/Ip Options

    Prestige 128+ ISDN Router 5.1.1 Remote Node Setup Follow the procedure in Chapter 5 - Remote Node Configuration to configure the protocol-independent parameters in Menu 11 - Remote Node Profile. For the TCP/IP parameters, follow the instructions below. If you are configuring your Prestige to receive incoming calls, you also need to set the default dial-in parameters in Menu 13.

  • Page 88: Figure 5-3 Sample Ip Addresses For A Tcpi/Ip Lan-To-Lan Connection

    Prestige 128+ ISDN Router The following diagram explains the Sample IP Addresses to help you to understand the field of My Wan Addr in Menu 11.3. Remote Network Local Network 192.168.1.0 192.168.2.0 192.168.3.1 192.168.3.2 Prestige Figure 5-3 Sample IP Addresses for a TCPI/IP LAN-to-LAN Connection To configure the TCP/IP parameters of a remote node, first configure the three fields in Menu 11 –...

  • Page 89: Table 5-2 Tcp/Ip Remote Node Configuration

    Prestige 128+ ISDN Router Options Menu. The following table shows the TCP/IP related fields in Menu 11.3 - Remote Node Network Layer Options. Table 5-2 TCP/IP Remote Node Configuration Rem IP This will show the IP address you entered for this remote node in Address the previous menu.

  • Page 90: Figure 5-4 Example Of Static Routing Topology

    Prestige 128+ ISDN Router Version= Press the space bar to select the RIP version from RIP-1/RIP- RIP-1 2B/RIP-2M. (default Once you have completed filling in the Network Layer Options Menu, press [Enter] to return to Menu 11. Press [Enter] at the message [Press ENTER to Confirm...] to save your configuration, or press [Esc] at any time to cancel.

  • Page 91: Figure 5-5 Menu 12 - Static Route Setup

    Prestige 128+ ISDN Router Menu 12 - Static Route Setup 1. IP Static Route 2. IPX Static Route 3. Bridge Static Route Please enter selection: To configure an IP static route, use Menu 12, Static Route Setup, as displayed below. Router 1 Router 2 Prestige...

  • Page 92: Figure 5-6 Menu 12.1 - Ip Static Route Setup

    Prestige 128+ ISDN Router Menu 12.1 - IP Static Route Setup 1. ________ 2. ________ 3. ________ 4. ________ 5. ________ 6. ________ 7. ________ 8. ________ Enter selection number: Figure 5-6 Menu 12.1 - IP Static Route Setup Choosing a static route to edit produces the following screen. Menu 12.1.1 - Edit IP Static Route Route #: 1 Route Name= ?

  • Page 93: Table 5-3 Edit Ip Static Route Menu Fields

    Prestige 128+ ISDN Router Table 5-3 Edit IP Static Route Menu Fields Field Description Route Name Enter a descriptive name for this route. This is for identification purposes only. Active This field allows you to activate/deactivate this static route. Destination IP This parameter specifies the IP network address of the final destination.

  • Page 95: Chapter 6

    Prestige 128+ ISDN Router Chapter 6 IPX Configuration This chapter shows you how to configure the IPX parameters of the Prestige. IPX Network Environment Novell bundles the protocol stack, the server software and routing functionality in their NetWare server products. So a NetWare server is not only a file or print server, it is also a router.

  • Page 96: Figure 6-1 Netware Server

    Prestige 128+ ISDN Router 6.1.2 Frame Types IPX can run on top of four different frame types on the Ethernet. These frame types are 802.2, 802.3, Ethernet II (DIX), and SNAP (Sub-Network Access Protocol). Each frame type is a separate logical network, even though they exist on one physical cable ( see the following diagram).

  • Page 97: Prestige In An Ipx Environment

    Prestige 128+ ISDN Router 6.1.4 Internal Network Number In addition to the external network numbers, each NetWare server has its own internal network number that is a virtual network to which the server is attached. It is important to remember that every network number must be unique for that Seed Router (Client Side) Not Seed Router (Server Side) Assigns Network Number...

  • Page 98: Ipx Spoofing

    Prestige 128+ ISDN Router 6.2.1 Prestige on LAN with Server If your Prestige is on a LAN with a seed router, you do not need to configure the LAN network numbers. Your Prestige will learn the network number from the seed router and add the routes to its routing table.

  • Page 99: Ipx Ethernet Setup

    Prestige 128+ ISDN Router IPX Ethernet Setup From Menu 3 - Ethernet Setup, select option Novell IPX Setup to go to Menu 3.3 - Novell IPX Ethernet Setup as shown in the figure below. Menu 3.3 - Novell IPX Ethernet Setup Seed Router= No Frame Type 802.2= Yes IPX Network #= N/A...

  • Page 100: Lan-To-Lan Application With Novell Ipx

    Prestige 128+ ISDN Router Press [Enter] at the message [Press ENTER to Confirm ...] to save your configuration, or press [Esc] at any time to cancel. LAN-to-LAN Application with Novell IPX Corporate LAN Branch Office LAN External Network External Network Number = 333 Number = 222 NetWare...

  • Page 101: Figure 6-5 Menu 11.3 - Remote Node Novell Ipx Options

    Prestige 128+ ISDN Router 6.5.1 IPX Remote Node Setup Follow the procedure in Chapter 5 to configure the protocol-independent parameters in Menu 11.1 - Remote Node Profile. For the IPX-specific parameters in Menu 11.3 - Remote Node Network Layer Options follow the instructions below.

  • Page 102: Table 6-2 Remote Node Novell Ipx Options

    Prestige 128+ ISDN Router The table below describes the IPX-specific parameters of the remote node setup. Table 6-2 Remote Node Novell IPX Options Field Description Option Dial-On- This field is necessary for your Prestige on the client side. When Yes/No Query set to Yes, any Get Service SAP or RIP broadcasts will trigger your Prestige to make a call to that remote node.

  • Page 103: Figure 6-6 Menu 12.2 - Edit Ipx Static Route

    Prestige 128+ ISDN Router 6.5.2 IPX Static Route Setup Similar to IP, IPX static routes tell the Prestige how to reach servers beyond a remote node before a connection to that remote node is established. From Menu 12, select two, then select one of the IPX Static Routes to open Menu 12.2.1 - Edit IPX Static Route, as shown below.

  • Page 104: Table 6-3 Edit Ipx Static Route Menu Fields

    Prestige 128+ ISDN Router The following table contains the instructions on how to configure the Edit IP Static Route Menu. Table 6-3 Edit IPX Static Route Menu Fields Field Description Server Name In this field, enter the name of the server. This must be the exact name configured in the NetWare server.

  • Page 105: Chapter 7

    Prestige 128+ ISDN Router Chapter 7 Bridging Setup This chapter shows you how to configure the bridging parameters of your Prestige. Bridging in General Bridging bases the forwarding decision on the MAC (Media Access Control), or hardware, address, while routing does it on the network layer (IP or IPX) address. Bridging allows the Prestige to transport packets of network layer protocols that the Prestige does not route, e.g., SNA, from one network to another.

  • Page 106: Figure 7-1 Menu 3.5 - Bridge Ethernet Setup

    Prestige 128+ ISDN Router From Menu 3 - Ethernet Setup, enter option Bridge Setup and Menu 3.4 - Bridge Ethernet Setup displays as shown below. Menu 3.4 - Bridge Ethernet Setup Handle IPX= None Press ENTER to CONFIRM or ESC to CANCEL: Press Space Bar to Toggle.

  • Page 107: Figure 7-2 Menu 11.3 - Remote Node Bridging Options

    Prestige 128+ ISDN Router 7.2.1 Remote Node Bridging Setup Follow the procedure in Chapter 5 to configure the protocol-independent parameters in Menu 11.1 - Remote Node Profile. For bridging-specific parameters, you need to configure Menu 11.3 - Remote Node Network Layer Options.

  • Page 108: Table 7-2 Remote Node Network Layers Menu Bridge Options

    Prestige 128+ ISDN Router The following table describes the bridging-specific parameters in the Remote Node Profile and Network Layers menus. Table 7-2 Remote Node Network Layers Menu Bridge Options Field Description Bridge Make sure this field is set to Yes. Edit IP/IPX/Bridge Press the space bar to change it to Yes and press Enter] to go to the Network Layer Options Menu.

  • Page 109: Bridge Static Route Setup

    Prestige 128+ ISDN Router Bridge Static Route Setup Similar to network layer static routes, a bridging static route tells the Prestige about the route to a node before a connection is established. You configure bridge static routes in Menu 12.3.1, by pressing 3 in menu 12 and then selecting Menu 12.3 - Bridge Static Route Setup 1.

  • Page 110: Table 7-3 Bridge Static Route Menu Fields

    Prestige 128+ ISDN Router The following table describes the Bridge Static Route Menu. Table 7-3 Bridge Static Route Menu Fields Field Description Route Name Enter a name for the bridge static route for identification purposes. Active Activate/deactivate the static route. Ether Address Enter the MAC address of the destination machine that you wish to bridge the packets to.

  • Page 111: Chapter 8

    Prestige 128+ ISDN Router Chapter 8 Dial-in Server Configuration You can configure your Prestige to receive calls from remote dial-in users, e.g., telecommuters, as well as remote nodes. There are several differences between dial-in users and remote nodes, as summarized in the table below. Table 8-1 Remote Dial-in Users/Remote Nodes Comparison Chart Remote Dial-in Users Remote Nodes...

  • Page 112: Remote Access Server

    Prestige 128+ ISDN Router Remote Access Server Telecommuting enables people to work at remote sites and yet still have access to the resources in the business office. Typically, a telecommuter will use a client workstation with TCP/IP and dial-out capabilities, e.g., a Windows PC or a Macintosh.

  • Page 113: Lan-To-Lan Server Application

    Prestige 128+ ISDN Router LAN-to-LAN Server Application Your Prestige can also be used as a dial-in server for LAN-to-LAN application to provide access for the workstations on a remote network. For your Prestige to be set up as a LAN-to-LAN server, you need to configure the Default Dial-In Setup to set the operational parameters for incoming calls.

  • Page 114: Default Dial-In Setup

    Prestige 128+ ISDN Router Default Dial-In Setup This section covers the default dial-in parameters. The parameters in Menu 13 affect incoming calls from both remote dial-in users, and remote nodes until authentication is completed. Once authentication is completed and if it matches a Menu 13 - Default Dial-in Setup Telco Options: IP Address Supplied By:...

  • Page 115: Table 8-2 Default Dial-In Setup Fields

    Prestige 128+ ISDN Router Table 8-2 Default Dial-in Setup Fields Field Description Option Telco Options: This field sets the CLID authentication parameter for all CLID Authen incoming calls. There are three options for this field: None None - No CLID is required. Required Required –...
  • Page 116 Prestige 128+ ISDN Router respond to the far end’s PAP authentication request. This field does not apply to CHAP authentication. This field is applicable only if the Mutual Authen. Field PAP Password is set to Yes. Enter in the PAP password to be used to respond to the far end’s authentication request.
  • Page 117 Prestige 128+ ISDN Router This field is applicable only if you selected Yes in the IP Pool: IP Start Addr Dial-In IP Address Supplied By: IP Pool field. The IP pool contains contiguous IP addresses and this field specifies the first one in the pool. IP Count (1,2) In this field, enter the number (1 or 2,) of addresses in 1, 2...

  • Page 118: Dial-In Users Setup

    Prestige 128+ ISDN Router 8.3.1 Default Dial-in Filter to specify the filter set(s) to apply to the Use Menu 13.1 – Default Dial-in Filter incoming and outgoing traffic between all dial-in users and your Prestige. Note that the filter set(s) only applies to the dial-in users but not the remote nodes. You can specify up to 4 filter sets separated by comma, e.g., 1, 5, 9, 12, in each filter field.

  • Page 119: Figure 8-5 Menu 14 - Dial-In User Setup

    Prestige 128+ ISDN Router Figure 8-5 Menu 14 - Dial-in User Setup Select one of the users by number, this will bring you to Menu 14.1 - Step 2. Edit Dial-in User, as shown below. Menu 14.1 - Edit Dial-in User User Name= ? Active= Yes Password= ?

  • Page 120: Table 8-3 Edit Dial-In User Menu Fields

    Prestige 128+ ISDN Router The following table provides instructions on how to fill in the Edit Dial-In User fields. Table 8-3 Edit Dial-in User Menu Fields Field Description Option User This is a required field. This will be used as the login name for Name authentication.

  • Page 121: Table 8-4 Edit Dial-In User Menu Fields (Continued)

    Prestige 128+ ISDN Router Table 8-4 Edit Dial-in User Menu Fields (continued) Field Description Option Rem CLID If you enable CLID Authen field in Menu 13, then you need to specify the telephone number from which this user calls. Your Prestige will check the CLID in the incoming call against the CLIDs in the database.

  • Page 122: Multiple Servers Behind Sua

    Prestige 128+ ISDN Router usage is charged to the company instead of the employees, and your accounting department can avoid the hassles of accountability and reimbursement. Multiple Servers behind SUA If you wish, you can make inside servers for different services, e.g., web or FTP, visible to the outside users, even though SUA makes your whole inside network appear as a single machine to the outside world.

  • Page 123: Figure 8-7 Multiple Server Configuration

    Prestige 128+ ISDN Router 2. Enter an index number in menu 15 to go to menu 15.1, SUA Server Menu 15 - Multiple Server Configuration Port # Address ---- --------------- Default 0.0.0.0 2. 0 0.0.0.0 3. 0 0.0.0.0 4. 0 0.0.0.0 5.
  • Page 124 Prestige 128+ ISDN Router Services Port Number FTP (File Transfer Protocol) Telnet SMTP (Simple Mail Transfer Protocol) DNS(Domain Name System) HTTP (Hyper Text Transfer protocol or WWW, Web) 80 PPTP (Point-to-Point Tunneling Protocol) 1723 8-14 Dial-In Server Configuration...

  • Page 125: Chapter 9

    Prestige 128+ ISDN Router Chapter 9 Advanced Phone Services The Prestige 128+ supports a comprehensive set of advanced calling features known as Supplemental Services. These features include: ♦ Call Waiting ♦ Three Way Calling (conference) ♦ Call Transfer ♦ Call Forwarding Getting Started 9.1.1 Things you need to know before you start using Supplemental Services.

  • Page 126: Setting Up Supplemental Phone Service

    Prestige 128+ ISDN Router Setting Up Supplemental Phone Service All Supplemental Phone Services are enabled by default except for Call Waiting, which is disabled by default but can be enabled in Menu 2.1- ISDN Advanced Setup. The Calling Line Indication or Caller ID, also in this menu decides whether the other party can see your number when you call.

  • Page 127: Three Way Calling

    Prestige 128+ ISDN Router current call on hold and answer the incoming call, press the flash key after hearing a call waiting indicator tone. Dropping current call to switch to incoming/holding call. After hearing a Call Waiting indicator tone, simply hang up the telephone and wait for the telephone to ring before answering the incoming/holding call.

  • Page 128: Call Transfer

    Prestige 128+ ISDN Router Simply press the flash key. The last call that was added to the conference is dropped. To drop yourself from the conference call: If you hang up your telephone during a three-way-call and the two other callers remain on the line, the ISDN network will do an implicit transfer to directly connect the two remaining callers together.

  • Page 129: Call Forwarding

    Prestige 128+ ISDN Router ♦ Before Caller B picks up the call, you can transfer the call by pressing the flash key. The call is automatically transferred. Call Forwarding Call forwarding means the switch will ring another number at a place where you will be when someone dials your directory number.
  • Page 130 Prestige 128+ ISDN Router #20# Deactivate CFB #21# Deactivate CFU #22# Deactivate CFNR Either method should work fine, and you can use whichever one you are most comfortable with. Advanced Phone Services...

  • Page 131: Chapter 10

    Prestige 128+ ISDN Router Chapter 10 L2TP Support This chapter shows how to reduce the cost of remote dial-up networking by taking advantage of the Internet using L2TP (Layer 2 Tunneling Protocol). 10.1 What is L2TP? Tunneling is the key to L2TP (and other virtual dial-up services). With tunneling, protocol packets of one type of network are put inside or encapsulated in the protocol packets of another network for transport across that network.

  • Page 132: Advantages Of L2Tp

    Prestige 128+ ISDN Router 10.2 Advantages of L2TP: ♦ Users can take advantage of the low cost of the Internet. Instead of making a long-distance call to connect directly with the corporate site’s remote access server, remote users dial in to a local ISP and use the Internet to handle all long-distance connections.
  • Page 133 Prestige 128+ ISDN Router In L2TP terminology, the NAS (network access server) at the ISP is the L2TP client and is called a LAC (L2TP Access Concentrator). The Prestige at the corporate LAN is the server and is called a LNS (L2TP Network Server). A tunnel exists between the LAC and the LNS.

  • Page 134: The Prestige And L2Tp

    Prestige 128+ ISDN Router The remote user dials in to an ISP. A tunnel is then set up from the ISP across the Internet to a corporate gateway server. Once the tunnel is set up, mobile users access the corporate network as if they had dialed directly into that network. 10.3.3 Internet-based tunnel process: 1.

  • Page 135: Figure 10-2 Prestige As Lns

    Prestige 128+ ISDN Router 10.4.1 Endpoint Table Both the LNS and the LAC refer to this table to find the tunnel endpoint. Please note that a receiving L2TP endpoint must have a fixed, globally unique IP address while an initiating endpoint may have a dynamic IP address. 10.4.2 Prestige as LNS Figure 10-2 Prestige as LNS Incoming Call...
  • Page 136 Prestige 128+ ISDN Router In this scenario, the ISP is the LAC. The LAC will search for the Endpoint Name (domain or realm name) in its endpoint table to know whether it should create a tunnel or not (i.e., ordinary Internet access). In the above example, a tunnel is created between the Prestige LNS and the LAC.

  • Page 137: Figure 10-4 Prestiges In Direct Mode

    Prestige 128+ ISDN Router Table 10-1 SMT Menu 11.1- Remote Profile L2TP fields Field Description Tunneling mode Select mode of Layer 2 Tunneling Protocol (L2TP in menu 10). Choices are None, Direct or Proxy. Endpoint Index This is the corresponding index number of the endpoint tunnel in Menu 10.

  • Page 138: Figure 10-5 Menu 10 - Tunnel Endpoint Setup

    Prestige 128+ ISDN Router since the LAC’s IP address could be dynamically assigned each time a call is made to the ISP, the user can enter any IP address in this case i.e., it is irrelevant – see Figure 10-2. The LNS will accept the tunnel setup request from any IP address as long as My Host Name and Shared Secret are correct.

  • Page 139: Figure 10-7 Prestige In Proxy Mode

    Prestige 128+ ISDN Router Peer Host Name This is the name of the peer computer at the far end. Shared Secret This password must be the same for both endpoints. IP Address A receiving L2TP endpoint must have a fixed, globally unique IP address.
  • Page 140 Prestige 128+ ISDN Router tunneling. In Figure 10-2 above, zyxel.com.tw is entered as the Endpoint Name for the LAC in order to set up a tunnel to ZyXEL-HQ. Outgoing Call Here, the LNS asks the Prestige LAC to place a call on its behalf. If outgoing calls are allowed and there is an idle phone line, the LAC will place the call.

  • Page 141: Filter Configuration

    Prestige 128+ ISDN Router Chapter 11 Filter Configuration 11.1 About Filtering Your Prestige uses filters to decide whether or not to allow passage of a data packet and/or to make a call. There are two types of filters: data filters and call filters.

  • Page 142: Figure 11-1 Outgoing Packet Filtering Process

    Prestige 128+ ISDN Router Call Filters Active Data Built-in User-defined Data match match match Outgoing Initiate call default Call Filters Filters Packet if line not up Call Filters (if applicable) Send packet and reset Idle Timer Match Match Match Drop Drop packet Drop packet packet...

  • Page 143: Configuring A Filter Set

    Prestige 128+ ISDN Router 11.2 Configuring a Filter Set To configure a filter set, follow the procedure below: Select option 21. Filter Set Configuration from the Main Menu to Step 1. open Menu 21. Menu 21 - Filter Set Configuration Filter Filter Set #...

  • Page 144: Figure 11-3 Menu 21.1 - Filter Rules Summary

    Prestige 128+ ISDN Router Menu 21.1 - Filter Rules Summary # A Type Filter Rules M m n - - ---- -------------------------------------------- --------- - - - Enter Filter Rule Number (1-6) to Configure: Figure 11-3 Menu 21.1 - Filter Rules Summary 11.2.1 Filter Rules Summary Menu This screen shows the summary of the existing rules in the filter set.

  • Page 145: Table 11-2 Abbreviations Used In The Filter Rules Summary Menu (Continued)

    Prestige 128+ ISDN Router Table 11-2 Abbreviations Used in the Filter Rules Summary Menu (continued) Abbreviations Description Display Filter Rules The filter rule parameters will be displayed here (see below). Refers to More. [Y] means there are more rules to check.

  • Page 146: Table 11-4 Abbreviations Used If Filter Type Is Ipx

    Prestige 128+ ISDN Router If the filter type is IPX, the following abbreviations listed in the following table will be used. Table 11-4 Abbreviations Used If Filter Type Is IPX Abbreviation Description IPX Packet Type Source Socket Destination Socket If the filter type is GEN (generic), the following abbreviations listed in the following table will be used.

  • Page 147: Configuring A Filter Rule

    Prestige 128+ ISDN Router 11.3 Configuring a Filter Rule To configure a filter rule, enter its number in Menu 21.1 - Filter Rules Summary and press Enter to open Menu 21.1.1 for the rule. There are three types of filter rules: TCP/IP, IPX and Generic. Depending on the type of rule, the parameters below the type will be different.

  • Page 148: Figure 11-4 Menu 21.1.1 - Tcp/Ip Filter Rule

    Prestige 128+ ISDN Router Menu 21.1.1 - TCP/IP Filter Rule Filter #: 1,1 Filter Type= TCP/IP Filter Rule Active= No IP Protocol= 0 IP Source Route= No Destination: IP Addr= IP Mask= Port #= 0 Port # Comp= None Source: IP Addr= IP Mask= Port #= 0 Port # Comp= None...

  • Page 149: Table 11-6 Tcp/Ip Filter Rule Menu Fields

    Prestige 128+ ISDN Router The following table describes how to configure your TCP/IP filter rule. Table 11-6 TCP/IP Filter Rule Menu Fields Field Description Option Active This field activates/deactivates the filter rule. Yes/No IP Protocol Protocol refers to the upper layer protocol, e.g., TCP is 0-255 6, UDP is 17 and ICMP is 1.
  • Page 150 Prestige 128+ ISDN Router Field Description Option TCP Estab This field is applicable only when IP Protocol field is 6, Yes/No TCP. If yes, the rule matches only established TCP connections; else the rule matches all TCP packets. More If yes, a matching packet is passed to the next filter rule Yes / N/A before an action is taken;...

  • Page 151: Figure 11-5 Menu 21.1.2 - Generic Filter Rule

    Prestige 128+ ISDN Router 11.3.2 Generic Filter Rule This section shows you how to configure a generic filter rule. The purpose of generic rules is to allow you to filter non-IP/IPX packets. For IP and IPX packets, it is generally easier to use the IP and IPX rules directly. For generic rules, the Prestige treats a packet as a byte stream as opposed to an IP or IPX packet.

  • Page 152: Table 11-7 Generic Filter Rule Menu Fields

    Prestige 128+ ISDN Router The table below describes the fields in the Generic Filter Rule Menu. Table 11-7 Generic Filter Rule Menu Fields Field Description Default Offset Enter the starting byte of the data portion in the packet that you Default = 0 wish to compare.

  • Page 153: Novell Ipx Filter Rule

    Prestige 128+ ISDN Router 11.4 Novell IPX Filter Rule This section shows you how to configure an IPX filter rule. IPX filters allow you to base the rules on the fields in the IPX headers. To configure an IPX rules, select IPX Filter Rule from the Filter Type field and press Enter to open Menu 21.1.3 IPX Filter Rule, as shown in the figure below.

  • Page 154: Table 11-8 Ipx Filter Rule Menu Fields

    Prestige 128+ ISDN Router The table below describes the IPX Filter Rule. Table 11-8 IPX Filter Rule Menu Fields Field Description IPX Packet Type Enter the IPX packet type (1-byte in hexadecimal) you wish to filter. The popular types are (in hexadecimal): 01 - RIP 04 - SAP 05 - SPX (Sequenced Packet eXchange)
  • Page 155 Prestige 128+ ISDN Router Once you have completed filling in Menu 21.1.3 - IPX Filter Rule, press [Enter] at the message [Press Enter to Confirm] to save your configuration, or press [Esc] to cancel. This data will now be displayed on Menu 21.1 - Filter Rules Summary. Filter Configuration 11-15...

  • Page 157: Chapter 12

    Prestige 128+ ISDN Router Chapter 12 SNMP Configuration 12.1 About SNMP SNMP (Simple Network Management Protocol) is a protocol for network management and monitoring. Your Prestige supports SNMP agent functionality, which allows a manager station to manage and monitor the Prestige through the network.

  • Page 158: Table 12-1 Snmp Configuration Menu Fields

    Prestige 128+ ISDN Router The following table describes the SNMP configuration parameters. Table 12-1 SNMP Configuration Menu Fields Field Description Default Enter the get community, which is the password for the incoming public Community Get- and GetNext- requests from the management station. Enter the set community, which is the password for incoming Set- public Community...

  • Page 159: Chapter 13

    Prestige 128+ ISDN Router Chapter 13 System Security This chapter covers Menu 23, which is for you to change the system password and to configure an external authentication server. 13.1 Changing the System Password To change the system password, following steps below: Select option System Security in the Main Menu to open Menu 23 Step 1.

  • Page 160: Figure 13-2 Menu 23.1 - System Security - Change Password

    Prestige 128+ ISDN Router From the System Security Menu, select option Change Password to Step 2. open Menu 23.1 - System Security - Change Password. Enter your existing system password and press [Enter]. Step 3. Menu 23.1 - System Security - Change Password Old Password= XXXXXXXX New Password= XXXXXXXX Retype to confirm= XXXXXXXX...

  • Page 161: Using Radius Authentication

    Prestige 128+ ISDN Router 13.2 Using RADIUS Authentication Your Prestige has a built-in dial-up user list; however, the number of users that can be stored locally is limited due to memory constraints. If you have more users than what the Prestige can store locally, use an external RADIUS (Remote Authentication Dial-In User Service) server that provides authentication service for unlimited number of users.
  • Page 162 Prestige 128+ ISDN Router These changes add the support for CLID authentication, as described in the section below. 13-4 System Security...

  • Page 163: Figure 13-3 Menu 23.2 - System Security - External Server

    Prestige 128+ ISDN Router 13.2.2 RADIUS Server Configuration To configure the RADIUS server, select option 23, System Security, from the Main Menu to open Menu 23 - System Security. Select option 2, External Server from this menu to open Menu 23.2 - System Security - External Server, shown below.

  • Page 164: Table 13-1 System Security - External Server Menu Fields

    Prestige 128+ ISDN Router The fields in the System Security - External Server Menu are listed in the following table. Table 13-1 System Security - External Server Menu Fields Field Description Default Active Determines whether the external security facility is enabled. If No, only the built-in dial-up user list will be used.
  • Page 165 Prestige 128+ ISDN Router 13.2.4 Adding Users to the RADIUS Database To add a user to the RADIUS database, edit the file in the RADIUS users server’s directory, and add a line similar to the following: /etc/raddb Joeuser Password = “joepassword” 13.2.5 Using RADIUS Authentication for CLID To use RADIUS for CLID authentication, create a user record in the file...

  • Page 167: Chapter 14

    Prestige 128+ ISDN Router Chapter 14 Telnet Configuration and Capabilities 14.1 About Telnet Configuration Before the Prestige is properly setup for TCP/IP, the only option for configuring it is through the console port. Once your Prestige is configured, you can use telnet to configure it remotely as shown below.

  • Page 168: Telnet Under Sua

    Prestige 128+ ISDN Router 14.2 Telnet Under SUA When Single User Account (SUA) is enabled and an inside server is specified, telnet connections from the outside will be forwarded to the inside server. So to configure the Prestige via telnet from the outside, you must first telnet to the inside server, and then telnet from the server to the Prestige using its inside LAN IP address.

  • Page 169: Chapter 15

    Prestige 128+ ISDN Router Chapter 15 System Maintenance This chapter covers the diagnostic tools that help you to maintain your Prestige. These tools include updates on system status, port status, log and trace capabilities and upgrades for the system software. This chapter describes how to use these tools in detail.

  • Page 170: System Status

    Prestige 128+ ISDN Router 15.1 System Status The first selection, System Status, gives you information on the version of your system firmware and the status and statistics of the ports, as shown in below. System Status is a tool that can be used to monitor your Prestige. Specifically, it gives you information on your system software version, ISDN telephone line status, number of packets sent and number of packets received.

  • Page 171: Figure 15-2 Menu 24.1 - System Maintenance - Status

    Prestige 128+ ISDN Router Figure 15-2 Menu 24.1 - System Maintenance – Status The following table describes the fields present in Menu 24.1 - System Maintenance - Status. Table 15-1 System Maintenance - Status Menu Fields Field Description Chan Shows statistics for B1 and B2 channels respectively. This is the information displayed for each channel: Link Shows the name of the remote node or the user the channel is...

  • Page 172: Figure 15-3 Lan Packet That Triggered Last Call

    Prestige 128+ ISDN Router Chan 1 IP Addr Refers to the IP address of the Prestige on Channel 1. Chan 2 IP Addr Refers to the IP address of the Prestige on Channel 2. Chan 1 CLID Shows the Calling Line Identification of the peer on Chan 1. LAN Packet Which Triggered Last Call: (Type IP) 45 00 00 3C 02 12 00 00 3B 01 36 49 00 00 00 00 C0 44 87 22 08 00 62 2B 20 04 00 00 00 08 A9 D0 C0 44 87 22 00 01 02 03 04 05 06 07 08 09 0A 0B...

  • Page 173: Figure 15-4 System Maintenance - Information

    Prestige 128+ ISDN Router 15.1.1 System Information Menu 24.2.1 – System Maintenance - Information Name:P128Plus Routing: IP RAS S/W Version: V2.20(B.00)B05 | 11/16/98 ISDN F/W Version: V 082 Country Code: 238 Ethernet Address:00:a0:c5:02:34:56 IP Address: 192.168.1.1 IP Mask: 255.255.255.0 DHCP: Server Press ESC or RETURN to Exit: Figure 15-4 System Maintenance - Information Table 15-2 Fields in System Maintenance...

  • Page 174: Log And Trace

    Prestige 128+ ISDN Router 15.1.2 Console Port Speed You can set up different port speeds for the console port through Menu 24.2.2 – Console Port Speed. Your Prestige supports 9600 (default), 19200, 38400, 57600, and 115200bps for the console port. Use the space bar to select the Menu 24.2.2 –...

  • Page 175: Figure 15-6 Examples Of Error And Information Messages

    Prestige 128+ ISDN Router Select the first option from Menu 24.3 - System Maintenance - Log Step 3. and Trace to display the error log in the system. After the Prestige finishes displaying, you will have the option to clear the error log.

  • Page 176: Figure 15-7 Menu 24.3.2 - System Maintenance - Syslog And Accounting

    Prestige 128+ ISDN Router 15.2.2 Syslog And Accounting The Prestige uses the UNIX syslog facility to log the CDR (Call Detail Record) and system messages to a syslog server. Syslog and accounting can be configured Menu 24.3.2 -- System Maintenance - Syslog and Accounting Syslog: Active= No Syslog IP Address= ?
  • Page 177 Prestige 128+ ISDN Router Your Prestige sends three types of syslog messages: call information messages (i.e. CDR), error information messages and session information messages. Some examples of these syslog messages are shown below: 1. Call Information Messages: line 1 channel 1, call 41, C01, Incoming Call, 40001 line 1 channel 1, call 41, C01, ANSWER Connected, 49K 40001 line 1 channel 1, call 41, C01, Incoming Call, Call Terminated...

  • Page 178: Diagnostic

    Prestige 128+ ISDN Router 15.3 Diagnostic The diagnostic facility allows you to test the different aspects of your Prestige to determine if it is working properly. Menu 24.4 allows you to choose among Menu 24.4 - System Maintenance - Diagnostic System Hang Up B1 Call 21.

  • Page 179: Table 15-4 System Maintenance Menu Diagnostic

    Prestige 128+ ISDN Router The following table describes the diagnostic tests available in Menu 24.4 for your Prestige and the connections. Table 15-4 System Maintenance Menu Diagnostic Field Description Hang Up B1 This tool hangs up the B1 channel. This is only applicable if the B1 channel Call is currently in use.

  • Page 180: Figure 15-9 Trace Display For A Successful Manual Call

    Prestige 128+ ISDN Router Start dialing for node <1> ### Hit any key to continue. ### Dialing chan<2> phone<last 9-digit>:12345 Call CONNECT speed<64000> chan<2> prot<1> LCP up CHAP send response CHAP login to remote OK! IPCP negotiation started IPCP up Figure 15-9 Trace Display for a Successful Manual Call This figure shows a trace example where authentication failed.

  • Page 181: Backup Configuration

    Prestige 128+ ISDN Router 15.4 Backup Configuration Option 5 from Menu 24 - System Maintenance allows you to backup the current Prestige configuration to your workstation. Backup is highly recommended once your Prestige is functioning properly. You must perform the backup and restore through the console port. Any serial communications program should work fine;...

  • Page 182: Figure 15-11 Menu 24.7 - System Maintenance - Upload Firmware

    Prestige 128+ ISDN Router RAS and ISDN code update - Type ‘atur’ and wait until the Prestige responds with an OK to begin uploading the new software (upload procedure varies depending on the type of software used to access the Prestige). You must use the XMODEM protocol to perform the upload.

  • Page 183: Figure 15-12 Boot Module Commands

    Prestige 128+ ISDN Router Figure 15-12 Boot module commands System Maintenance 15-15...

  • Page 184: Command Interpreter Mode

    Prestige 128+ ISDN Router 15.7 Command Interpreter Mode This option allows you to enter the command interpreter mode. A list of valid commands can be found by typing [help] at the command prompt. For more detailed information, check the ZyXEL Web site or send e-mail to the ZyXEL Enter Menu Selection Number: 8 P128plus>...

  • Page 185: Figure 15-14 Menu 24.9 - System Maintenance - Call Control

    Prestige 128+ ISDN Router The blacklist function prevents the Prestige from re-dialing to an unreachable phone number. It is a list of phone numbers, up to a maximum of 14, to which the Prestige will not make an outgoing call. If the Prestige tries to dial to a phone number and fails a certain number of times (configurable in Menu 24.9.1), then the phone number is put in the blacklist.

  • Page 186: Table 15-5 Call Control Parameters Fields

    Prestige 128+ ISDN Router Table 15-5 Call Control Parameters Fields Field Description Dialer Timeout: The Prestige will timeout if it can not set up an outgoing Digital Call (sec) digital call within the timeout value. The default is 30. Retry Counter How many times a busy or ‘no answer’...

  • Page 187: Figure 15-16 Menu 24.9.2 - Blacklist

    Prestige 128+ ISDN Router Menu 24.9.2 shows the list of telephone numbers that have been blacklisted. Menu 24.9.2 - Blacklist Phone Number Remove Selection(1-14): Figure 15-16 Menu 24.9.2 - Blacklist System Maintenance 15-19...

  • Page 188: Figure 15-17 Menu 24.9.3 - Budget Management

    Prestige 128+ ISDN Router 15.8.3 Budget Management Menu 24.9.3 shows the budget management statistics for outgoing calls. Menu 24.9.3 - Budget Management Remote Node Connection Time/Total Budget Elapsed Time/Total Period 1. isp1 No Budget No Budget 2. -------- 3. -------- 4.

  • Page 189: Figure 15-18 Call History

    Prestige 128+ ISDN Router This is the fourth option in Call Control and relays information about past incoming and outgoing calls. Menu 24.9.4 - Call History Phone Number Rate #call Total Enter Entry to Delete(0 to exit): Figure 15-18 Call History Table 15-6 Call History Fields Field Description...
  • Page 190 Prestige 128+ ISDN Router #call This is the number of calls made to or received from that telephone number. This is the length of time of the longest telephone call. This is the length of time of the shortest telephone call. Total This is the total length of time of all the telephone calls to/from that telephone number.

  • Page 191: Chapter 16

    Prestige 128+ ISDN Router Chapter 16 Troubleshooting This chapter covers the potential problems you may run into and the possible remedies. After each problem description, some instructions are provided to help you to diagnose and to solve the problem. 16.1 Problems Starting Up the Prestige Table 16-1 Troubleshooting the Start-Up of your Prestige Problem Corrective Action...

  • Page 192: Problems With The Isdn Line

    Prestige 128+ ISDN Router 16.2 Problems With the ISDN Line Table 16-2 Troubleshooting the ISDN Line Problem Corrective Action The ISDN initialization failed. Check the error log (in menu 24.3.1), you should see a log entry This problem occurs when you for the ISDN initialization failure in the format, ‘ISDN init failed.

  • Page 193: Problems With The Ethernet Connection

    Prestige 128+ ISDN Router 16.3 Problems with the Ethernet Connection Table 16-3 Troubleshooting the Ethernet Connection Problem Corrective Action Can’t ping any station Check the Ethernet LED’s on the front panel. The LNK LED on the external LAN should be on when the Prestige has made a successful Ethernet connection.
  • Page 194 Prestige 128+ ISDN Router If the remote dial-in user is negotiating IP, verify that the IP address is supplied correctly in Menu 13. Check that either the remote dial-in user is supplying a valid IP address, or that the Prestige is assigning a valid address from the IP pool. If the remote dial-in user is negotiating IPX, verify that the IPX network number is valid from the IPX pool (if it is being used).

  • Page 195: Setup Information Worksheet

    Prestige 128+ ISDN Router Setup Information Worksheet General Setup Information System Name Protocol Routing TCP/IP ISDN Setup Information Switch Type AT&T 5ESS AT&T 5ESS Point to Point Multipoint Northern Telecom Northern Telecom NI-1 Custom AT&T 5ESS NI-1 DSS1 B-Channel Usage Switch/Switch Switch/Unused North America ISDN Switches (AT&T, Northern Telecom)
  • Page 196 Prestige 128+ ISDN Router Subaddress Outside Line Prefix PABX # (S/T bus) Incoming Number CDSA Don’t Care Matching Analog Call Routing A/B #1 A/B #2 Ignore Global Analog Call Accept Ignore Ethernet Setup Information Ethernet Interface IP Address ________.________.________.________ IP Subnet Mask ________.________.________.________ Worksheet...

  • Page 197: Acronyms And Abbreviations

    Prestige 128+ ISDN Router Acronyms and Abbreviations BAP/BACP Bandwidth Allocation Protocol/Bandwidth Allocation Control protocol Bandwidth on Demand Call Detail Record CHAP Challenge Handshake Authentication Protocol CLID Calling Line IDentification CSU/DSU Channel Service Unit/Data Service Unit Data Communications Equipment DHCP Dynamic Host Configuration Protocol Domain Name System Data Terminal Equipment IANA...
  • Page 198 Prestige 128+ ISDN Router Point to Point Protocol PSTN Public Switched Telephone Network RADIUS Remote Authentication Dial-In User Service Routing Information Protocol (IPX) Service Advertising Protocol SNAP Sub-Network Access Protocol SNMP Simple Network Management Protocol Single User Account (ISDN) Terminal Adapter TFTP Trivial File Transfer Protocol Transmission Control Protocol...
  • Page 199 Prestige 128+ ISDN Router Index 10Base2, 2-4 budget, 8-6, 15-17 10Base5. See AUI call control, 15-14 10Base-T, 2-4 call direction, 4-3 802.2, 6-1 callback, 4-4, 8-6, 8-10, 8-11 802.3, 6-1 CHAP, 4-4 A/B Adapter, xxiii CLID, 4-3, 8-5, 8-11 AUI, 2-4 community, 12-1 authentication, 4-4, 4-6, 8-5 console port, 2-4...
  • Page 200 Prestige 128+ ISDN Router encapsulation, 4-9 IPX node number, 6-1 Ethernet, 2-17 IPX Spoofing, 6-5 Ethernet II, 6-1 IPX static route, 6-10 filter, 2-18, 4-10, 8-8, 11-1 ISP, 3-14 frame type, 6-1, 6-6 L2TP, 1-1, 10-1 gateway, 5-7, 6-11, 7-6 LAC, 10-3 General Setup, 2-11 LAN, 15-3...
  • Page 201 Prestige 128+ ISDN Router Ping, 15-10 SNMP, 12-1 Point-to-Point Protocol/Multilink Protocol. socket, 6-11 See PPP/MP software update, 15-12 POTS, xxiii SUA, 1-5, 3-11, 5-4 power adapter, 2-4 subnet mask, 3-2, 3-7, 5-4, 5-7 PPP, 4-5, 4-8 switch types, xxiii, 16-2 PPP/MP, 1-5 syslog, 15-7 private, 5-4, 5-7...

  • Page 203: Index

    Prestige 128+ ISDN Router Index...

Table of Contents
