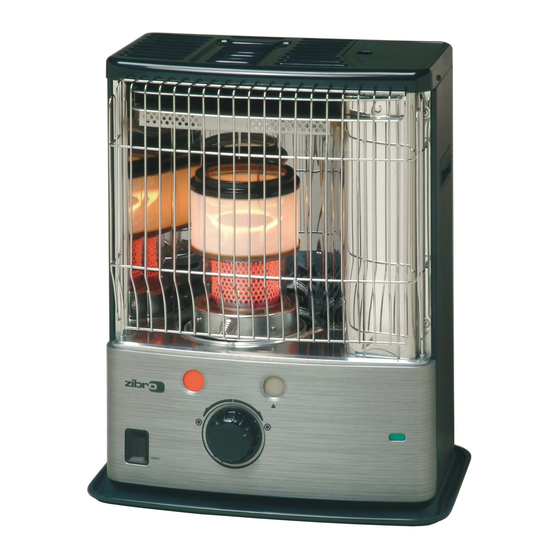

Zibro R 421 E Operating Instructions Manual

Portable heaters
Hide thumbs Also See for R 421 E:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
3
2
6
5
FIN
4
>
u
1
:
=
R 421 E
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
KÄYTTÖOHJE
OPERATING MANUAL
ISTRUZIONI D'USO
BRUKSANVISNING
GEBRUIKSAANWIJZING
INSTRUKCJI OBSŁUGI
BRUKSANVISNING
2
14
26
38
50
62
74
86
98
110
122

Advertisement

Table of Contents
loading

Related Manuals for Zibro R 421 E

Summary of Contents for Zibro R 421 E

  • Page 1 R 421 E MANUEL D'UTILISATION GEBRAUCHSANWEISUNG BRUGSANVISNING INSTRUCCIONES DE USO KÄYTTÖOHJE OPERATING MANUAL > ISTRUZIONI D’USO BRUKSANVISNING GEBRUIKSAANWIJZING INSTRUKCJI OBSŁUGI BRUKSANVISNING...
  • Page 2 Dear Sir, Madam, Congratulations on your purchase of this Zibro heater, the number one brand amongst portable heaters. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly.

  • Page 3: General Directions For Use

    • The right quality of fuel will be assured, when you Information display use Zibro Extra or Zibro Kristal for your heater. (E-Guard) • If you change to another brand and/or type of paraffin oil, you must first finish up all the remaining fuel in the heater.

  • Page 4: What You Need To Know In Advance

    Only use Class C1 paraffin fuel in accordance with BS2869 Part two, or equivalent. Your Zibro heater has been designed for use with high-quality water-free pure paraffin oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:...

  • Page 5: Installing The Heater

    MANUAL INSTALLING THE HEATER Carefully remove your Zibro heater from the box and check the contents. In addition to the heater you also need to have: a manual fuel pump a transportation cap these directions for use Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

  • Page 6: Igniting The Heater

    Take the manual fuel pump and insert the smooth, most rigid tube into the jerrycan. Make sure that it is in a higher position than the removable tank (Fig. H). Insert the ribbed hose into the opening of the removable tank. Lock the valve on top of the pump (turn clockwise).

  • Page 7: Switching Off The Heater

    If the heater has been used only a few times and the wick adjustment knob is not locked, first turn the wick adjustment knob (Fig. S) completely left, before putting the wick in the highest position for ignition (Section C). After having ignited the heater, always check whether the combustion chamber is level, by sliding it slightly to the left and the right by its handle...

  • Page 8: Malfunction, Causes And Solutions

    Otherwise smoke or soot may be caused. MALFUNCTION, CAUSES AND SOLUTIONS If any malfunctioning cannot be solved from the directions below, please contact your Zibro dealer. THE HEATER DOES NOT IGNITE The batteries are not positioned correctly in the holder. Check (Fig. F).

  • Page 9: Maintenance

    Refer to Section B. The lower reservoir is contaminated by water. Contact your dealer. The wick has hardened on the upper side. Burn the heater until all fuel is used (Section H). Use the right fuel. You are using fuel which is past its ‘use by’ date. Start every heating season with fresh fuel.

  • Page 10: Specifications

    STORAGE (END OF THE HEATING SEASON) We recommend that you burn up all the fuel in the fuel tank at the end of the heating fuel filter season and store the heater properly. Follow the next procedure: Ignite the heater outside the living room and let it burn until all fuel is used. Let the heater cool down.

  • Page 11: Warranty Provisions

    WARRANTY PROVISIONS Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty: We expressly dismiss all other claims for damages, including consequential damages.

  • Page 12: Replacement Of The Wick

    REPLACEMENT OF THE WICK ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK. Open the lid and remove the removable tank. Remove the batteries from the battery holder. Open the front grill. Remove the combustion chamber from the heater.
  • Page 13 Install the wick to the wick sleeve according to the allo- 1 1 2 2 a a 1 1 2 2 b b wed direction engraved on the wick sleeve. Install the wick sleeve (with wick) to the primary air tube.
  • Page 16 +44 1606 837787 tel: +43 7434 44867 fax: +44 1606 837757 fax: +43 7434 44868 email: sales@scottmail.co.uk email: pvgaustria@zibro.com > ITALIA e BELGIË PVG Italy SRL PVG Belgium NV/SA Via Niccolò Copernico 5 Industrielaan 55 50051 CASTELFIORENTINO (FI) 2900 SCHOTEN tel:...
