- Page 1 ® HTUPS 2700 Home Theater Uninterruptible Power Supply PowerCenter ™ Owner’s Manual...
-
Page 3: Table Of Contents
A Note from The Head Monster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Monster Clean Power Stage 2 . -
Page 5: Important Safety Instructions
IMPORTanT SafeTY InSTRUCTIOnS This manual contains important instructions for the HTUPS that should be followed during installation and maintenance of the HTUPS. Please read and observe the following safety points at all times . CaUTIOn: When the On/Off switch is on, the Battery Power supplied outlets are powered by the battery, even when the unit is not plugged in . - Page 6 Do not attempt to defeat the grounding feature by using a 3-to-2 prong adapter . The Monster HTUPS requires a properly grounded outlet for safety and to protect connected equipment . If you’re not sure if your home’s electrical wiring is properly grounded, have it checked by a qualified electrician .
- Page 7 WaRnInG – Malfunction and Servicing If, for any reason, this HTUPS is not operating properly, unplug the unit and consult the Warranty Information sheet for important details, or contact your original retailer for repair and service information . WaRnInG – Power Cord Safety a.
-
Page 8: A Note From The Head Monster
THe HeaD MOnSTeR Dear Enthusiast, THANK YOU for purchasing the Monster Power Home Theater Uninterruptible Power Supply 2700 . The HTUPS 2700 is designed to maintain power to critical home theater components during power outages for up to 1 hour* with an internal backup battery . This lets your DVR record scheduled shows, preserves home theater settings, prevents data corruption on media servers, and prevents costly projector bulb damage . - Page 9 . Monster PowerCenters featuring Clean Power each have a designated Clean Power stage from 1 to 5 . The higher the Clean Power stage number, the more advanced the filters are that reject electronic noise on your AC power line .
-
Page 10: Technology

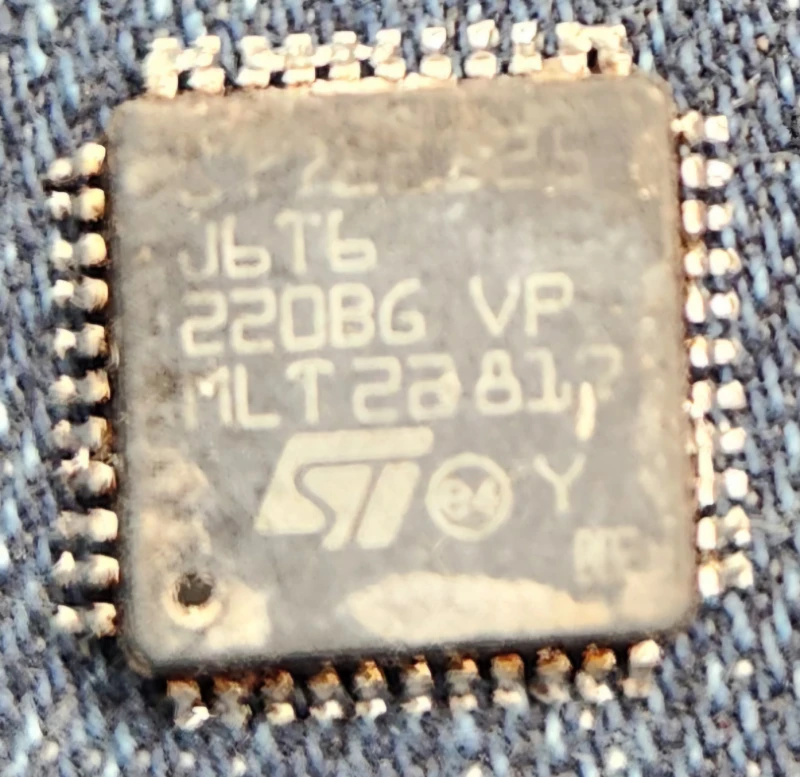

PaTenTeD MOnSTeR T2 SURGe PROTeCTIOn ™ T2 is microprocessor-controlled circuit that works together with the PowerCenter’s surge-absorbing MOVs (Metal Oxide Varistors) and thermal fuses . T2 actively monitors the line, neutral, and ground power lines for electrical surges, dips, and spikes and automatically disconnects the PowerCenter and your AV equipment from AC power when it detects a dangerous sustained power dip or surge (continuous voltage below 80Vrms or above 135Vrms) . -
Page 11: Monster Clean Power ™ Stage 2
THe MInDS beHInD MOnSTeR POWeR Richard Marsh – Richard developed noel lee – Noel Lee, The Head Monster, Monster’s patented Clean Power is best known for popularizing the ™ circuitry, and is also responsible for concept of high performance audio cable... -
Page 12: Monster Htups 2700 Features
MOnSTeR HTUPS 2700 feaTUReS fROnT VIeW 14 15 ReaR VIeW... - Page 13 22. Satellite/Antenna Surge Suppression * You can extend your HTUPS battery runtime up to 4 hours** with the addition of the Monster Home Theater Extended Battery Supply HTBX1000 . See your Monster retailer for details or go to monstercable .com .
-
Page 14: Hook-Up And Operation Guide
The HTUPS 2700 must be plugged into a properly grounded, three-prong AC power outlet . In addition, Monster recommends charging the batteries for at least four hours prior to using HTUPS 2700 . To charge or recharge the batteries, simply plug your HTUPS 2700 into an AC outlet . -
Page 15: Tv/Monitor And Video Accessory Connections
HOOk-UP GUIDe TV/Monitor, Video accessory Connections as follows: AC Outlets Phone IEC Male Receptacle External Battery DVR/Cable/SAT Analog Audio Ethernet Cable TV with Satellite High Current Connection* UPS Powered PLC Compatible ground isolation 2 .8 GHz * External battery supply HTBX1000 sold seperately... -
Page 16: Rack Mount Installation
RaCk MOUnTInG InSTRUCTIOnS Your HTUPS 2700 comes with front and rear rack mount ears for secure installation in AV rack systems . You will need a hex wrench (not included) to tighten the included bolts . front ear Installation Make sure the ears are correctly oriented as shown in the diagram at right . -
Page 17: Battery Installation
baTTeRY COnneCTIOn anD RePlaCeMenT InSTRUCTIOnS For safety reasons, the HTUPS 2700 is shipped with the internal battery disconnected . The HTUPS 2700 will not operate until the internal battery is first connected . Follow these steps to connect or disconnect the battery . Step One: Use a Phillips head screwdriver to remove the screws on the bottom of the HTUPS, and open... - Page 18 Step Three: Replace the battery into the battery compartment, as shown below . Make sure the battery is rotated correctly to ensure proper fit . Step four: Re-insert screws in the cover and snug down with a screwdriver . Do not over-tighten screws or the screw threads may strip .
- Page 19 HTUPS STORaGe InSTRUCTIOnS Before storing the HTUPS for an extended period of time, follow these maintenance recommendations to ensure proper operation after long-term storage . Charge the HTUPS for at least 4 hours before initial storage . Store the HTUPS covered and upright in a cool, dry location . During storage, recharge the battery in accordance with the following: Storage Temperature Recharge Frequency...
- Page 20 leD STaTUS lIGHTS leD function Visual Status CLEAN POWER ON 1 . Blue light flashes 8 seconds when powered . 2 . Blue light is on when turn on . PROTECTION ON Green light - On UNSWITCHED ON Green light - On GROUND ON Green light - On SWITCHED ON...
- Page 21 leD STaTUS lIGHTS COn’T leD function Visual Status BATTERY RUN TIME BAR 0% LED 25% LED 50% LED 75% LED 100% LED 100% Remaining Green On 75% Remaining Green On 50% Remaining Green On 25% Remaining Yellow On 0% Remaining Red On BATTERY CHECK Red light - Flash...
-
Page 22: Troubleshooting
TROUbleSHOOTInG Symptom Possible Cause Remedy Component is The component is plugged into a switched outlet • Turn the HTUPS On. not receiving power . and the HTUPS has not been turned On . • Or, plug the component into an Unswitched outlet . The HTUPS is plugged into a Switched outlet, •... - Page 23 TROUbleSHOOTInG COn’T Symptom Possible Cause Remedy Video picture The incoming video signal • Ensure that the cable TV line is has rolling bars is not properly grounded . connected to the cable coax connection, or ghosting . not the Satellite coax connection . The ground loop isolation on the cable connection may interfere with satellite TV signals .
- Page 24 • Verify that the internal battery connection is secure. (See Instructions on page 11) • Recharge HTUPS 2700’s battery for at least 4 hours. (Contact your Monster Power dealer if battery does not charge .) HTUPS 2700 • Please see warranty information.
- Page 25 • Recharge HTUPS 2700’s batteries for at least 4 hours . • Add additional backup power capacity with the Monster HTBX 1000 battery extension module . HTUPS 2700 is defective or home • Please see warranty information. theatre system total draw is higher •...
-
Page 26: Specifications
SPeCIfICaTIOnS Category Requirement Value Without External Battery With External Battery Input Nominal Input Voltage 120Vac Input Frequency 60Hz Input Connections IEC 60320 C14 Cord Length 6’ (1 .8m) Input Voltage Range 80V~135V Maximum Input Current Transfer Time 5~8ms Output Output Power Capacity 360W/680VA Max . - Page 27 SPeCIfICaTIOnS COn’T Category Requirement Value Without External Battery With External Battery battery & Runtime Battery Type Sealed Lead Acid Battery Typical Recharge Time 4 hr . 16 hr . Typical Backup Time @360W 4 min . 12 min . @300W 6 min .
- Page 28 SPeCIfICaTIOnS COn’T Category Requirement Value Without External Battery With External Battery Physical Maximum Height 44mm (1 .73”) w/o feet 55mm (2 .17”) w/ feet Maximum Width 434mm (17 .08”) 482 .6mm (19”) w/ rack mounted bracket Maximum Depth 453 .4mm (17 .84”) environmental Operating Environment 0 - 40°C...
- Page 29 WaRRanTY fOR COnSUMeRS Monster, LLC, 7251 West Lake Mead Blvd, Las Vegas, NV, USA (“Monster”) extends to You this Limited Warranty . Statutory or common law may provide You with additional rights or remedies, which shall not be affected by this Limited Warranty .
- Page 30 (d) accident (other than a malfunction that would otherwise qualify as a Product Defect); (e) maintenance or service of the Product by anyone other than a Monster employee; (f) exposure of the Product to heat, bright light, sun, liquids, sand or other contaminants;...
- Page 31 Product, then Monster will provide You with one of the following remedies: Monster will (1) repair or, at Monster’s sole discretion, replace the Product, or (2) refund to You the purchase price You paid to the Authorized Dealer for the affected Product if repair or replacement is not commercially practicable or cannot be timely made .
-
Page 32: General Provisions
Monster will provide You with one of the following remedies provided that Monster may decide at its sole discretion which of the three remedies it provides: Monster will (1) replace the damaged Connected Equipment; (2) pay to repair the damaged Connected Equipment; or (3) pay You the FMV of the Connected Equipment, provided that such payments shall not exceed (i) the Maximum Coverage Amount for the Product, or (ii) the actual damage having arisen from power surges due to a Product Defect . - Page 33 SPeCIfICaTIOnS Table Product Warranty Period Warranty Period Maximum Warranty Period for Connected Model No . for Products for Battery Coverage Amount Equipment Damage HTUPS2700 5 Years 2 Years US$500,000 5 Years...
- Page 34 TIMInG. If You bring a Formal Warranty Claim and fully comply with all terms and conditions of this Limited Warranty, Monster will use its best efforts to provide You with a remedy within thirty (30) days after receipt of Your Formal Warranty Claim (if You reside in the United States - forty-five (45) days if You reside elsewhere), unless obstacles outside Monster’s...
- Page 36 Designed in the USA and manufactured for Monster to its quality specifications. Made in China. The Monster Power HTUPS 2700 is protected under U.S. Patent No. US 5,589,718; 6,473,510 B1; 6,683,770 B1; 6,614,636 B1; 6,829,129 B2; 7,262,945 B2; 5,589,718; 7,262,945 B2; TAIWAN NI-130119; N1-171813; N1-165023;...
