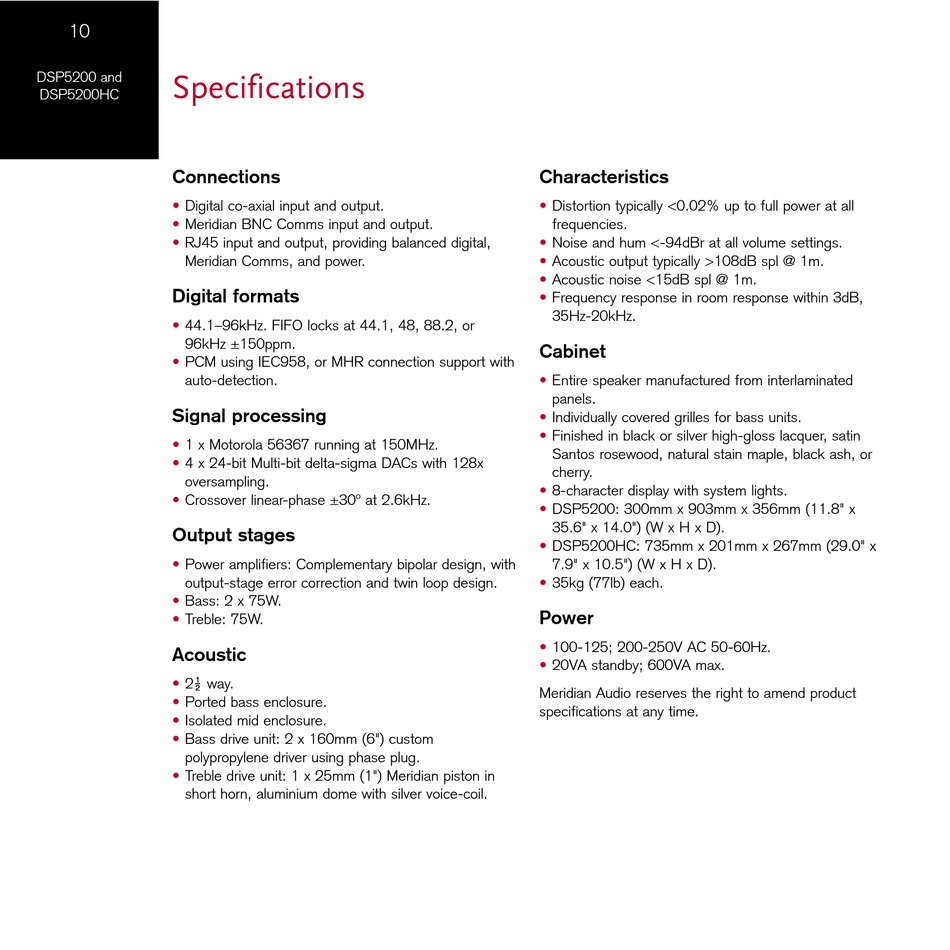

Specifications - Meridian DSP5200 User Manual

10
DSP5200 and

Specifications

DSP5200HC
Connections
• Digital co-axial input and output.
• Meridian BNC Comms input and output.
• RJ45 input and output, providing balanced digital,
Meridian Comms, and power.
Digital formats
• 44.1–96kHz. FIFO locks at 44.1, 48, 88.2, or
96kHz ±150ppm.
• PCM using IEC958, or MHR connection support with
auto-detection.
Signal processing
• 1 x Motorola 56367 running at 150MHz.
• 4 x 24-bit Multi-bit delta-sigma DACs with 128x
oversampling.
• Crossover linear-phase ±30º at 2.6kHz.
Output stages
• Power amplifiers: Complementary bipolar design, with
output-stage error correction and twin loop design.
• Bass: 2 x 75W.
• Treble: 75W.
Acoustic
• 2   way.
• Ported bass enclosure.
• Isolated mid enclosure.
• Bass drive unit: 2 x 160mm (6") custom
polypropylene driver using phase plug.
• Treble drive unit: 1 x 25mm (1") Meridian piston in
short horn, aluminium dome with silver voice-coil.
Characteristics
• Distortion typically <0.02% up to full power at all
frequencies.
• Noise and hum <-94dBr at all volume settings.
• Acoustic output typically >108dB spl @ 1m.
• Acoustic noise <15dB spl @ 1m.
• Frequency response in room response within 3dB,
35Hz-20kHz.
Cabinet
• Entire speaker manufactured from interlaminated
panels.
• Individually covered grilles for bass units.
• Finished in black or silver high-gloss lacquer, satin
Santos rosewood, natural stain maple, black ash, or
cherry.
• 8-character display with system lights.
• DSP5200: 300mm x 903mm x 356mm (11.8" x
35.6" x 14.0") (W x H x D).
• DSP5200HC: 735mm x 201mm x 267mm (29.0" x
7.9" x 10.5") (W x H x D).
• 35kg (77lb) each.
Power
• 100-125; 200-250V AC 50-60Hz.
• 20VA standby; 600VA max.
