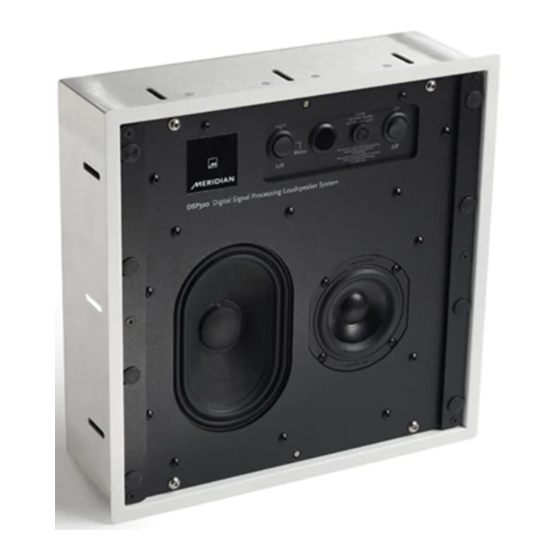

- Page 1 DSP320 DSP Loudspeaker User Guide...
-
Page 2: Important Safety Instructions
Copyright © 2014-2015 Meridian Audio Ltd. connection (the third grounding pin). Visit us on the Web: The DSP320 must be connected to an earthed AC supply socket outlet. www.meridian-audio.com An all pole AC supply switch with a contact separation of at least 3mm... -
Page 3: Installation
DSP320 User Guide Installation These instructions assume that a Meridian rough-in box type RF300 has already been mounted in the ceiling or wall ready to accept the loudspeaker. If necessary, refer to the RF300 Rough-in Box Installation Instructions as appropriate. - Page 4 DSP320 User Guide To fit the loudspeaker with the trim frame Trim Frame (Frame is clamped in place by loudspeaker cabinet) Clamping screws (M5 x 10) Holding the loudspeaker carefully: • Drop the trim frame onto the back of the loudspeaker.
- Page 5 DSP320 User Guide To fit the loudspeaker without the trim frame Clamping screws (M5 x 10) Holding the loudspeaker carefully: • Plug in the RJ45 cable(s) and AC supply. • Slide the loudspeaker into position. • Fix with M5 x 10 button-head screws (4 pieces).
- Page 6 DSP320 User Guide To fit the scrim and grille Magnet positions Scrim Grille • Lay the scrim into the back of the grille. • Carefully locate one edge of the grille. • Lift the grille into position. Magnets will grab the grille and hold it in position.
-
Page 7: Front And Back Panel
IR is on. To configure the IR receiver The loudspeakers are switched on or into standby as appropriate via the SpeakerLink connections by the Meridian system they Hold down one of the following keys on an MSR remote (not are connected to. - Page 8 • Make sure the Channel selector is set to the Left position on The DSP320 loudspeakers are ideal for a compact Audio Core the front of the left loudspeaker and to the Right position on 200 based home entertainment system.
- Page 9 Digital Theatre • Make sure the Channel selector on each loudspeaker is set DSP320 loudspeakers are ideal as the rear loudspeakers in to the Left, Right, or Centre position as appropriate. a Meridian Digital Theatre, in conjunction with DSP520 (or DSP640) loudspeakers as the front main and centre speakers.
- Page 10 DSP320 User Guide To create a multi-room installation Meridian Media Source 200 Router SPEAKERLINK NETWORK Internet SpeakerLink lead Distributor 3 - 1/3 DSP320 – Wall or ceiling DSP320 – Wall or ceiling MERIDIAN SPEAKERLINK SPEAKERLINK MERIDIAN RS232 DIGITAL SPEAKERLINK SPEAKERLINK...
- Page 11 DSP320 User Guide The DSP320 is an ideal loudspeaker for use in a multi- room system. The signal to each room can be provided by a Distributor 3, with independent control over the volume of each pair of speakers via the control system.
- Page 12 DSP320 User Guide...
