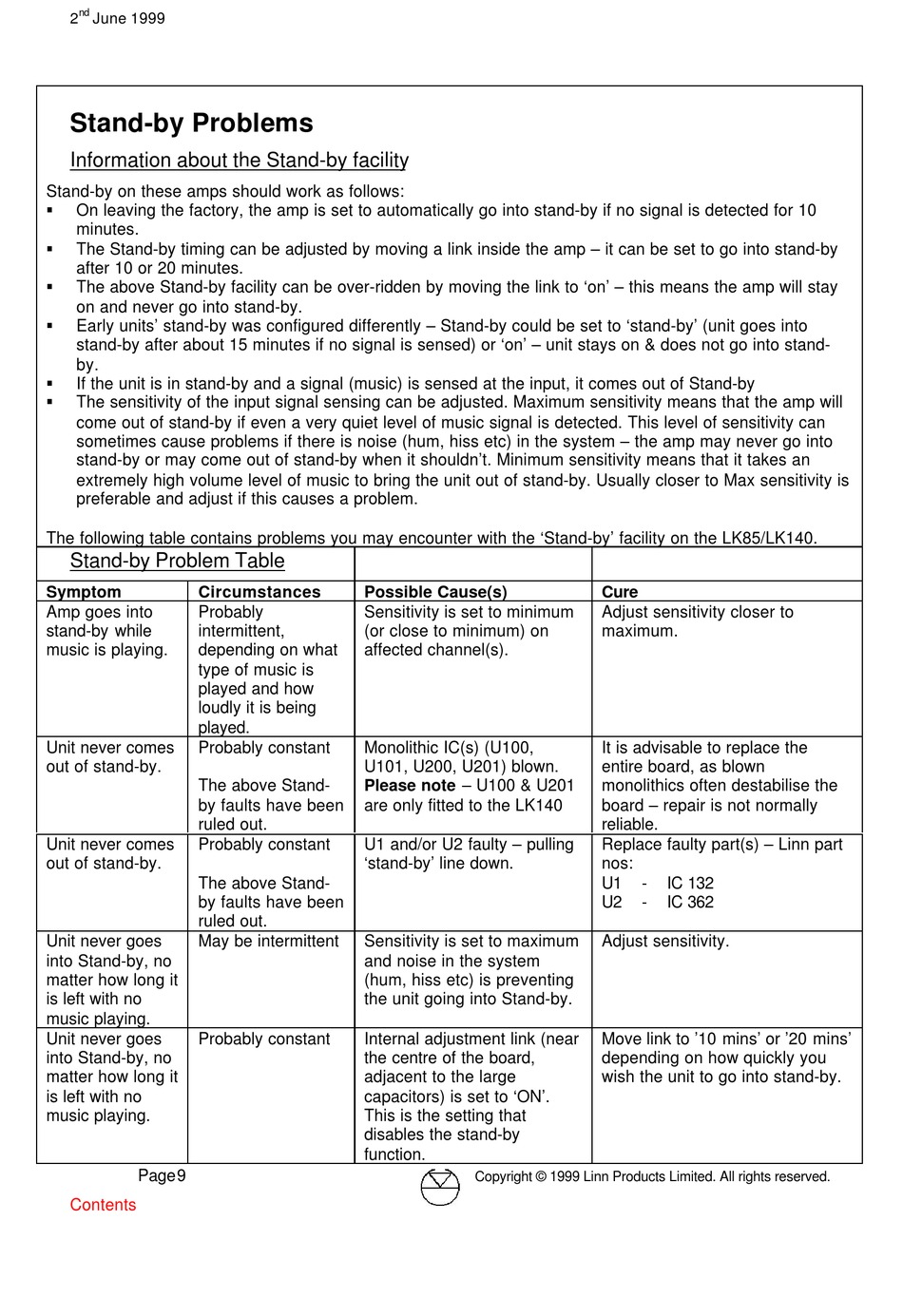

Linn LK85 Service Manual page 9

nd
2 June 1999
Stand-by Problems
Information about the Stand-by facility
Stand-by on these amps should work as follows:
§
On leaving the factory, the amp is set to automatically go into stand-by if no signal is detected for 10
minutes.
§
The Stand-by timing can be adjusted by moving a link inside the amp – it can be set to go into stand-by
after 10 or 20 minutes.
§
The above Stand-by facility can be over-ridden by moving the link to 'on' – this means the amp will stay
on and never go into stand-by.
§
Early units' stand-by was configured differently – Stand-by could be set to 'stand-by' (unit goes into
stand-by after about 15 minutes if no signal is sensed) or 'on' – unit stays on & does not go into stand-
by.
§
If the unit is in stand-by and a signal (music) is sensed at the input, it comes out of Stand-by
§
The sensitivity of the input signal sensing can be adjusted. Maximum sensitivity means that the amp will
come out of stand-by if even a very quiet level of music signal is detected. This level of sensitivity can
sometimes cause problems if there is noise (hum, hiss etc) in the system – the amp may never go into
stand-by or may come out of stand-by when it shouldn't. Minimum sensitivity means that it takes an
extremely high volume level of music to bring the unit out of stand-by. Usually closer to Max sensitivity is
preferable and adjust if this causes a problem.
The following table contains problems you may encounter with the 'Stand-by' facility on the LK85/LK140.
Stand-by Problem Table
Symptom Circumstances
Amp goes into Probably
stand-by while intermittent,
music is playing. depending on what
type of music is
played and how
loudly it is being
played.
Unit never comes Probably constant
out of stand-by.
The above Stand-
by faults have been
ruled out.
Unit never comes Probably constant
out of stand-by.
The above Stand-
by faults have been
ruled out.
Unit never goes May be intermittent
into Stand-by, no
matter how long it
is left with no
music playing.
Unit never goes Probably constant
into Stand-by, no
matter how long it
is left with no
music playing.
Page9
Contents
Possible Cause(s)
Sensitivity is set to minimum
(or close to minimum) on
affected channel(s).
Monolithic IC(s) (U100,
U101, U200, U201) blown.
Please note – U100 & U201
are only fitted to the LK140
U1 and/or U2 faulty – pulling
'stand-by' line down.
Sensitivity is set to maximum
and noise in the system
(hum, hiss etc) is preventing
the unit going into Stand-by.
Internal adjustment link (near
the centre of the board,
adjacent to the large
capacitors) is set to 'ON'.
This is the setting that
disables the stand-by
function.
Copyright © 1999 Linn Products Limited. All rights reserved.
Cure
Adjust sensitivity closer to
maximum.
It is advisable to replace the
entire board, as blown
monolithics often destabilise the
board – repair is not normally
reliable.
Replace faulty part(s) – Linn part
nos:
U1 - IC 132
U2 - IC 362
Adjust sensitivity.
Move link to '10 mins' or '20 mins'
depending on how quickly you
wish the unit to go into stand-by.
