Summary of Contents for Linn AKURATE 2200

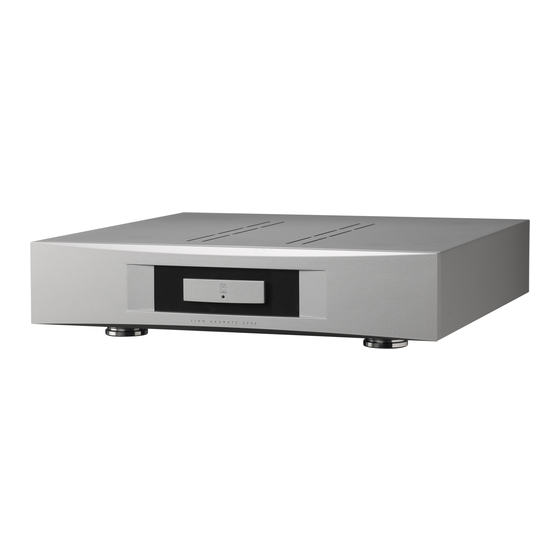

- Page 1 AKURATE 2200 3200 4200 • • POWER AMPLIFIERS OWNER S MANUAL ENGLISH...
-
Page 3: Important Safety Instructions
M M A A I I N N S S P P L L U U G G S S This apparatus is supplied with a non-rewireable mains plug for the intended country. Replacement mains leads can be obtained from your Linn retailer. Should you need to change the plug please dispose of it carefully. A plug with bared conductors is dangerous if engaged in a live socket. -
Page 4: Fuse Replacement
Mains plug replacement Should your mains plug need replacing and you are competent to do this proceed as follows. If you are in doubt contact your Linn retailer or a competent electrician. a) Disconnect the plug from the mains supply. -
Page 5: Ce Declaration Of Conformity
CE Declaration of Conformity Linn Products Ltd declare that this product is in conformance with the Low Voltage Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended by 92/31/EEC and 93/68/EEC. The conformity of the designated product with the provisions of Directive number... -
Page 6: Copyright And Acknowledgements
C C H H A A K K R R A A , , A A K K T T I I V V , and K K L L I I M M A A X X are trade... -
Page 7: Table Of Contents
Connecting Connecting to the mains supply Back panel connectors and switches Back panels (Phono) Back panels (Balanced) Audio connections Speaker terminals Operation General Signal sensing Protection Technical Specifications Guarantee and Service Channel Configuration Table AKURATE 2200 3200 4200 • •... -
Page 9: Introduction
Introduction Over thirty years ago Linn was born out of a simple truth: the more accurately a system reproduces sound, the greater the impact it will have on the listener. The AKURATE range of power amplifiers have been designed to offer true flexibility when building or upgrading a stereo or multi-channel system. -
Page 10: Features
Similarly, if the amplifier's temperature rises above its safe operating limit, the affected channels will cease operation until the temperature drops to a safe level and will then automatically resume. * The term 'AKTIV' refers to the proprietary Linn active modules and loudspeaker configuration. -
Page 11: Installation
Installation Important: It is strongly recommended that your AKURATE amplifier is installed and configured by an authorised Linn retailer. Unpacking Each AKURATE power amplifier is supplied with the following accessories: • mains lead • interconnect cables - cable type will suit amplifier's input connection (balanced or phono), one cable per amplifier channel (e.g. -
Page 12: Connecting
I I m m p p o o r r t t a a n n t t : Only for use when a Linn AKTIV module is fitted to the channel. If no AKTIV module is fitted, always leave set to 3 (default gain setting). -
Page 13: Back Panels (Phono)
The connections and adjustments indicated by numbers 1 to 4 are repeated for each channel. See Back panel connectors and switches (page 4) for further details. 2200 3200 4200 Left side as above - additional channels shown below Left side as above - additional channels shown below AKURATE 2200 3200 4200 • •... -
Page 14: Back Panels (Balanced)
The connections and adjustments indicated by numbers 1 to 3 are repeated for each channel. See Back panel connectors and switches (page 4) for further details. 2200B 3200B 4200B Left side as above - additional channels shown below Left side as above - additional channels shown below AKURATE 2200 3200 4200 • •... -
Page 15: Audio Connections
Optional - can be used to relay the audio in signal to AUDIO OUT AUDIO IN another power amplifier channel or other audio device (eg. subwoofer) Pin 2 - Hot Pin 1 - Shield Pin 3 - Cold AKURATE 2200 3200 4200 • •... -
Page 16: Speaker Terminals
(do not attempt to completely remove this outer section), inserting the cable or terminal and re-tightening the binding post to clamp it in place. Ensure that all the binding posts are tight. AKURATE 2200 3200 4200 • •... -
Page 17: Operation
Try switching the amplifier off at the mains for 30 minutes or so and try again. If it remains non-operational, consult your retailer who can examine your system and determine the source of the problem. AKURATE 2200 3200 4200 •... -
Page 18: Technical Specifications
Load tolerance Unconditionally stable into all loudspeaker loads Frequency response 1.4 Hz to 41 kHz Peak output voltage 41 V * Default setting AKURATE 2200 3200 4200 • • 3200 Three-channel power amplifier W 381 mm, D 355 mm, H 80 mm W 15", D 14 ", H 3 "... -
Page 19: Guarantee And Service
Linn. A warranty registration card is included with the product and should be returned to Linn as soon as possible. Alternatively, you can register your warranty online at www.linn.co.uk. -
Page 20: Channel Configuration Table
A A K K T T I I V V m m o o d d u u l l e e s s If your AKURATE amplifier is fitted with Linn AKTIV modules, labels may be provided with the modules. Stick the label for each AKTIV... - Page 22 Pack 1322...
