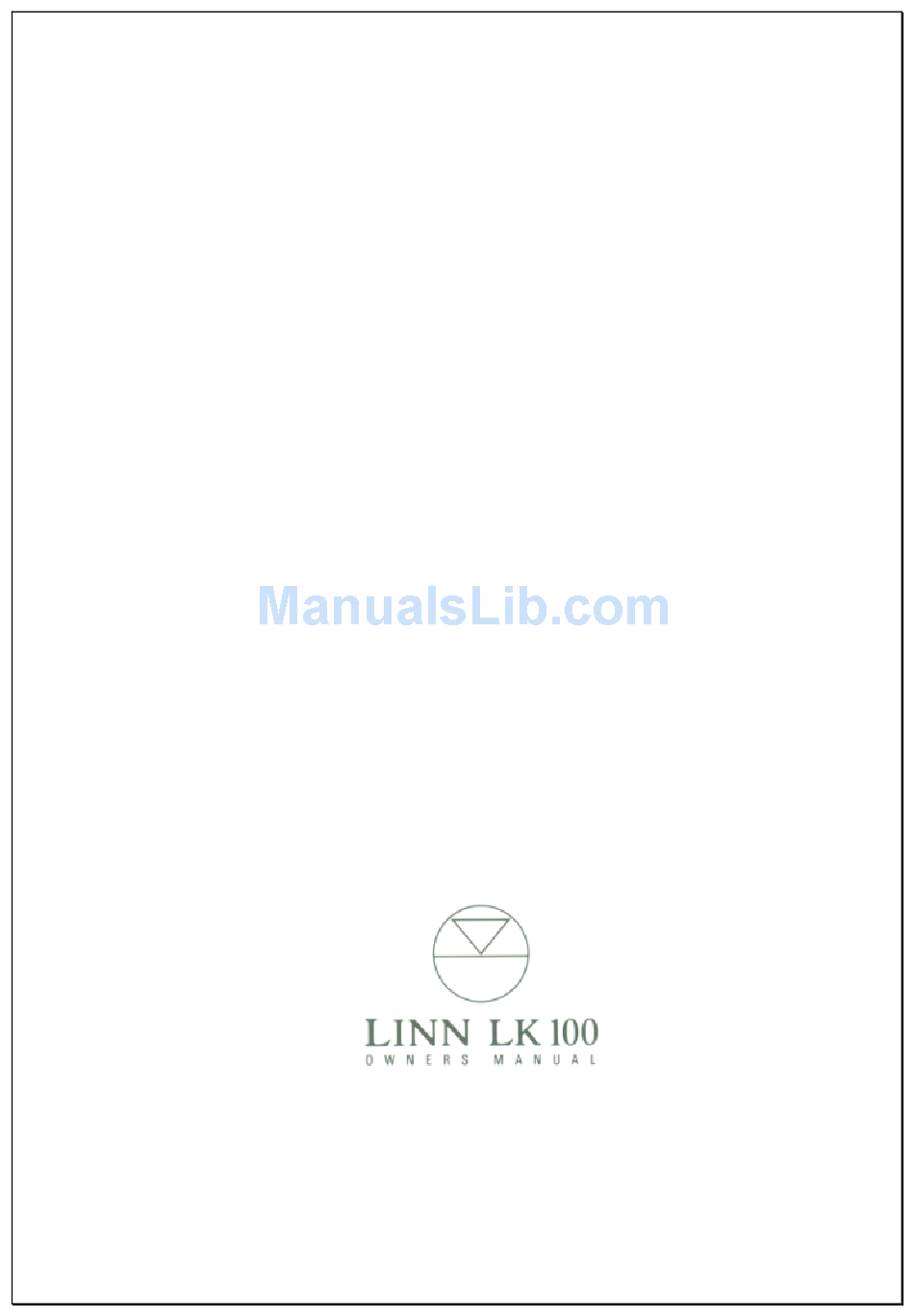

Linn LK 100 Owner's Manual
Hide thumbs Also See for LK 100:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linn LK 100

  • Page 2 The addition of any Linn component will improve the sound quality of your system. Linn has a policy of continuously improving, its equipment allowing customers to retro-fit most product upgrades.
  • Page 3 The eight speaker sockets of the LK100 facilitate bi or tri wiring. It is ideally suited for use with the Linn Kairn preamplifier, and makes the performance of active systems accessible to more customers than ever before.
  • Page 4 INSTALLATION Unpack the LK100 and retain the packing for future transportation. Ensure that the amplifier is earthed and that adequate ventilation is provided. Position the amplifier at least 15cm (6") from the turntable to avoid hum. CONTENTS LK100 Power Amplifier Owner Manual Mains Lead Spare Fuses...
  • Page 5: Input Connections

    INPUT CONNECTIONS WARNING The pre-amplifier and the power amplifier must be switched off before connecting or disconnecting any of the plugs on the rear panel. For all input connections, ensure that the left channel plug from the source is connected to the left channel socket on the pre-amplifier, and the right channel plug to the right channel socket on the pre- amplifier.
  • Page 6: Output Connections

    Please note that speaker cable is directional and will perform better when orientated in the proper direction. linn speaker cable is imprinted with a circular linn logo followed by the model number of the cable. When the cable is properly orientated, the circular logo will point towards the loudspeakers.
  • Page 7: General System Installation

    LOUDSPEAKERS Loudspeakers should be positioned correctly. They should be mounted on rigid stands and not subject to any rocking movement. All Linn speakers except NEXUS and HELIX are designed to be placed very close to the wall. CLEAN CONTACTS lt is important that the electrical contacts in a hi-fi system are kept mechanically sound and clean.
  • Page 8: Maintenance

    FUSE PROTECTION A fuse is fitted to the power input socket on the rear of the LK100. The fuse holder also contains one spare fuse. The Linn LK100 power amplifier is designed for a long life and any servicing should be carried out by an authorised dealer.
  • Page 9: Guarantee And Service

    In addition to any statutory rights the customer may have, we undertake to replace any parts that have failed due to faulty manufacture. To help us please ask your retailer about the Linn warranty scheme in operation in your country.
  • Page 10: Specifications

    SPECIFICATIONS DIMENSIONS Width - 320mm Depth - 326mm Height - 80mm Weight - 7kg INPUTS Sensitivities for 20 V rms output (50 Watts per 8 ohms) at 1 Hz Input: 741mV rms / 4.7Kohms OUTPUTS Maximum power: 50 Watts/8 ohms per channel 80 Watts/4 ohms per channel MAINS SUPPLY/FUSE 115V and 100V...
