Door Lock Diagrams

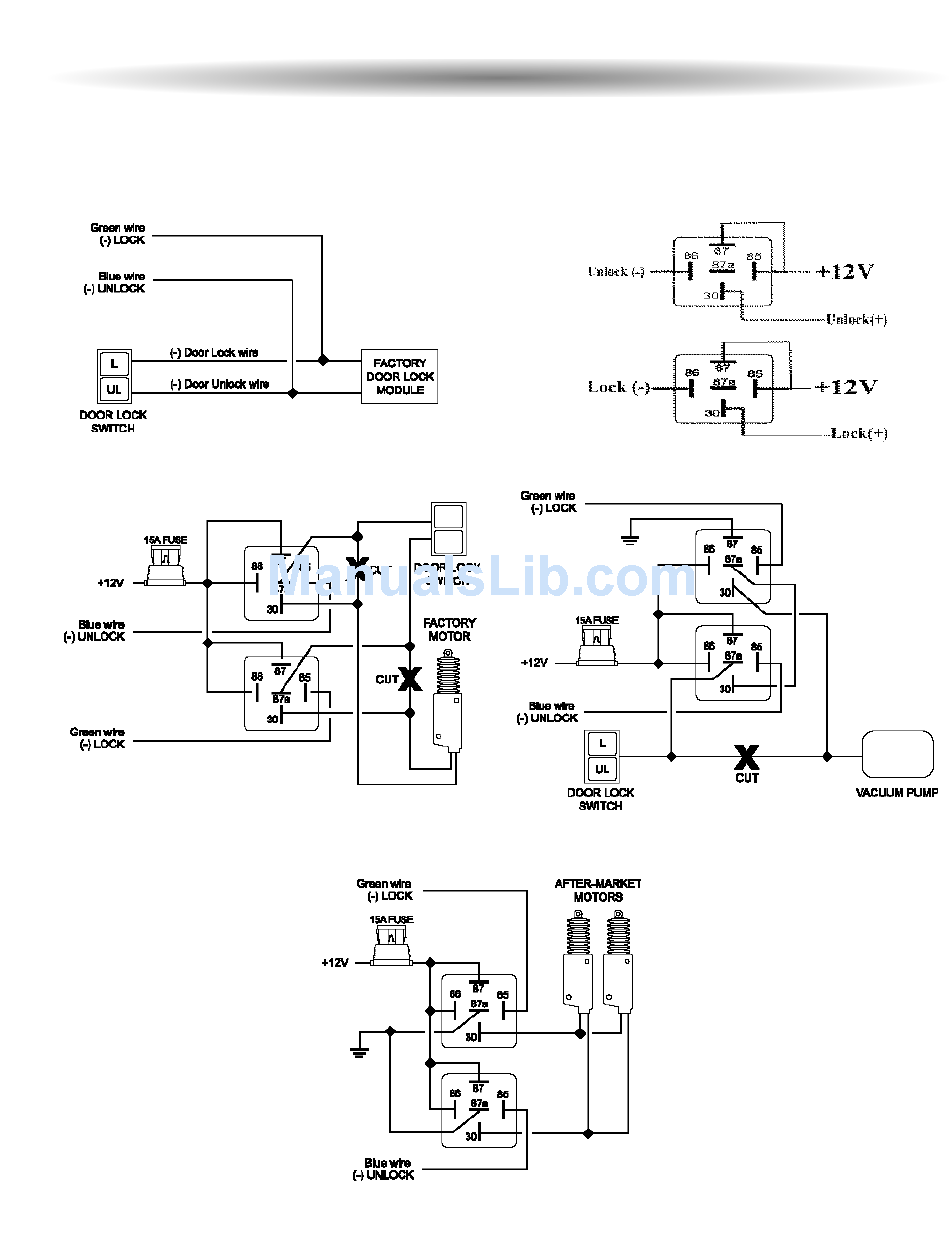

Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock
systems (separately unlocks driver and passenger doors) see following pages.
Negative Trigger
Positive Trigger
blue
green
Reverse Polarity
Vacuum
UL
L
Adding Actuators
Page 38 - Galaxy
