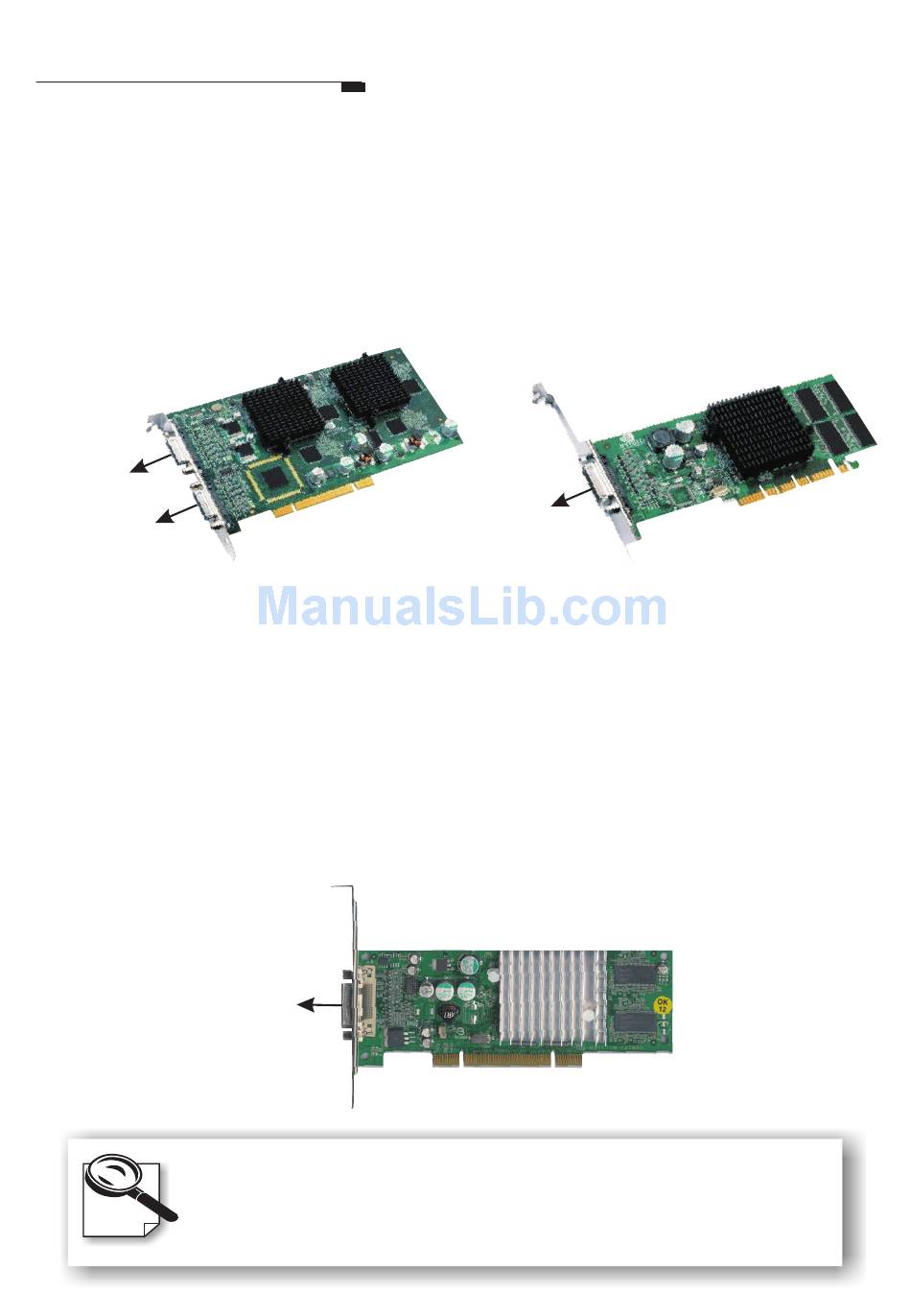

Board Layout
Quadro 200/280 NVS and Quadro 400 NVS connectors
The Quadro 200/280 NVS has a single LFH 60-pin connector. The Quadro 400
NVS has two LFH 60 pin connectors. Each LFH connector can support two
monitors, using the supplied splitter cable. Your card is shipped with one DVI-
I+DVI-I splitter cable per LFH port and two DVI-I to VGA adapters per splitter
cable.
LFH 60-pin
connector
Quadro NVS 280 PCI connectors
The Quadro NVS 280 PCI has a single DMS 59-pin connector. Each DMS
connector can support two monitors, using the supplied splitter cable. Your card is
shipped with one DVI-I+DVI-I splitter cable and two DVI-I to VGA adapters per
splitter cable.
DMS 59-pin
connector
Note:
The actual board appearance may differ from the diagram.
Quadro 400 NVS (PCI)
Quadro NVS 280 PCI
LFH 60-pin
connector
