Leadtek Quadro Series Manual page 3

Board Layout

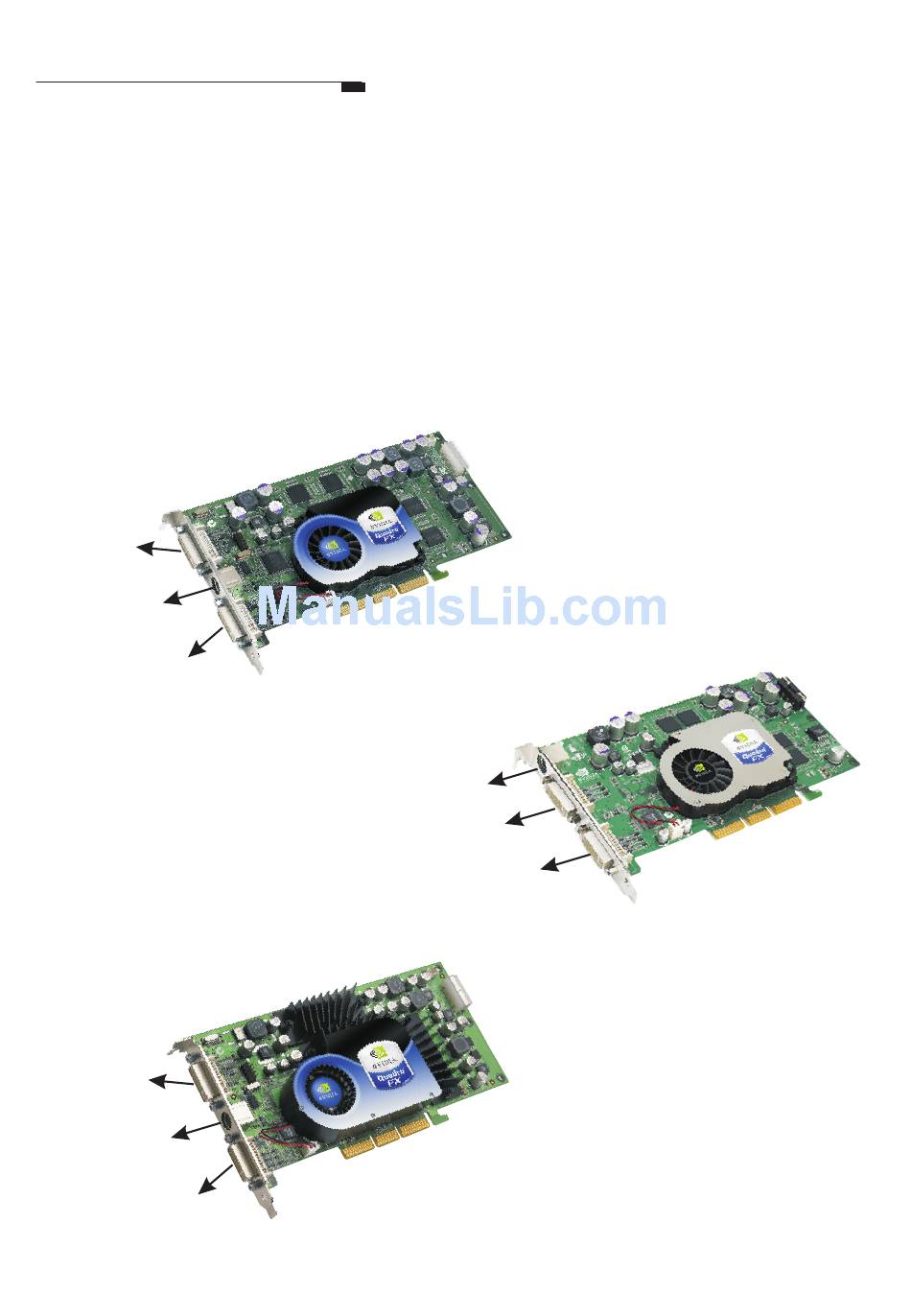

Quadro FX1000//FX1100/FX2000 connectors
The Quadro FX1000/1100/2000 has dual DVI-I connectors. These cards support:
Single VGA output (using a DVI-I to VGA adapter)
Dual VGA output (using two DVI-I to VGA adapters)
VGA+DVI-I output (using a DVI-I to VGA adapter)
Single DVI-I output
Dual DVI-I output
DVI-I
Connector
Stereo 3D
Connector
DVI-I
Connector
DVI-I
Connector
Stereo 3D
Connector
DVI-I
Connector
Quadro FX1000
Stereo 3D
Connector
Connector
Quadro FX2000
Leadtek Quadro Series General Guide
DVI-I
DVI-I
Connector
(Continued on next page)
Quadro FX1100
