Leadtek Quadro Series Manual page 5

Board Layout

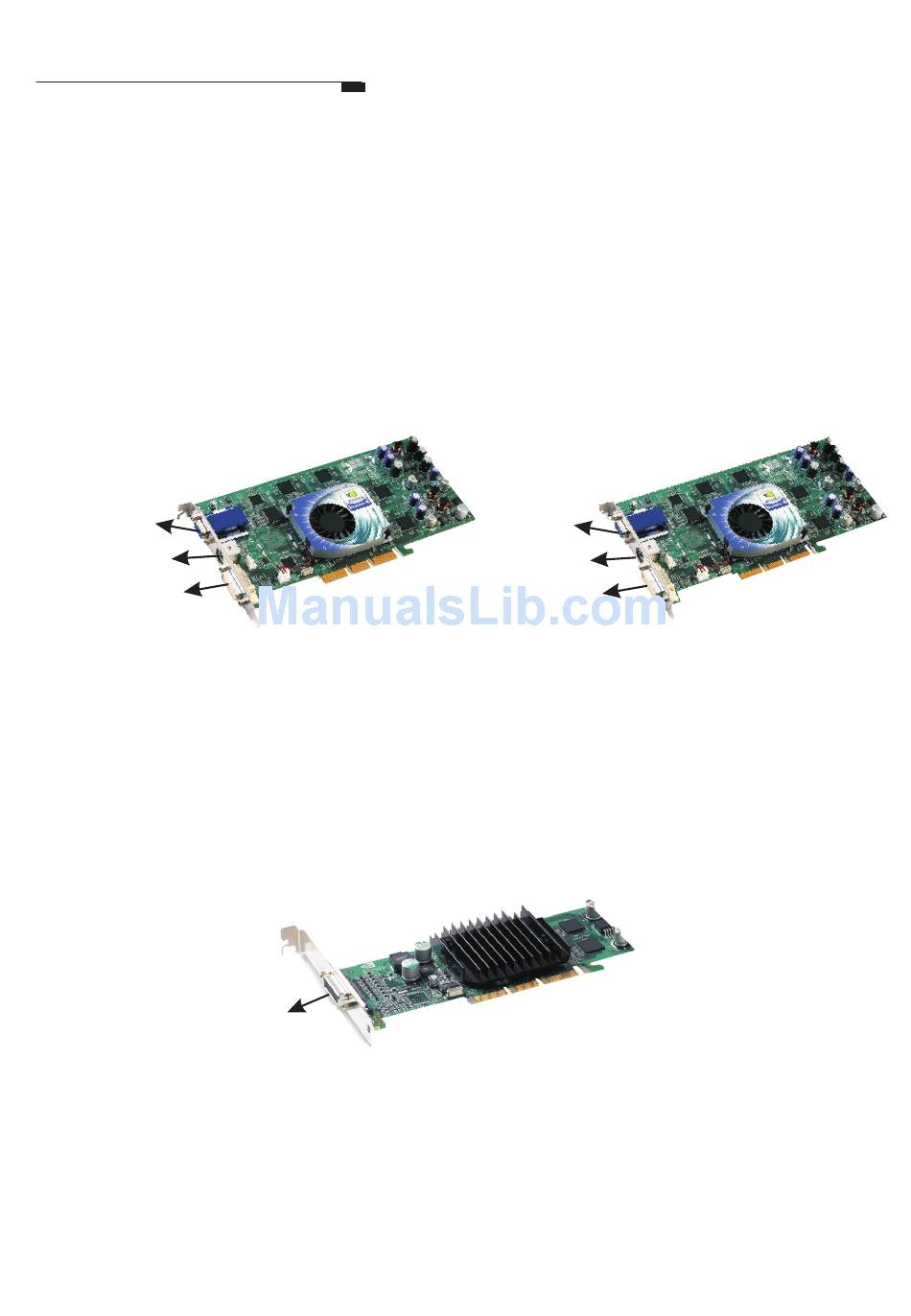

Quadro 700/750 XGL connectors
The Quadro 700/750 XGL has both VGA and DVI-I connectors. These cards
support:
Single VGA output
Dual VGA output ( using a DVI-I to VGA adapter)
Single DVI-I output
VGA+DVI-I output
VGA
connector
Stereo 3D
Connector
DVI-I connector
Quadro 550/580 XGL connectors
The Quadro 550/580 XGL has a single LFH 60-pin connector. Each LFH connector
can support two monitors, using the supplied splitter cable. Your card is shipped
with one DVI-I+DVI-I splitter cable per LFH port and two DVI-I to VGA adapters
per splitter cable.
Quadro 700XGL
LFH 60-pin
Quadro 550/580 XGL
connector
VGA
connector
Stereo 3D
connector
DVI-I connector
Leadtek Quadro Series General Guide
Quadro 750 XGL
(Continued on next page)
