Leadtek Quadro Series Manual page 2

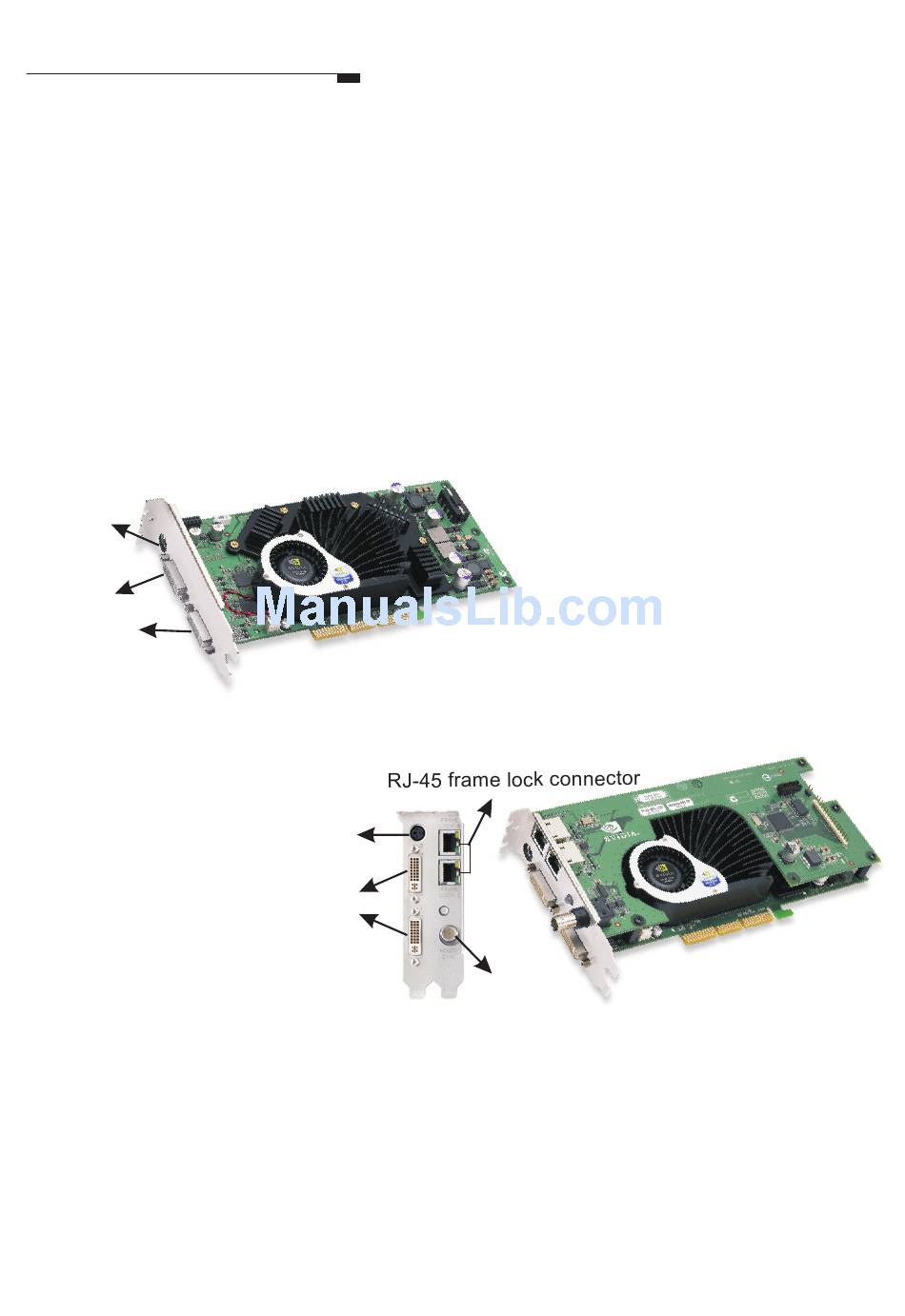

Board Layout
Quadro FX3000/FX3000G connectors
The Quadro FX3000/3000G has dual DVI-I connectors. These cards support:
Single VGA output (using a DVI-I to VGA adapter)
Dual VGA output (using two DVI-I to VGA adapters)
VGA+DVI-I output (using a DVI-I to VGA adapter)
Single DVI-I output
Dual DVI-I output
Workstation stereo sync
connector
DVI-I
connector
Note: 1. Quadro FX3000 &
one adjacent PCI slot but use no power nor data from the
PCI slot.
2. For user's guide of Genlock & Frame Lock function, please
refer to the user's manual in Driver CD.
1
Quadro FX3000
Workstation stereo
sync connector
DVI-I
connector
BNC
genlock
connector
Quadro FX3000G will occupy the AGP and
Quadro FX3000G
