KitchenAid 8053714 Installation Instructions Manual

30" electric freestanding range
Hide thumbs

Advertisement

Quick Links

" Electric
standing
Range

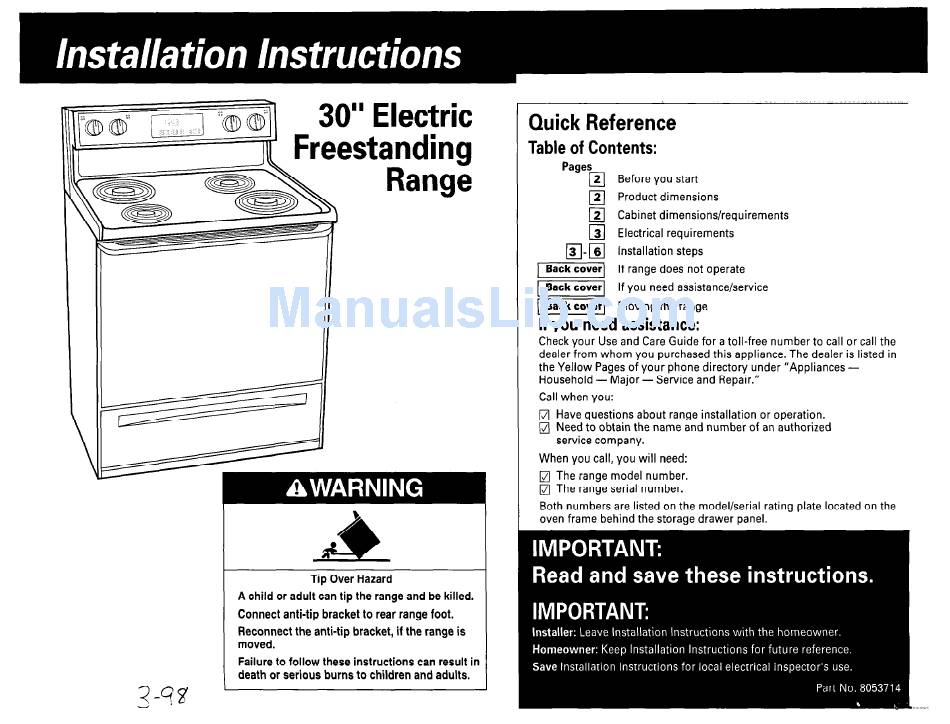

Quick Reference
Table of Contents:
Pages
121
Before you start
cl 2
Product dimensions
121 Cabinet dimensions/requirements
q
Electrical requirements
13-161
Installation steps
II
If range does not operate
[
If you need assistance/service
I]
Moving the range
If you need assistance:
Check your Use and Care Guide for a toll-free number to call or call the
dealer from whom you purchased this appliance. The dealer is listed in
the Yellow Pages of your phone directory under "Appliances -
Household - Major - Service and Repair."
Call when you:
q
Have questions about range installation or operation.
q
Need to obtain the name and number of an authorized
service company.
When you call, you will need:
l7J The range model number.
ILJ The range serial number.
Both numbers are listed on the model/serial rating plate located on the
oven frame behind the storage drawer panel.
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is
moved.
I
Failure to follow these instructions
can result in
death or serious burns to children and adults.
