Summary of Contents for Rollei DF-8
-
Page 2: Table Of Contents
Table of Content What’s in the Box ................4 CHAPTER 1: LET’S GET STARTED! ..........4 Connecting to Power................4 Inserting the memory card or USB Flash Drive........5 Attaching the Back Stand ..............6 Wall Mounting ..................6 Turn On the Digital Picture Frame............6 Buttons and Menu Operation .............7 CHAPTER 2: COMMON TASKS ...........10 CHAPTER 3: PROGRAMMING ............16 CHAPTER 4: OTHER FEATURES ..........21... - Page 3 Now you will be able to view your growing digital picture library in stunning clarity and share great memories with friends and family. To get the most out of your new Rollei product, please read through this entire Owner’s Manual before using. Chapter 1 shows how to get started. Chapter 2...
-
Page 4: What's In The Box

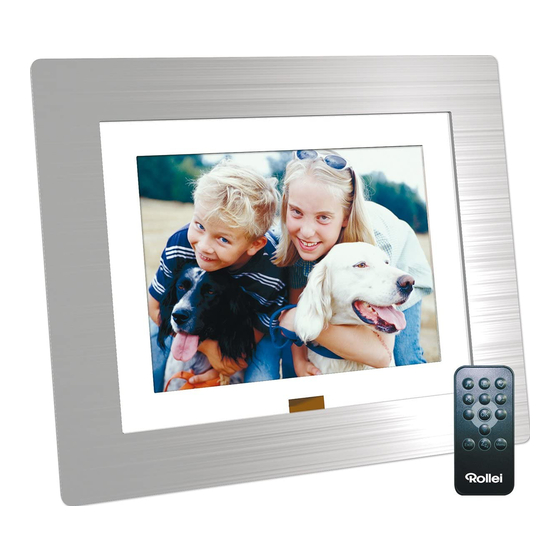

What’s in the Box Included in your new picture frame box: Rollei DF-8 Feelings 8” Digital Picture Frame with 3 pre-installed pictures One Back Stand One Power Adapter (5V / 2A) User Manual CHAPTER 1: LET’S GET STARTED! Connecting to Power Place your digital picture frame on a flat surface. -
Page 5: Inserting The Memory Card Or Usb Flash Drive
Inserting the memory card or USB Flash Drive Your player is equipped with internal memory and pre-loaded photos. The pre-loaded photos automatically play when there is no memory card inserted. To play your own content, insert a memory card containing photos into the card slot shown here on the bottom side of your Player. -
Page 6: Attaching The Back Stand
Helpful Tips • This device supports following memory cards: SD, MMC, xD, MS, MMC+, MS Duo, Compact Flash. Mini SD, Micro SD and MS Duo can be played with an adaptor (not provided). • You may also use a USB Flash Drive in this device. •... -
Page 7: Buttons And Menu Operation
Power It slideshows the 3 pre-installed pictures if there is no memory card inserted or no supported media found. Helpful Tips • Press the power button to turn on the product while it is Placed on stable and level surface in its horizontal (landscape)position •... - Page 8 Menu Exit Press the “Exit” button to bring up the Mode Menu. The options in the Mode Menu are: Favorite, Photo, Clock, and Setup. To escape the Mode Menu, press “Exit” again to return to your pictures. As you navigate the various options on the menu, press the “OK” to select an option.
- Page 9 Left Area: Right Area: Subject/Feature Options (Main Menu) (Sub Menu) Figure 2 The Left Area is the Main Menu that shows available subjects or features such as screen ratio. Use the “Up” and “Down” buttons to go through the subjects/features. The Right Area shows the Sub-Menu options of the Subject/Features.
-
Page 10: Chapter 2: Common Tasks
In these cases, the higher-level menu option goes to the left and lower-level options appear on the right. Figure 3 shows photos in the Main Menu and Play Mode in the Sub-Menu. By pressing “Play Mode”, new options appear in the Sub-Menu and “Play Mode”... - Page 11 Playing the Pre-Installed Pictures Your Rollei DF-8 Feelings digital picture frame comes ready-to-use thanks to the three pre-installed photographs; you don’t need to have your own digital pictures to start using this product. (For the initial use, it will play the pre-installed pictures.) To play these pre-installed pictures, simply turn on the picture frame and make sure there is no memory card inserted in to the unit.
- Page 12 NEW FEATURE: Using the Collage Function Your Rollei DF-8 Feelings digital picture frame has a new feature that allows you to show multiple photographs at the same time. Depending on the background template you choose, you can have up to three different photos on the screen at one time, rotating in a slideshow format.
- Page 13 Photo area I Golf collage area Photo area II Deleting Pictures on Your Memory Card You don’t need a PC to edit or delete pictures on the memory card or USB flash drive in your picture frame. With the memory card or USB flash drive inserted, press the “Menu”...
- Page 14 Adjusting the Brightness and Contrast of Pictures The Rollei DF-8 Feelings picture frame automatically presents your photos the way they were taken. However, depending on the room’s lighting, you may want to manually adjust the brightness and contrast for optimal viewing. Do this by pressing the “Exit”...
- Page 15 Most memory cards and USB flash drives indicate the size of memory on the outside of the card. Your Rollei DF-8 Feelings digital picture frame will tell you how much remaining space is available to add more pictures to your memory card or USB flash drive.
-
Page 16: Chapter 3: Programming
CHAPTER 3: PROGRAMMING Here is a list of the different MENU OPTIONS on your Hitachi digital picture frame. Yes, it’s a long list but the more you play with these functions, the more you’ll be able to get the most out of your new picture frame. In this section, you’ll see the bold heading of the menu item (example: Photo) and a short description of what that selection/feature is about, and the Sub-Menu options (listed here in italics) that are part of this Menu selection. - Page 17 Collage Mother’s day Baseball Golf Fishing Slideshow with Music Yes (preset selection) Ratio Actual Size, Fit Image Slideshow Interval Fast (5 sec) Medium (10 sec) Slow (20 sec) Half Hour Hourly Transition Effect Random (preset selection) Horizontal Blind Vertical Blind Horizontal Split...
- Page 18 Vertical Split Fade Wipe Up Wipe Down Wipe Left Wipe Right Horizontal Lines Vertical Lines Box In Box Out Melt None Favorite You can store pictures in this digital picture frame, thanks to its built-in internal memory. These photos are stored in the “My Favorite” menu option. Clock This menu focuses on three option settings, Clock, Alarm and Smart Sleep.
- Page 19 Alarm Active: Turn on / off alarm Time: Hour : Minute Snooze: 5 minutes, 10 minutes, 15 minutes Sound: Melody 1, Melody 2, Melody 3 Frequency: Once, Every Day, Week Day, Except Sunday Volume: Loud, Medium, Low, Mute Helpful Tips •...
- Page 20 mode. The screen light will dim, the volume will turn lower, the background will display an evening base image (in dark red) and show a big clock; if clock function is not open, then the screen will turn off. In addition to setting the timer, enable the light sensor will also activate the Smart Sleep function by selecting the Sensor item in Active menu.
-
Page 21: Chapter 4: Other Features
CHAPTER 4: OTHER FEATURES Auto Rotation This Player will automatically rotate your pictures to the correct orientation depending on how you place your frame. Lay your frame horizontally and the Player will show your pictures in landscape mode. Set your frame in portrait mode and the pictures will automatically be shown upright. - Page 22 Your PC can now access the external memory card inserted in the photo frame and the internal memory. They will be displayed at “Devices with removable storage” under My Computer. You may now move photo and music files onto them just like you would with any external USB drive or normal hard drive. In this mode, the external memory includes SD, MMC, MS, MMC+, Compact Flash card and MS Duo can be access with an adaptor (not provided).
-
Page 23: Product Specifications
Product Specifications 162.0mm(W) x 121.5mm(H) Effective display 8” Diagonal Dot Pitch 0.2025mm(W) x 0.2025mm(H) Resolution 800 x 600 Image Pixels LCD Screen Brightness 250 cd/m Viewing Angle Horizontal:140° (Left to Right) Vertical: 120° (Up to Down) (CR≥10) Shell Material ABS (Color may be vary) Buttons Function Buttons x 7, Power Button x 1 Supported Cards... -
Page 24: Chapter 5: Frequently Asked Questions
CHAPTER 5: Frequently Asked Questions This product has been set to its standard mode of operations before shipping. If you encountered problems while using the Digital picture frame, please refer to the following table for problems and solutions. Problem Solution Make sure the resolution &... -
Page 25: Chapter 6: Regulatory Issues & Warranty
CHAPTER 6: REGULATORY ISSUES & WARRANTY Regulation & Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
